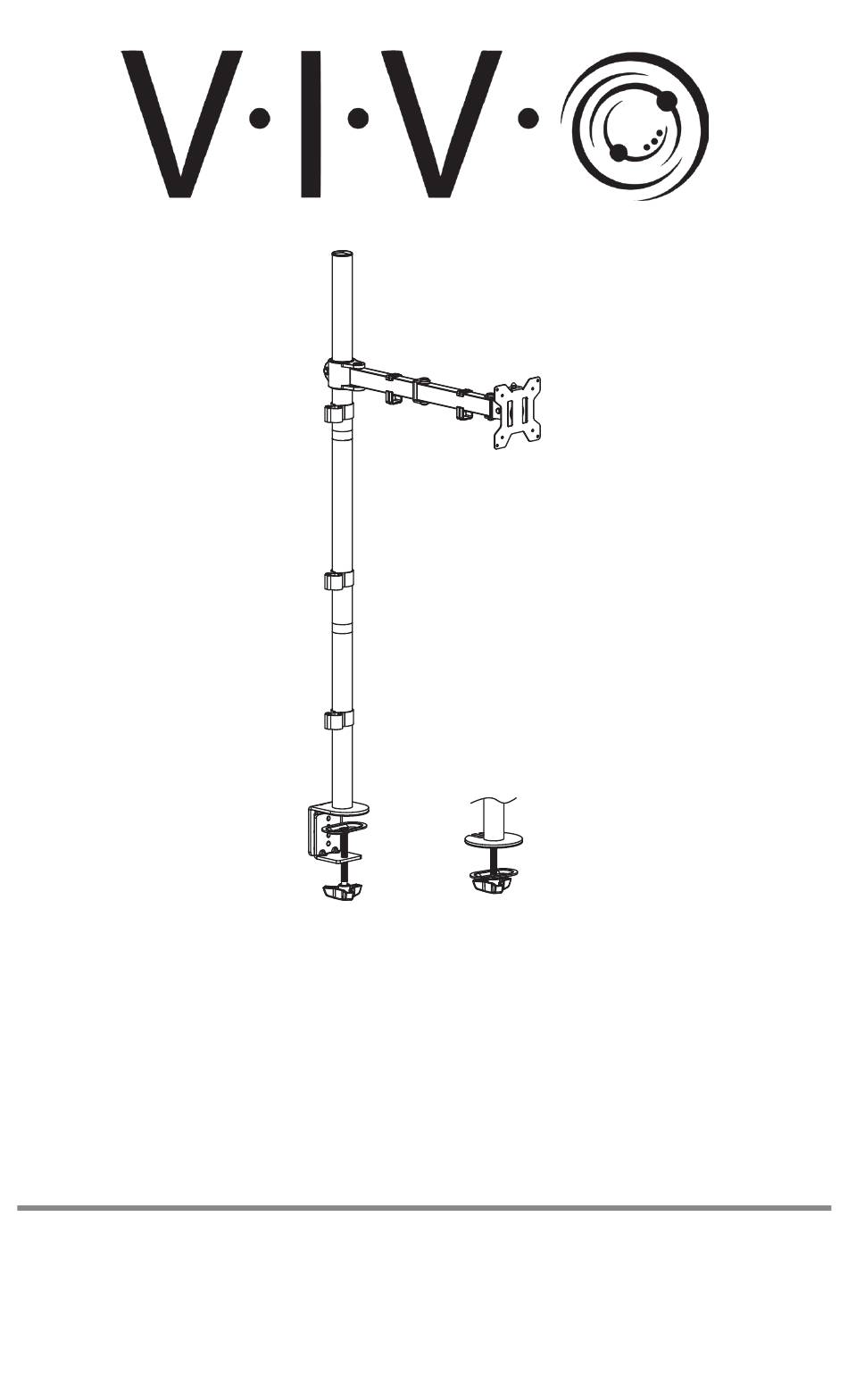

Single Monitor Extra Tall
Desk Mount
STAND-V011 Series
Assembly Manual
Individual Product SKUs
STAND-V011
STAND-V011W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V011 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo STAND-V011 Series

  • Page 1 Single Monitor Extra Tall Desk Mount STAND-V011 Series Assembly Manual Individual Product SKUs STAND-V011 STAND-V011W...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
  • Page 3: Package Contents

    Package Contents A (x1) B (x1) C (x1) D (x1) Lower Pole Middle Pole Top Pole Clamp E (x1) F (x1) G (x1) H (x1) VESA Plate Pole Cap Grommet Plate J (x2) K (x3) I (x1) Arm Cable Clip Pole Cable Clip Soft Pad Included Hardware &...
  • Page 4: Assembly Steps

    Assembly Steps STEP 1 Fully loosen the knob on Clamp (D).
  • Page 5: Option 1: Clamp Installation

    STEP 2 Option 1: Clamp Installation Only for desktops 10-85mm Thick Attach Clamp (D) to Lower Pole (A) using M6x16mm Screws (S-A) and 3mm Allen Wrench (T-A). How to Differentiate Poles? Lower Pole (A) & Upper Pole (C) may look similar. To differentiate, match the hole pattern to images below.
  • Page 6 Option 2: Grommet Installation Only for desktops 10-75mm Thick Using a Phillips screwdriver, remove the screw from Clamp (D) and separate Clamp Bolt (D1) and Clamp Plate (D2) from clamp assembly. Attach Grommet Plate (H) to Lower Pole (A) using M6x16mm Screws (S-A) and 3mm Allen Wrench (T-A).
  • Page 7 Option 2 - Cont’d How to Differentiate Poles? Lower Pole (A) & Upper Pole (C) may look similar. To differentiate, match the hole pattern to images below. The holes on Lower Pole (A) are spaced closer together than Upper Pole (C). Lower Pole (A) Upper Pole (C) Thread Clamp Bolt (D1) with Clamp Plate (D2) through the desktop and into the pole...
  • Page 8 STEP 3 Thread Middle Pole (B) onto Lower Pole (A), then thread Top Pole (C) into Middle Pole. Slide Pole Cable Clips (K) and Arm (E) onto the poles and secure by tightening the back screw using 5mm Allen Wrench (T-B). Insert Pole Cap (G) into Top Pole (C).
  • Page 9 STEP 4 Attach VESA Plate (F) to the back of monitor using appropriate Screws (M-A or M-B). Spacers (M-C) can be used if needed. Tighten using a Phillips screwdriver. Ensure Lip on VESA Plate is on the top. Slide VESA Plate (F) with monitor onto Arm (E) and secure with M6 Security Nut (S-B).
  • Page 10 STEP 5 Route cables through Arm Cable Clips (J) and Pole Cable Clips (K).
  • Page 11 Vertical Tilt Adjustment Loosen the screw behind VESA Plate (F) using 5mm Allen Wrench (T-B) to allow for vertical tilt adjustment. Retighten once at the desired position. Rotational Adjustments Adjust as desired.
  • Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
