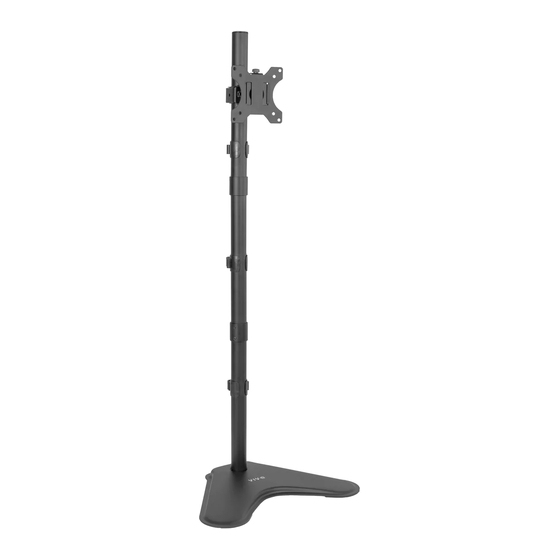

Single Monitor Extra Tall Desk Stand
Instruction Manual
SKU: STAND-V011H
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v011h
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V011H
Summary of Contents for Vivo STAND-V011H
- Page 1 Single Monitor Extra Tall Desk Stand Instruction Manual SKU: STAND-V011H Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v011h GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Failure to do so may result in serious injury. (9.98kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 Attach pole (D) to base (C) using bolts (K) and tighten using 4mm allen key (M). Slide cable management clip (I) over top of pole (D).
- Page 4 STEP 2 Attach bracket (B) to pole assembly and tighten using 6mm allen key (N). STEP 3 OPTION A: Flat Back Monitor Attach VESA plates (A) to back of monitors using bolts (M-A,M-B,M-C,M-D) and washers (M-E). M- E M- A M- C...
- Page 5 STEP 3 (Continued) OPTION B: Curved Back Monitor If bolts are too long, spacers (M-F) may be required. M- E M- B M- D STEP 4 Slide VESA plate (A) into bracket (B) and secure using thumb screw (J).
- Page 6 STEP 5 Adjust tension in monitor bracket with 6mm allen key (N) as shown in diagram. STEP 6 Route cables through cable management clips (I).
- Page 7 STEP 7 Store allen keys (N,M) in cable management clip (I) for future adjustment. Adjust as Desired 180° +45° 360° 360° -45°...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
