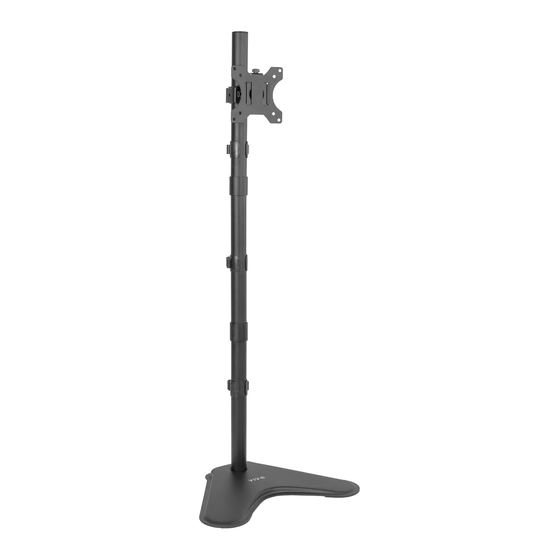

Single Monitor Extra Tall Desk Stand
Instruction Manual
SKU: STAND-V011H
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v011h
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V011H
Summary of Contents for Vivo STAND-V011H
- Page 1 Single Monitor Extra Tall Desk Stand Instruction Manual SKU: STAND-V011H Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v011h GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 17.6lbs (8kg) Failure to do so may result in serious injury. Phillips Screwdriver ASSEMBLY STEPS STEP 1 Secure Lower Pole (D) to Base (C) using M6x12mm Screws (S-B) and 4mm Allen Wrench (T-A). Slide one Cable Clip (G) onto Lower Pole (D).
- Page 4 STEP 2 Thread and secure Middle Pole (E) onto Lower Pole (D) and slide one Cable Clip (G) on. Thread Upper Pole (F) onto Middle Pole (E) and place the remaining Cable Clip (G) onto pole. STEP 3 Slide Bracket (B) onto pole assembly and tighten in desired location with 6mm Allen Wrench (T-B).
- Page 5 STEP 4 Install VESA Plate (A) onto monitor using appropriate Screws (M-A thru M-D), M5 Washer (M-E), and a Phillips screwdriver. If needed, Spacers (M-F) can be used. STEP 5 Place monitor with VESA plate onto Bracket (B). Secure with Thumbscrew (S-A).
- Page 6 STEP 6 To adjust tilt of monitor, loosen side screw on Bracket (B) using 6mm Allen Wrench (T-B). STEP 7 Use Cable Clips (G) to route and manage cables.
- Page 7 STEP 8 Allen Wrenches (T-A, T-B) can be stored in lower Cable Clip (G). Adjust as Desired...
- Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
