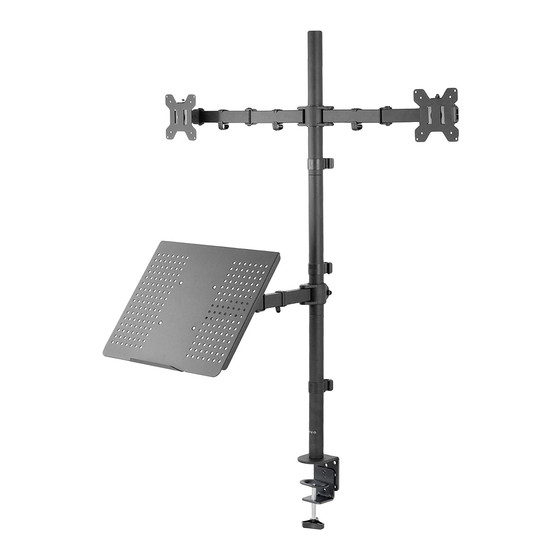

Dual Monitor Extra Tall Desk Mount
with Laptop Holder
Instruction Manual
SKU: STAND-V012L
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v012l
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V012L
Summary of Contents for Vivo STAND-V012L
- Page 1 Dual Monitor Extra Tall Desk Mount with Laptop Holder Instruction Manual SKU: STAND-V012L Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v012l GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Failure to do so may result in serious injury. (9.98kg) PER ARM Phillips Drill Screwdriver ASSEMBLY STEPS PRE-ASSEMBLY Remove the grub screws using the small Allen wrench (o). Thread the Poles (a) together as shown. Re-install the grub screws using the small Allen wrench (o).
- Page 4 STEP 1 (Continued) OPTION B: Existing Grommet Base Installation If the existing grommet hole comes with a plastic protector, remove it before installing the desk mount. Install the Grommet Base Plate (m) to the Pole (a) using M5x14 Bolts (f), and tighten using the small Allen wrench(o), see Figure 4.
- Page 5 STEP 2 Install Swivel Arms (d) to the Pole (a). Fasten the bolt on each arm with the large Allen wrench (o). Attach the Wire Clips (n1, n2) to the pole (a) and Swivel Arms (d). STEP 3 FOR LAPTOP Attach VESA plate (e) to laptop tray (t) using bolts (u) and M4 nuts (v).
- Page 6 STEP 3 (continued) FOR CURVED BACK MONITOR Attach VESA plate (e) to the monitor using bolts (r) and spacers (s). STEP 4 Slide the monitor onto the head of Swivel Arm (d) as shown in the diagram. Install the security Nut (h).
- Page 7 STEP 5 If needed, tighten the tilt joint bolt with the medium Allen wrench (o) to fix the tilt angle. Use the medium Allen wrench (o) to adjust the swivel joints as needed. STEP 6 Manage cables using the wire clips (n1, n2).
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
