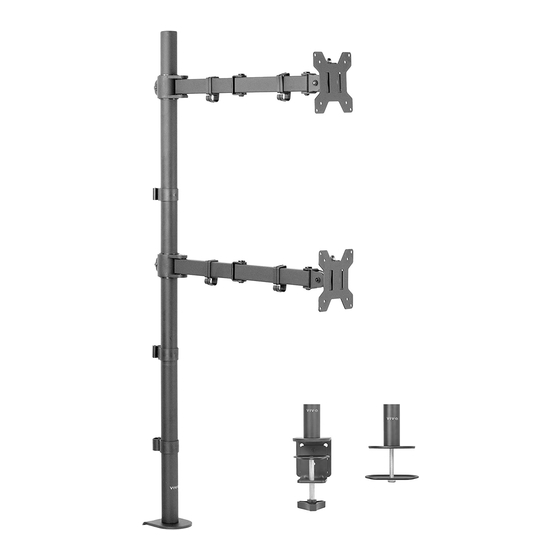

Dual Vertical Monitor Extra Tall Desk Mount
Instruction Manual
SKU: STAND-V012T
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v012t
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V012T
Summary of Contents for Vivo STAND-V012T
- Page 1 Dual Vertical Monitor Extra Tall Desk Mount Instruction Manual SKU: STAND-V012T Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v012t GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22 lbs Failure to do so may result in serious injury. (10 kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS ASSEMBLE POLE SET Remove the grub screws using the 2mm Allen wrench (O). Connect the poles (A) by screwing threaded ends together.
- Page 4 STEP 1 (Continued) Option B: Grommet Base with Existing Hole If existing grommet hole comes with a plastic protector, remove it to ensure a flat surface before installing the desk mount. Install grommet base plate (M) to the pole (A) using x3 M5x14 bolts (F) and tighten with the 3mm Allen wrench (O).
- Page 5 STEP 3 OPTION A: Flat Back Monitor OPTION B: Curved Back Monitor Attach the VESA plates (E) to the monitors with Attach the VESA plates (E) to the monitors with M4x12 thumb bolts (Q). M4x30 bolts (R) and M4 spacers (S). NOTE: Hand tighten screws to avoid stripping plastic screw heads.
- Page 6 STEP 5 Tighten the bolt on the side of the tilt joint with the 5mm Allen wrench (O) to fix the tilt angle. Adjust the swivel joints by tightening or loosening the top bolts using the 5mm Allen wrench (O).
- Page 7 STEP 6 Manage cables and store Allen wrenches (O) in wire clip (N1) for future use.
