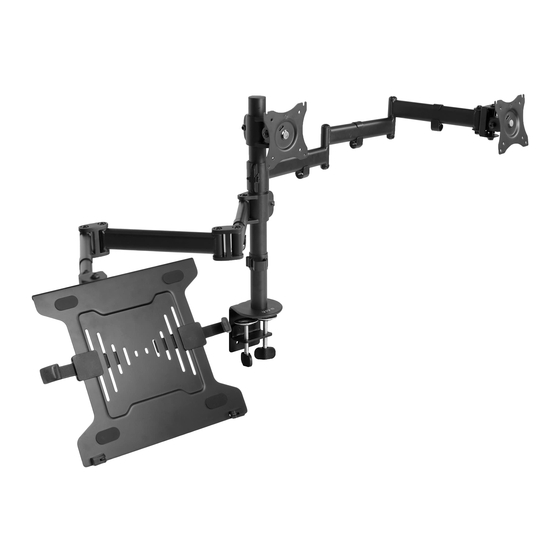

Black Dual Monitor + Single Laptop Desk Mount
Instruction Manual
SKU: STAND-V013L
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v013L
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V013L
Summary of Contents for Vivo STAND-V013L
- Page 1 Black Dual Monitor + Single Laptop Desk Mount Instruction Manual SKU: STAND-V013L Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v013L GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED 15.4 lbs DO NOT EXCEED WEIGHT CAPACITY. Per Arm (7 kg) Failure to do so may result in serious injury. Phillips Drill Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Install Upper Clamp (C) to Pole (G) using M6x16mm Screws (S-B) and 4mm Allen Wrench (T-A). Apply Pads (N) to the underside of Upper Clamp (C) as shown below. - Page 4 STEP 2 (Option A) SIDE LAPTOP MOUNTING: Slide Pole Cable Clip (L) onto the Pole (G). Assemble Laptop Arm (B), Monitor Arm (A), and VESA Bracket (E) on to Pole (G) and secure using 5mm Allen Wrench (T-B).
- Page 5 STEP 2 (Option B) CENTER LAPTOP MOUNTING: Slide Pole Cable Clip (L) onto the Pole (G). Assemble VESA Bracket (E), Monitor Arm (A) and Laptop Arm (A), and on to Pole (G) and secure using 5mm Allen Wrench (T-B). STEP 3 Install Arm Cable Clips (K) to Monitor Arm (A) and Laptop Arm (B).
- Page 6 STEP 4 Install two mounting screws (M-A or M-B) with Washers (M-C) onto top holes of each monitor, leaving a 3mm gap. Slide monitors onto respective Mount Arm (A) and VESA Mount (E) and insert two mounting screws (M-A or M-B) with Washers (M-C) into remaining holes and tighten using a Phillips screwdriver. STEP 5 Place Laptop Arms (H) underneath each side of Laptop Tray (F), aligning square holes in Laptop Arms (H) with the edge and long slot on each side.
- Page 7 STEP 6 Adjust tilt on Mount Arm (A) and Laptop Arm (B) using 6mm Allen Wrench (T-C). To level height of monitors, use 5mm Allen Wrench (T-B). STEP 7 Route cables through Arm Cable Clips (K) and Pole Cable Clip (L). Store 5mm Allen Wrench (T-B) and 6mm Allen Wrench (T-C) in Pole Cable Clip (L) for future adjustments.
