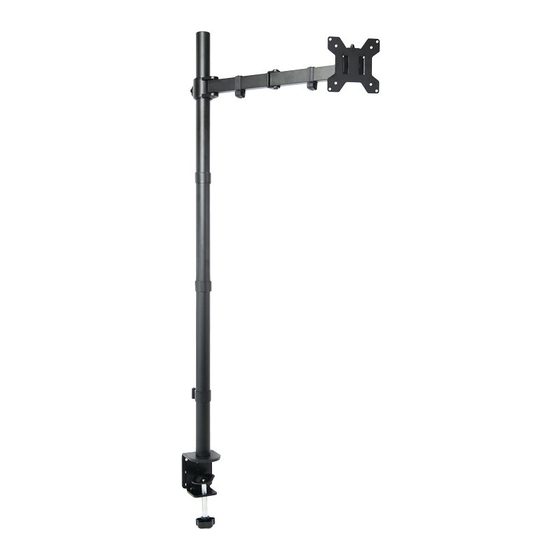

Single monitor extra tall desk mount
Hide thumbs Also See for STAND-V011:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Single Monitor Extra Tall Desk Mount
Instruction Manual
SKU: STAND-V011
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v011
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAND-V011 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo STAND-V011

Summary of Contents for Vivo STAND-V011

  • Page 1 Single Monitor Extra Tall Desk Mount Instruction Manual SKU: STAND-V011 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v011 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...

  • Page 2: Package Contents

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.

  • Page 3: Tools Needed

    TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22 lbs Failure to do so may result in serious injury. (10 kg) Phillips Screwdriver ASSEMBLY STEPS ASSEMBLE POLE SET Thread the Pole Set (A) together as shown below. STEP 1 Option A: Desk Clamp Install Install the clamp brace (C) to the pole (A) using x3 M5x14 bolts (F).
  • Page 4 STEP 1 (Continued) Option B: Grommet Install If desk does not have an existing grommet hole, drill a 3/8” (10mm) diameter hole at the desired position through the mounting surface. Completely disassemble clamp (B) into individual parts. Set knob (B1) and clamp plate (B2) aside for later use.
  • Page 5 STEP 3 OPTION A: Flat Back Monitor OPTION B: Curved Back Monitor Attach the VESA plate (E) to the monitor with Attach the VESA plate (E) to the monitor with M4x12 thumb bolts (N). M4x30 bolts (O) and M4 spacers (P). NOTE: Hand tighten screws to avoid over NOTE: Gently tighten using a screwdriver tightening.
  • Page 6 STEP 5 Tighten the bolt with the supplied Allen wrench (M) to fix the tilt angle. Tighten the bolt with the supplied Allen wrench (M) to tighten and loosen the arm joints.
  • Page 7 STEP 6 Use the supplied Allen key set (M) to make any necessary adjustments. Manage cables and store Allen keys (M) in wire clip (L1) for future use.
  • Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
