Before You Begin
IMPORTANT
• Read and understand this installation guide completely before installation. Failure to follow these
instructions could prevent the valve from working properly.
• It is recommended that the installation be performed by trained and experienced installers.
• This installation guide is subject to change without notice, please contact us to request the most
updated version of this installation guide.
• Observe all local plumbing and building codes.
• Proper pressure must be maintained for the pressure balance valve to work properly. Make sure
water pressure is about the same on both hot and cold water side.
• Product drawings in this installation guide is for illustration purpose only. Actual product may
vary depends on model.
• Always take extra precautions and wear appropriate safety equipment when installing this
product.
• Unpack and inspect the parts from the package for shipping damage and make sure all parts are
included in the package. Keep the product in its package until you are ready to install.
Luxier

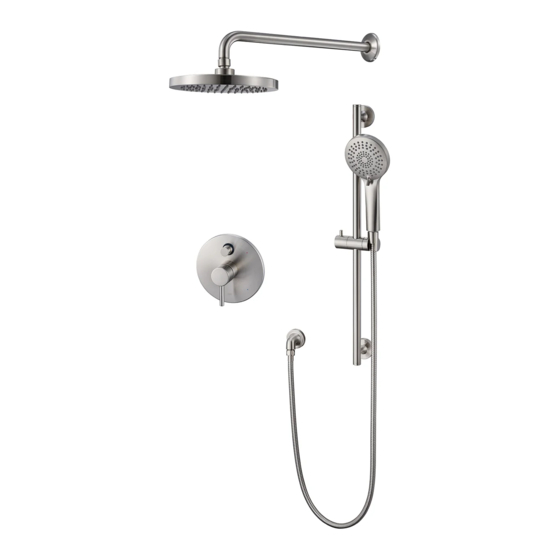

Rainfall Shower System with Slide Bar
SS-D02-TB (Brushed Nickel)
SS-D02-TC (Chrome)
SS-D02-TG (Brushed Gold)
SS-D02-TM (Matte Black)
SS-D02-TO (Oil Rubbed Bronze)
Specifications:
Shower head flow rate: maximum 1.8 gpm at 80 psi
Plumbing connection: standard 1/2" pipe fitting
1
SS-D02 Rev. A 02/2024
Advertisement
Table of Contents
Related Manuals for Luxier SS-D02-TB
Summary of Contents for Luxier SS-D02-TB
- Page 1 Rainfall Shower System with Slide Bar SS-D02-TB (Brushed Nickel) SS-D02-TC (Chrome) SS-D02-TG (Brushed Gold) SS-D02-TM (Matte Black) SS-D02-TO (Oil Rubbed Bronze) Specifications: Shower head flow rate: maximum 1.8 gpm at 80 psi Plumbing connection: standard 1/2” pipe fitting Before You Begin IMPORTANT •...
-
Page 2: Tools You May Need
Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product at no charge; (2) issue a refund of the purchase price paid for the product (Valid within 30 days from the date of purchase);... -
Page 3: Parts List
09 Stem Extension 24 Hand Shower Hose 10 Threaded Nipple 25 Slide Bar 11 Escutcheon 26 Setscrew 12 Diverter Sleeve 13 1 in. Diverter Stem Extension 14 2 in. Diverter Stem Extension 15 Diverter Pull Knob Luxier SS-D02 Rev. A 02/2024... - Page 4 Dimensions 2.53” 14” 4.27” 7.89” 26.34” 2.17” 7.31” 24” 3” * Drawings not to Scale. All Measurements are Approximate * Luxier SS-D02 Rev. A 02/2024...
-
Page 5: Installation
(Fig. C) WARNING: Exposure to high temperature will damage the diverter cartridge, pressure balance cartridge and stop valves. Remove these parts before soldering. WARNING: Remove diverter cartridge, stop valves, pressure balance cartridge before soldering Luxier SS-D02 Rev. A 02/2024... - Page 6 6. Diverter test (Fig. F). Water should run from the hand shower outlet by default. Pull the diverter to direct water to the overhead shower outlet. The diverter will reset itself after the water is turned off. Luxier SS-D02 Rev. A 02/2024...
- Page 7 PTFE tape to both ends of the shower arm. Attach the shower arm to the pipe and slide the flange onto the wall. Attach the shower head. NOTE: DO NOT over tighten the connections. Luxier SS-D02 Rev. A 02/2024...
- Page 8 Outlet Adapter. Apply some pipe sealant to the threads of the pipe in the wall. Use a 12 mm hex wrench to install the adapter to the pipe. (Fig. O) 14. Install the Wall Connector. Complete the installation by installing the Hand Shower, and Hand Shower Hose as shown in Fig. P. Luxier SS-D02 Rev. A 02/2024...
-
Page 9: Operation
5 minutes in the solution and clean it with a soft brush. Thoroughly wash off any cleaning solution and debris on the cartridge. 5. After cleaning, follow the above steps in reverse order to assemble the valve. Luxier SS-D02 Rev. A 02/2024... - Page 10 Max. temperature adjustment: 120° F • There are 11 lines on the adjustment collar representing temperature ranges from 100° F to 120° F * Specifications provided by Hain-Yo Enterprises Co., Ltd Reference Marker Reference Marker Luxier SS-D02 Rev. A 02/2024...
-
Page 11: Troubleshooting
• When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. • After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Luxier SS-D02 Rev. A 02/2024...
