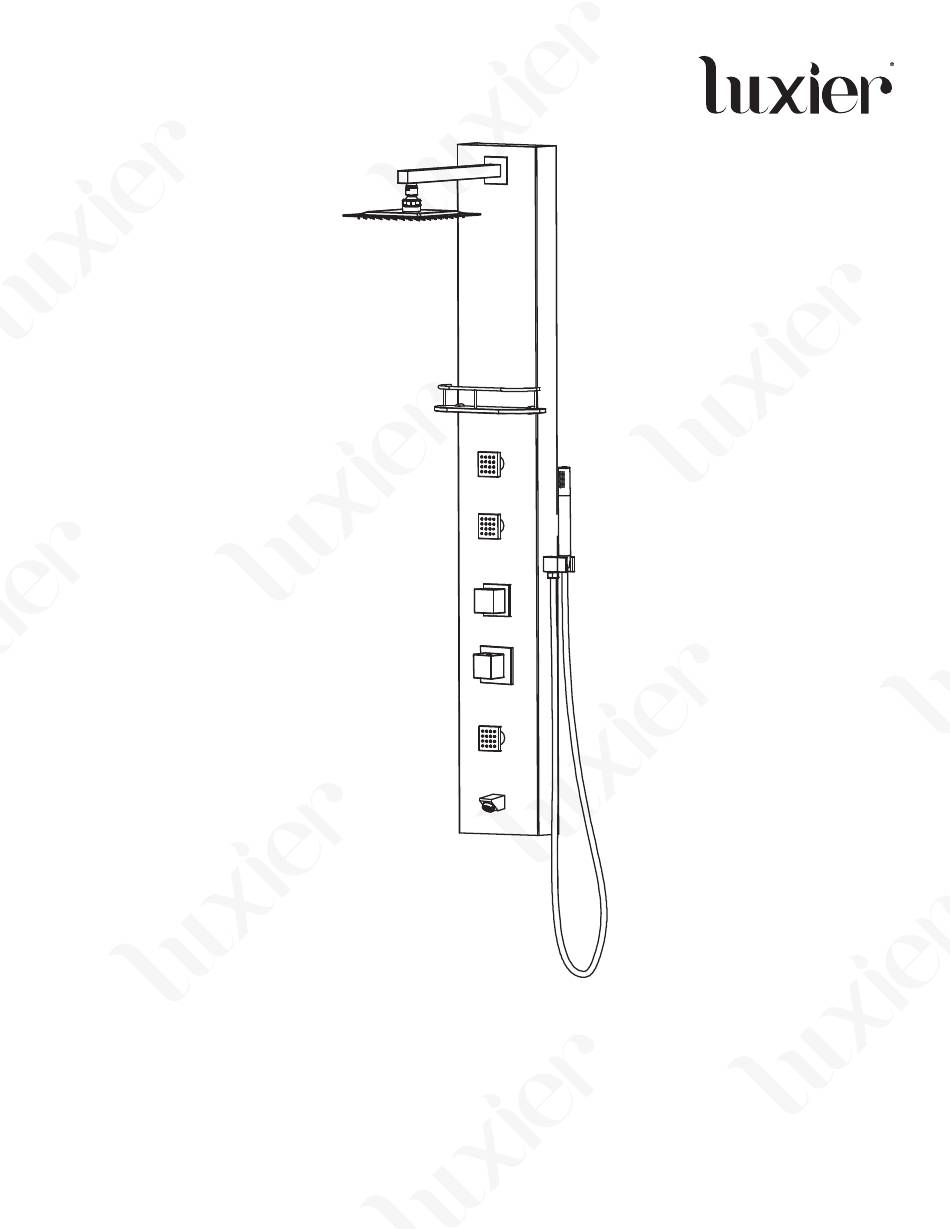

Features
- Stunning stylish European inspired design
- Durable stainless steel frame construction
- Square stainless thin profile shower head
- 3 stage shower functions (Rainfall, Massage Spray, Hand Shower)
- Contemporary brass hand shower
- Tempered glass shelf
* Proper water pressure is required for simultaneous operations
Luxier
1
SP37-CEC
SP37-CEC Rev. A 102019
Advertisement
Related Manuals for Luxier SP37-CEC
Summary of Contents for Luxier SP37-CEC
- Page 1 - Square stainless thin profile shower head - 3 stage shower functions (Rainfall, Massage Spray, Hand Shower) - Contemporary brass hand shower - Tempered glass shelf * Proper water pressure is required for simultaneous operations Luxier SP37-CEC Rev. A 102019...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
- Page 3 (NOTE: additional parts such as 1/2” angle valves, 5/8” rubber grommets, and other parts are required but not included with this product.) Refer to Appendix A for detail diagram for the outlet box. Luxier SP37-CEC Rev. A 102019...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Luxier SP37-CEC Rev. A 102019...
-
Page 5: Technical Data
70 mm 180 mm 13.98” 2.76” 7.09” 1,400 mm 55.11” 815 mm 32.09” 550 mm 21.65” 315.5 mm 12.42” 206.5 mm 54 mm 8.13” 2.13” * Drawings not to scale. All measurements are approximate * Luxier SP37-CEC Rev. A 102019... - Page 6 10. Hand Shower Supply Connector 11. Rubber Gasket 12. Hand Shower 13. Hand Shower Cradle 14. Rubber Gasket x 2 15. Hand Shower Hose 16. Screw x 4 17. Mounting Bracket x 2 18. Wall Anchors x 4 Luxier SP37-CEC Rev. A 102019...
-
Page 7: Installation
Insert the anchors into the wall. (NOTE: Before drilling the tiles, use a small piece of painters tape or masking tape over the drill area. This will prevent dam- 1” ages to the tiles) Luxier SP37-CEC Rev. A 102019... - Page 8 After the shower panel is set properly on the wall, apply silicon sealant on both sides of the shower panel to prevent the unit from moving. (NOTE: Do not seal the bottom of the panel.) Luxier SP37-CEC Rev. A 102019...
- Page 9 Tighten the set screws to secure the glass shelf. (WARNING: Do not place heavy objects on the glass shelf. Do not excess weight limit of 2 pounds when placing objects on the shelf) Luxier SP37-CEC Rev. A 102019...
-
Page 10: Operation
8. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 9. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP37-CEC Rev. A 102019... -
Page 11: Troubleshooting
The shower panel is also equipped with removable fl ow restriction devices in accordance with the water conservation regulations. The devices can be removed to test the functionality of the shower panel if needed. Luxier SP37-CEC Rev. A 102019... - Page 12 (NOTE: When inserting the thermostatic valve, make sure the marking on the tip of the valve is pointing up at 12 o’clock position as seen in Figure E) 10. Turn on water supply to the unit and test the system for leak. Luxier SP37-CEC Rev. A 102019...
- Page 13 6. Once the temperature is set, install the Temperature Control Knob #3. (NOTE: The Safety Pin should be pointing at 12 o’clock) and tighten setscrew #2 Fig. F Fig. H Safety Pin Chrome Trim with Temperature Scale (4) Temperature Limit Stop (5) Termostatic Valve (7) Fig. G Luxier SP37-CEC Rev. A 102019...
- Page 14 NOTE: Luxier is not affi liated with the owner of the video. The purpose of this video is meant to provide a visual concept of the shower outlet box to speed up the installation process. All images are copyright to their respective owners.
