- Page 1 Luxier SP03-AL SP03-AL Rev. A1 022014 Luxier...
- Page 2 Luxier USA Customer Care Department will decide whether to repair or replace your product, issue a refund, or issue a credit. Luxier USA is dedicated to providing the best customer service. All emails will be replied within one (1) business day Attention •...

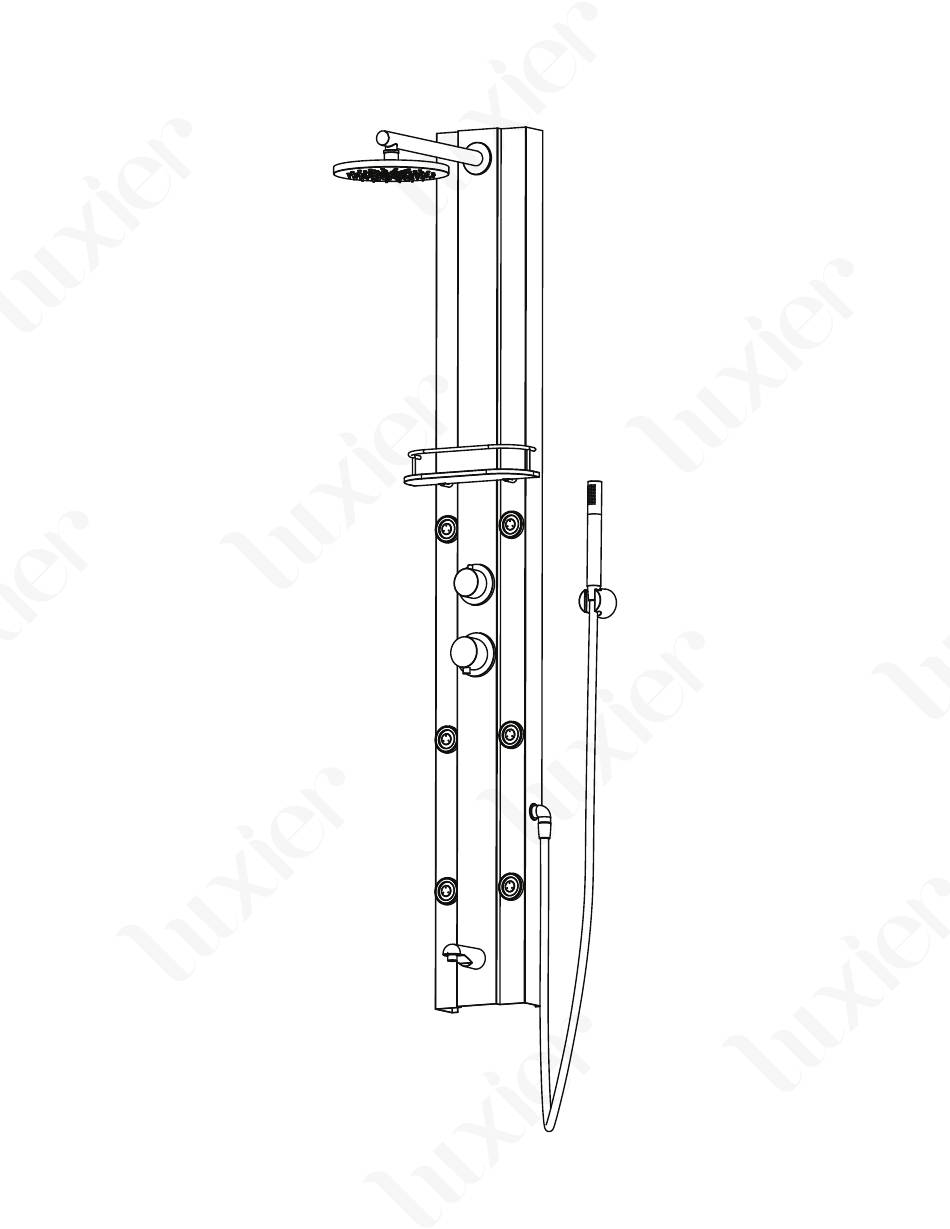

- Page 3 - Tempered glass shelf 180mm 350mm 7.09” 13.78” 1,500mm 59.06” 838mm 32.99” 260mm 10.24” Technical Data Recommended Operating Pressure: 58 PSI Hand Shower: 1.88 gpm Body Jets: 2.03 gpm Overhead Rainfall Shower: 1.93 gpm Tub Spout: 1.98 gpm SP03-AL Rev. A1 022014 Luxier...
- Page 4 04. Glass Shelf 05. Hand Shower 06. Hand Shower Cradle 07. Hose 08. Water Supply Connector 09. Gasket 10. Hand Shower Connector 11. Screws X 6 12. Mounting Brackets X 2 13. Wall Anchors X 6 SP03-AL Rev. A1 022014 Luxier...
-
Page 5: Installation
Mark the positions of the 2 brackets on the wall and set a side the panel. (NOTE: The distance between the two brackets should be 838mm 838mm or 32.99”) 32.99” SP03-AL Rev. A1 022014 Luxier... - Page 6 6. Apply thread sealant tape to the threading on the shut off valves before connect both hot and cold water supply hoses to the valves. Turn on the valves and check all connections for possible leaks. SP03-AL Rev. A1 022014 Luxier...
- Page 7 8. Attache shower head. Apply some (NOTE: PTFE tape on the thread to prevent leaking) 9. Connect hand shower hose to the main panel body. Install the rubber washer. SP03-AL Rev. A1 022014 Luxier...
- Page 8 Tighten the set screws to secure the glass shelf. (WARNING: Do not place heavy objects on the glass shelf. Do not excess weight limit of 2 pounds when placing objects on the shelf) SP03-AL Rev. A1 022014 Luxier...
-
Page 9: Operation
6. When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. 5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. SP03-AL Rev. A1 022014 Luxier...
