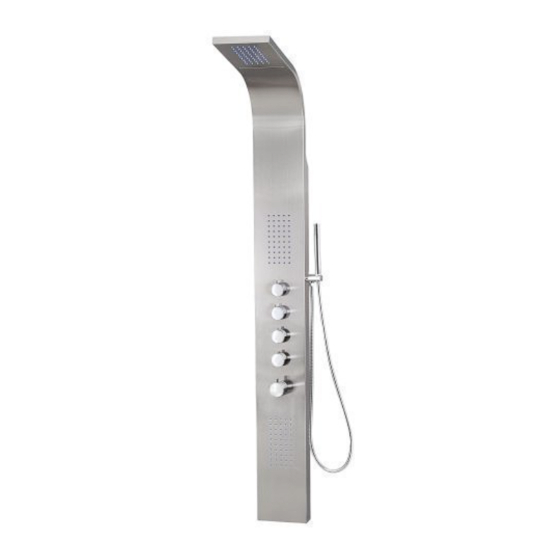

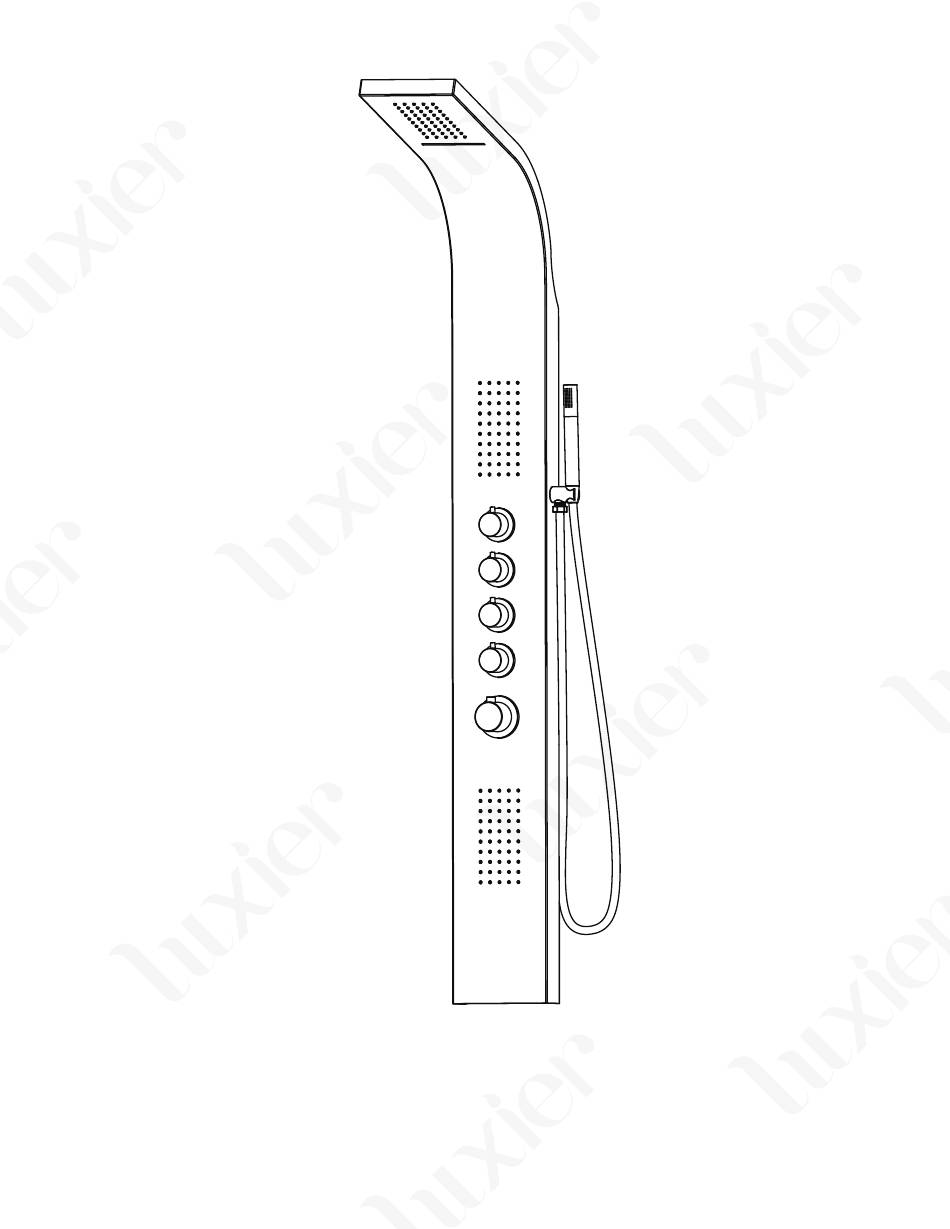

Luxier SP04-SS
Features
- Stunning stylish European inspired design
- Elegant durable stainless steel frame construction
- 4 stage shower functions (Rainfall, Waterfall, Massage Spray, Hand Shower)
- Independent valve control for each of the shower functions
- All shower functions can be turned on at the same time
- Thermostatic valve control minimize the chance of scald
- Contemporary brass hand shower
Luxier
1
SP04-SS-D Rev. B 092016

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP04-SS and is the answer not in the manual?

Questions and answers

Related Manuals for Luxier SP04-SS

Summary of Contents for Luxier SP04-SS

  • Page 1 - Independent valve control for each of the shower functions - All shower functions can be turned on at the same time - Thermostatic valve control minimize the chance of scald - Contemporary brass hand shower Luxier SP04-SS-D Rev. B 092016...
  • Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
  • Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Luxier SP04-SS-D Rev. B 092016...
  • Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Reference Model Height is 5’ 8” Luxier SP04-SS-D Rev. B 092016...
  • Page 5 Body Jets: 3.06 gpm Overhead Jets: 2.85 gpm Overhead Waterfall: 3.04 gpm Combined: 3.62 gpm 180mm 499mm 7.09” 19.65” 1,600mm 62.99” 850mm 760mm 33.46” 29.92” 480mm 18.9” 380mm 14.96” 60mm 2.36” *All Measurements are Approximate Luxier SP04-SS-D Rev. B 092016...
  • Page 6 03. Hand Shower 04. Hand Shower Cradle 05. Rubber Washer 06. Hand Shower Hose 07. Hand Shower Water Connector 08. Gasket 09. Screws X 4 10. Mounting Brackets X 2 11. Wall Anchors X 4 Luxier SP04-SS-D Rev. B 092016...

  • Page 7: Installation

    Insert the anchors into the wall. (NOTE: Before installing the brackets, use a small piece of painters tape or masking tape over the drill area to prevent damages to the tile) 1” Luxier SP04-SS-D Rev. B 092016...
  • Page 8 Make sure the unit is seated prop- erly. Apply silicon sealant on left and right sides of the shower panel. (NOTE: Do not seal the bottom of the panel, this will allow any possible future leaks to drain out the panel) Luxier SP04-SS-D Rev. B 092016...
  • Page 9 Installation (cont.) 7. Connect hand shower hose to the main panel body. Install the screen washer to pre- vent debris from entering hose. 8. Attach the hand shower to the hose. Install the rubber washer. Luxier SP04-SS-D Rev. B 092016...

  • Page 10: Operation

    5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 6. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP04-SS-D Rev. B 092016...
