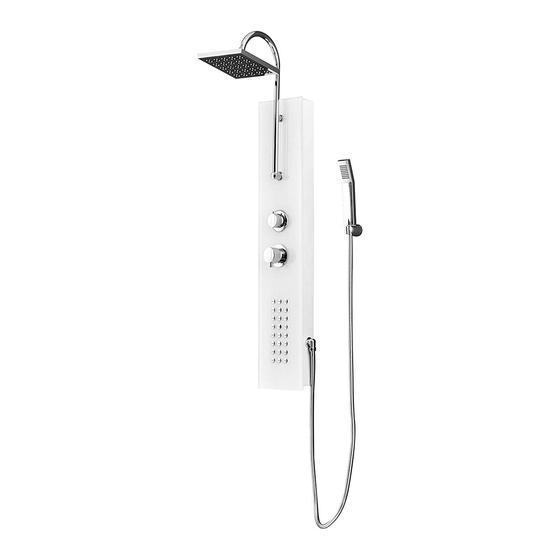

- Page 1 Luxier SP02-GS Luxier SP02-GS Rev. A 122013...
- Page 2 Luxier USA Customer Care Department will decide whether to repair or replace your product, issue a refund, or issue a credit. Luxier USA is dedicated to providing the best customer service. All emails will be replied within one (1) business day Attention •...

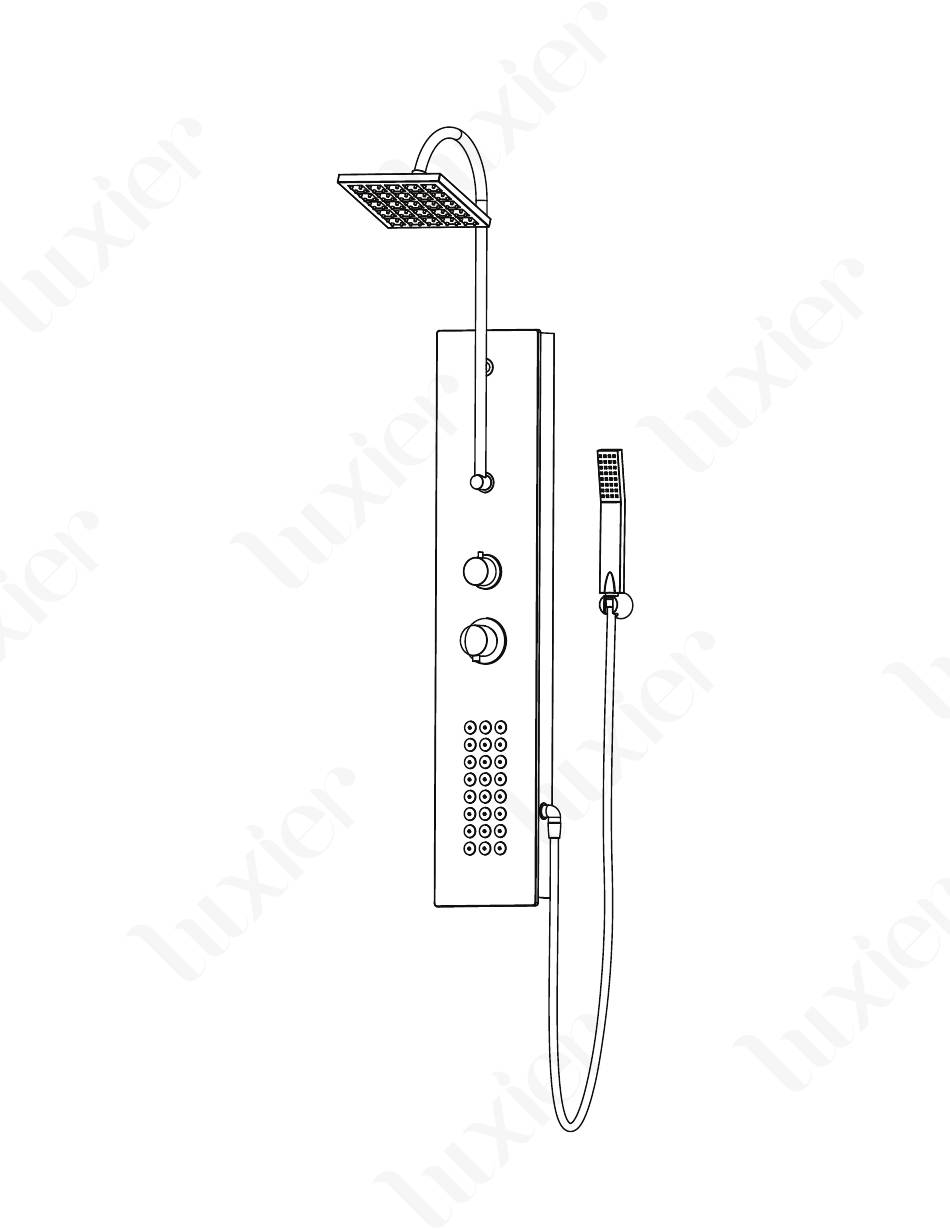

- Page 3 - 8” chrome square ABS rainfall shower head - 24 horizontal spray nozzle jets 254mm 10” 200mm 7.87” 480mm 19” 1,000mm 39.37” 680mm 26.77” 105mm 4.13” Technical Data Recommended Operating Pressure: 50 - 80 PSI Luxier SP02-GS Rev. A 122013...
- Page 4 03. Shower Head 04. Hand Shower 05. Hand Shower Cradle 06. Hand Shower Hose 07. Hose Connector 08. Gasket 09. Water Supply Connector 10. Screws x 6 11. Mounting Brackets x 2 12. Wall Anchors x 6 Luxier SP02-GS Rev. A 122013...
- Page 5 Mark the positions of the 2 brackets on the wall and set a side the panel. (NOTE: The distance between the two brackets should be 680mm 26.77” or 680mm) 26.77” Luxier SP02-GS Rev. A 122013...
- Page 6 6. Apply thread sealant tape to the threading on the shut off valves before connect both hot and cold water supply hoses to the valves. Turn on the valves and check all connections for possible leaks. Luxier SP02-GS Rev. A 122013...
- Page 7 (NOTE: Install the rubber washer to prevent leak.) 9. Place the hand shower cradle at desired location (preferably on the right side of the panel) and follow step 4 when drilling and mounting the cradle. Luxier SP02-GS Rev. A 122013...
- Page 8 6. When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. 5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Luxier SP02-GS Rev. A 122013...
