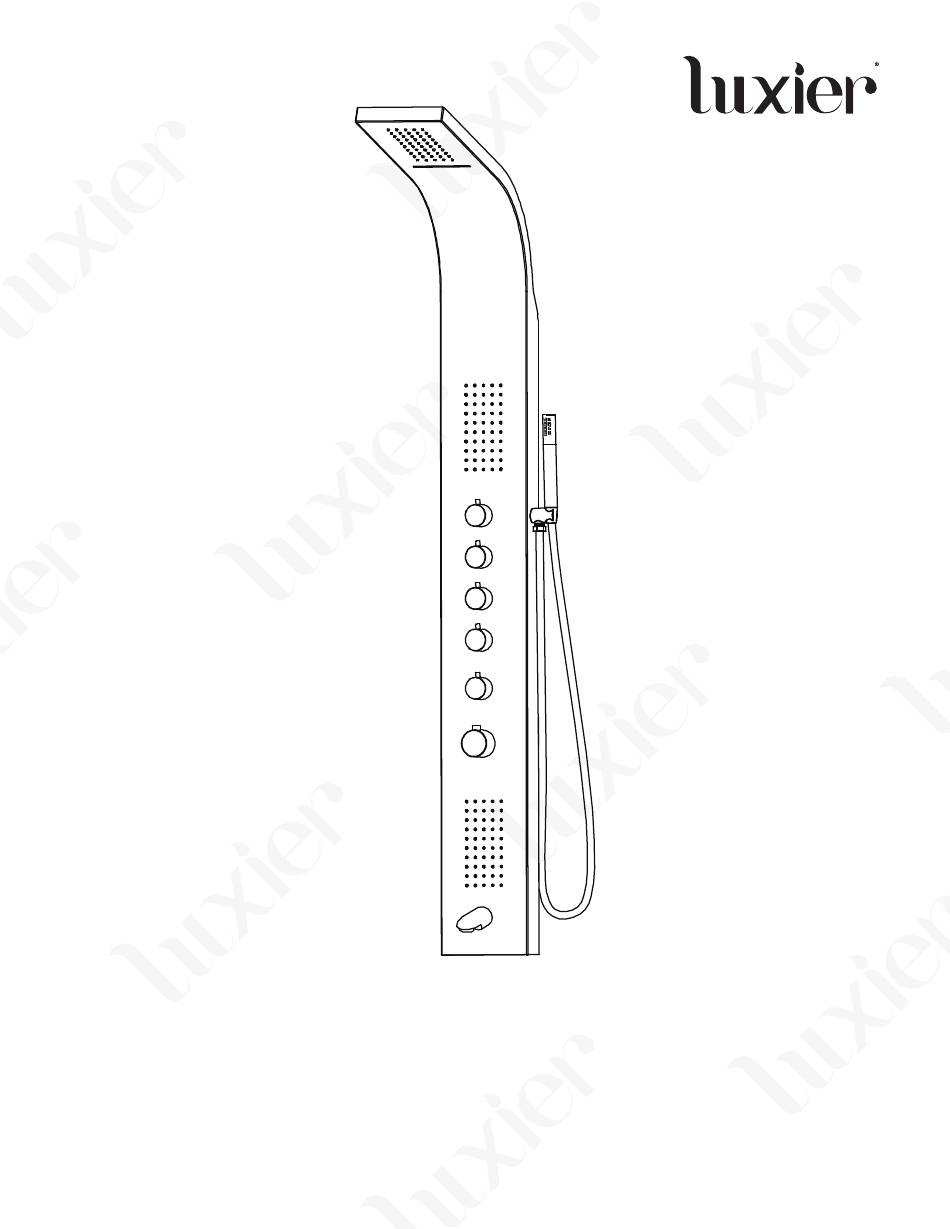

Luxier SP04-SS-TB
Features
- Stunning stylish European inspired design
- Elegant durable stainless steel frame construction
- 5 stage shower functions (Rainfall, Waterfall, Massage Spray, Hand Shower, Tub Spout)
- Independent valve control for each of the shower functions
- Simultaneous operation of all shower functions*
- Thermostatic valve control minimize the chance of scalding
- Contemporary brass hand shower
* Proper water pressure is required for simultaneous operations
Luxier
1
SP04-SS-TB Rev. B 022018
Advertisement
Related Manuals for Luxier SP04-SS-TB
Summary of Contents for Luxier SP04-SS-TB
- Page 1 - Independent valve control for each of the shower functions - Simultaneous operation of all shower functions* - Thermostatic valve control minimize the chance of scalding - Contemporary brass hand shower * Proper water pressure is required for simultaneous operations Luxier SP04-SS-TB Rev. B 022018...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
- Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Luxier SP04-SS-TB Rev. B 022018...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Luxier SP04-SS-TB Rev. B 022018...
- Page 5 National Plumbing Code of Canada IAPMO IGC 154-2016 Recommended Operating Pressure: 60 PSI 180mm 495mm 7.09” 19.49” 1,600mm 62.99” 800mm 850mm 31.5” 33.46” 335mm 420mm 13.19” 16.54” 84.5mm 3.33” 62mm *All Measurements are Approximate 2.44” Luxier SP04-SS-TB Rev. B 022018...
- Page 6 06. Hand Shower Hose 07. Hand Shower Water Connector 08. Gasket 09. Screws x 4 10. Mounting Brackets x 2 11. Wall Anchors x 4 12. Valve Stems x 4 13. Thermostatic Valve 14. Check Valves x 2 Luxier SP04-SS-TB Rev. B 022018...
- Page 7 Use a piece of painters tape or masking tape over the drill area to prevent damages to the tiles. (NOTE: The distance between the two brackets should be 800mm or 31.5”) 800mm 31.50” Luxier SP04-SS-TB Rev. B 022018...
- Page 8 The range of the control knob is limited in both clockwise and counter-clockwise directions. DO NOT force to turn the knob pass its limit. Overturning the control will damage the thermostatic valve making it fail to regulate temperature. Luxier SP04-SS-TB Rev. B 022018...
- Page 9 DO NOT force to turn the knob pass its limit. Overturning the control will damage the thermostatic valve making it fail to regulate temperature. Water Functions Overhead Jets Handheld Shower Horizontal Body Jets Overhead Waterfall Luxier SP04-SS-TB Rev. B 022018...
- Page 10 The check valve should open when the center is pushed with tip of a pen or a cotton swab. The check valve should close automatically when no external pressure is applied to the center part of the valve. Luxier SP04-SS-TB Rev. B 022018...
- Page 11 (NOTE: When inserting the thermostatic valve, make sure the marking on the tip of the valve is pointing up at 12 o’clock position as seen in Figure E) 10. Turn on water supply to the unit and test the system for leak. Luxier SP04-SS-TB Rev. B 022018...
- Page 12 6. Once the temperature is set, install the Temperature Control Knob #3. (NOTE: The Safety Pin should be pointing at 12 o’clock) and tighten setscrew #2 Fig. F Fig. H Safety Pin Chrome Trim with Temperature Scale (4) Temperature Limit Stop (5) Termostatic Valve (7) Fig. G Luxier SP04-SS-TB Rev. B 022018...
