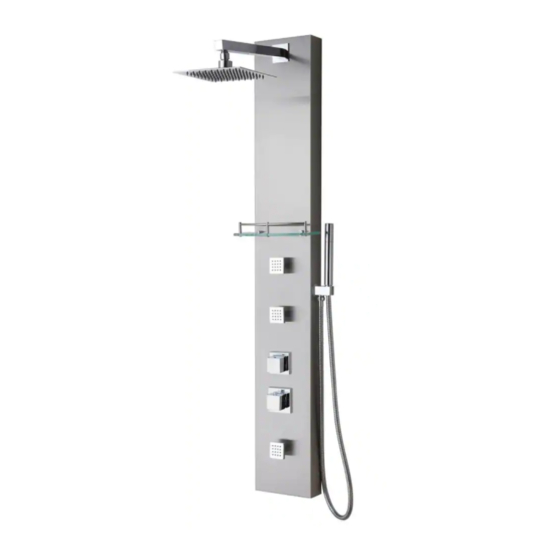

Features
- Stunning stylish European inspired design
- Durable stainless steel frame construction
- Square stainless thin profile shower head
- 3 stage shower functions (Rainfall, Massage Spray, Hand Shower)
- Contemporary brass hand shower
- Tempered glass shelf
* Proper water pressure is required for simultaneous operations
Luxier
1
SP21-CEC
SP21-CEC Rev. B 102019
Advertisement
Table of Contents
Related Manuals for Luxier SP21-CEC
Summary of Contents for Luxier SP21-CEC
- Page 1 - Square stainless thin profile shower head - 3 stage shower functions (Rainfall, Massage Spray, Hand Shower) - Contemporary brass hand shower - Tempered glass shelf * Proper water pressure is required for simultaneous operations Luxier SP21-CEC Rev. B 102019...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
- Page 3 (NOTE: additional parts such as 1/2” angle valves, 5/8” rubber grommets, and other parts are required but not included with this product.) Refer to Appendix A for detail diagram for the outlet box. Luxier SP21-CEC Rev. B 102019...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Luxier SP21-CEC Rev. B 102019...
-
Page 5: Technical Data
California. To learn more about this water saving feature, please contact our customer service department.) 180mm 355mm 7.1” 13.98” 1,400mm 55.11” 815mm 32.09” 635mm 25” 290mm 210mm 11.42” 8.27” 70mm 2.76” * Drawings not to scale. All measurements are approximate * Luxier SP21-CEC Rev. B 102019... -
Page 6: Parts List
08. Hand Shower Hose 09. Water Supply Hose 10. Check Valves 11. Thermostatic Valve 12. Diverter 13. Locking Nut 14. Gasket 15. Locking Nut 16. Screws X 4 17. Mounting Brackets X 2 18. Wall Anchors X 4 Luxier SP21-CEC Rev. B 102019... -
Page 7: Installation
Insert the anchors into the wall. (NOTE: Before drilling the tiles, use a small piece of painters tape or masking tape over the drill area. This will prevent dam- 1” ages to the tiles) Luxier SP21-CEC Rev. B 102019... - Page 8 After the shower panel is set properly on the wall, apply silicon sealant on both sides of the shower panel to prevent the unit from moving. (NOTE: Do not seal the bottom of the panel.) Luxier SP21-CEC Rev. B 102019...
- Page 9 Tighten the set screws to secure the glass shelf. (WARNING: Do not place heavy objects on the glass shelf. Do not excess weight limit of 2 pounds when placing objects on the shelf) Luxier SP21-CEC Rev. B 102019...
-
Page 10: Operation
8. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 9. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP21-CEC Rev. B 102019... -
Page 11: Troubleshooting
The shower panel is also equipped with removable fl ow restriction devices in accordance with the water conservation regulations. The devices can be removed to test the functionality of the shower panel if needed. Luxier SP21-CEC Rev. B 102019... - Page 12 (NOTE: When inserting the thermostatic valve, make sure the marking on the tip of the valve is pointing up at 12 o’clock position as seen in Figure E) 10. Turn on water supply to the unit and test the system for leak. Luxier SP21-CEC Rev. B 102019...
- Page 13 6. Once the temperature is set, install the Temperature Control Knob #3. (NOTE: The Safety Pin should be pointing at 12 o’clock) and tighten setscrew #2 Fig. F Fig. H Safety Pin Chrome Trim with Temperature Scale (4) Temperature Limit Stop (5) Termostatic Valve (7) Fig. G Luxier SP21-CEC Rev. B 102019...
- Page 14 NOTE: Luxier is not affi liated with the owner of the video. The purpose of this video is meant to provide a visual concept of the shower outlet box to speed up the installation process. All images are copyright to their respective owners.
