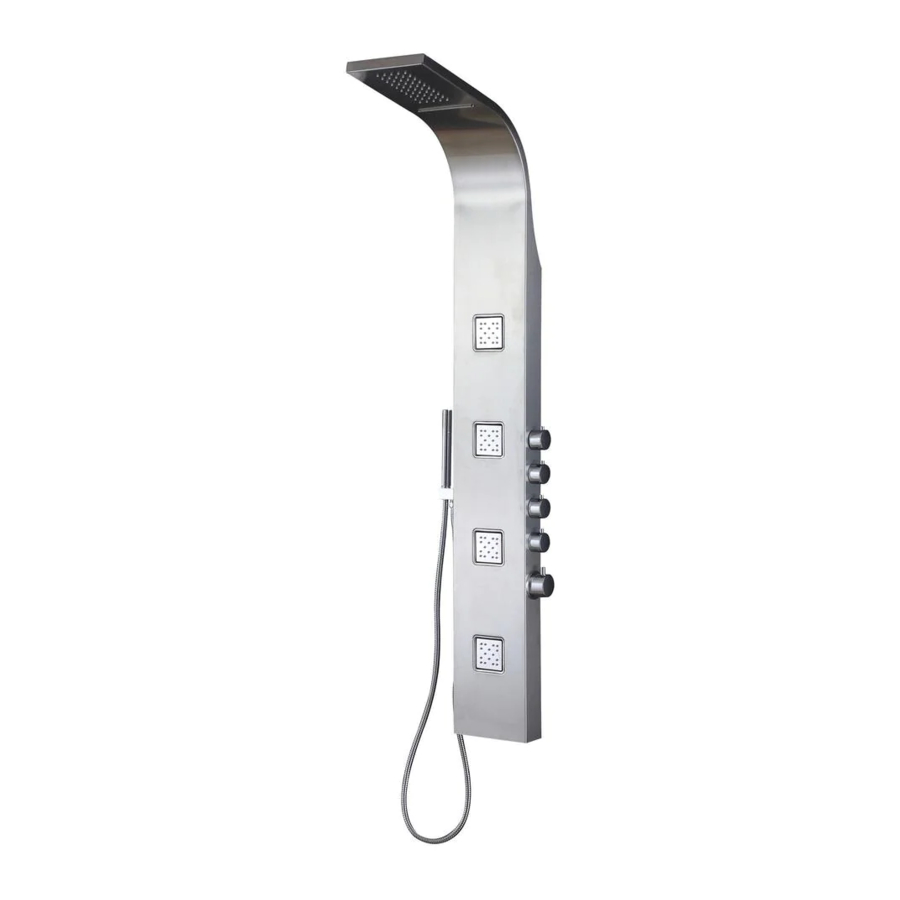

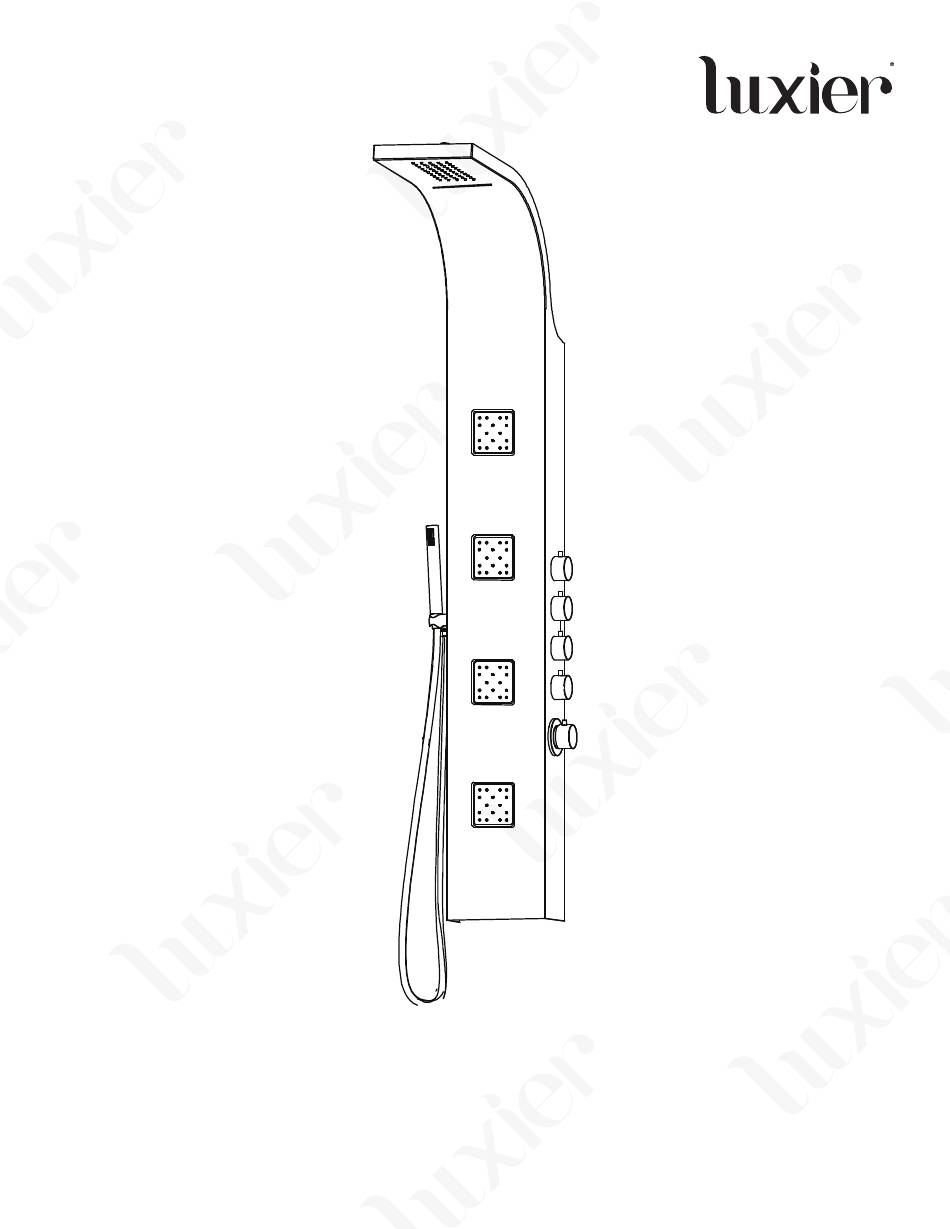

- Page 1 Features • Stunning stylish European inspired design • Elegant & Durable stainless steel frame construction • Pressure balanced valve minimize the chance of scalding. • 4 stage shower functions (Rainfall, Waterfall, Massage Spray, Hand Shower) Luxier SP25-CEC Rev. A 102019...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
- Page 3 (NOTE: additional parts such as 1/2” angle valves, 5/8” rubber grommets, and other parts are required but not included with this product.) Refer to Appendix A for detail diagram for the outlet box. Luxier SP25-CEC Rev. A 102019...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Luxier SP25-CEC Rev. A 102019...
-
Page 5: Technical Data
California. To learn more about this water saving feature, please contact our customer service department.) 200 mm 495 mm 7.87” 19.49” 1500 mm 59.06” 770 mm 30.31” 570 mm 22.44” 365 mm 14.37” 260 mm 10.24” 72.5m 2.85 ” * Drawings not to scale. All measurements are approximate * Luxier SP25-CEC Rev. A 102019... -
Page 6: Parts List
02. Hand Shower 03. Hand Shower Cradle 04. O rings 05. Hand Shower Hose 06. Gasket 07. Hand Shower Water Connector 08. Screws X 4 09. Mounting Brackets X 2 10. Wall Anchors X 4 Luxier SP25-CEC Rev. A 102019... -
Page 7: Installation
(NOTE: Before drilling the tiles, use a small piece of painters tape or masking tape over the drill area. This will prevent dam- 1” ages to the tiles) 4. Secure the mounting brackets to the wall with the screws. Luxier SP25-CEC Rev. A 102019... - Page 8 7. Connect hand shower hose to the main panel body and connect the hand shower wand to the hose. Make sure the silicon gaskets are seated properly to prevent water leak. The installation process is now complete. Luxier SP25-CEC Rev. A 102019...
-
Page 9: Operation
8. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 9. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP25-CEC Rev. A 102019... - Page 10 NOTE: Luxier is not affi liated with the owner of the video. The purpose of this video is meant to provide a visual concept of the shower outlet box to speed up the installation process. All images are copyright to their respective owners.
