IMPORTANT!
• Read and understand this instructions completely before installation. Failure to follow these
instructions could prevent the valve from working properly. Consult a professional installer if needed.
• This installation guide is subject to change without notice, please contact us to request the most
updated version of this installation guide.
• This is a general installation guideline, actual installation may vary. It is recommended the
Installation is performed by a trained and experienced installer.
• Please follow all local building and plumbing codes.
• Product drawings in this installation guide is for illustration purpose only. Actual product may vary
depends on model.
• Always take extra precautions and wear appropriate safety equipment when installing this product.
• Unpack and inspect the shower panel from the package for shipping damage and make sure all parts
are included with the shower panel.
• Keep the product in its package until you are ready to install.
• Make sure the installation site is clean and free of dust and debris.
• Please make sure the water supply is shut off to the installation area. If necessary, shut off the
water to the entire house.
• Turn on the water at a bathroom faucet in the house to relieve the pressure in the plumbing system.

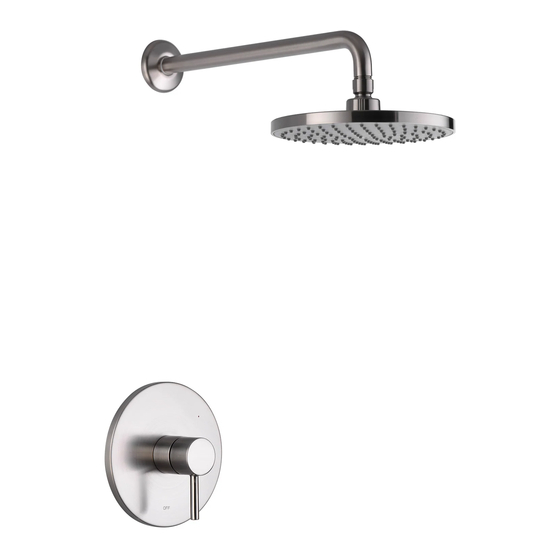

Luxier
Rainfall Shower System
Pressure Balance Valve and Shower Trim Installation
SS-B01-TB (Brushed Nickel)
SS-B01-TC (Chrome)
SS-B01-TM (Matte Black)
SS-B01-TO (Oil Rubbed Bronze)
Specifications:
Shower head flow rate: maximum 1.8 gpm at 80 psi
Plumbing connection: standard 1/2" pipe fitting
Tools and Materials Needed:
1. Safety Glasses
2. Teflon (PTFE) Tape
3. Plumber's Putty and Caulking
4. Tube Cutter
5. Adjustable Wrench
6. Screwdriver Sets
7. Tourch
8. Hacksaw
9. Marker
1
SS-B01Rev. D 012019
