Luxier SP28-SS Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

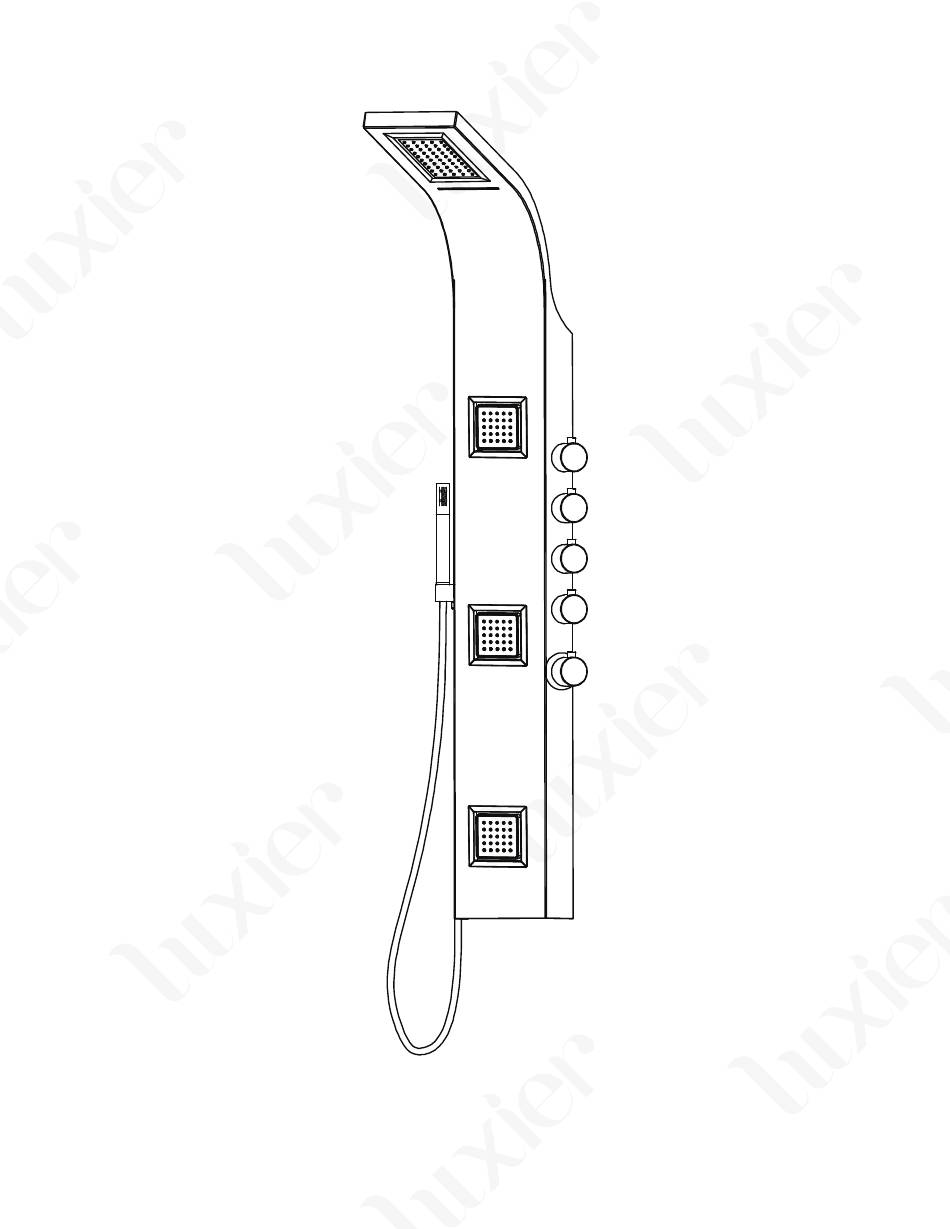

Luxier SP28-SS
Features
- Elegant & Durable stainless steel frame construction
- 4 stage shower function (Rainfall, Waterfall, Horizontal Massage Spray, Hand Shower)
- 50 total adjustable rainfall nozzles
- 3 ABS chrome adjustable massage jet pads (25 nozzles on each pad).
- Pressure-balance valve minimizes the chance of scalding.
Luxier
1
SP28-SS Rev. A2 092017

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP28-SS and is the answer not in the manual?

Questions and answers

Related Manuals for Luxier SP28-SS

Summary of Contents for Luxier SP28-SS

  • Page 1 - 4 stage shower function (Rainfall, Waterfall, Horizontal Massage Spray, Hand Shower) - 50 total adjustable rainfall nozzles - 3 ABS chrome adjustable massage jet pads (25 nozzles on each pad). - Pressure-balance valve minimizes the chance of scalding. Luxier SP28-SS Rev. A2 092017...
  • Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
  • Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Luxier SP28-SS Rev. A2 092017...
  • Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Luxier SP28-SS Rev. A2 092017...
  • Page 5 Technical Data Recommended Operating Pressure: 50-80 PSI 495mm 200mm 19.49” 7.87” 1500mm 59.06” 770mm 30.31” 620mm 24.41” 400mm 15.75” 260mm 10.24” 72mm 2.83” *All Measurements are Approximate Luxier SP28-SS Rev. A2 092017...
  • Page 6 02. Hand Shower Water Supply Connector 03. Locking Nut 04. Hand Shower 05. Hand Shower Cradle 06. Rubber Washer 07. Hand Shower Hose 08. Screws X 4 09. Mounting Brackets X 2 10. Wall Anchors X 4 Luxier SP28-SS Rev. A2 092017...

  • Page 7: Installation

    770mm 30.31” 3. Using a drill with a tile bit, drill the hole slowly into the tile. Do not drill into any piping or wiring in the wall. Insert the anchors into the wall. 1” Luxier SP28-SS Rev. A2 092017...
  • Page 8 Turn on both valves and test all functions on the shower panel and check for leaks at this point. You should have good water flow to the shower panel and full temperature control from the knobs. Luxier SP28-SS Rev. A2 092017...
  • Page 9 (NOTE: Do not seal the bottom of the panel.) 7. Connect hand shower hose to the main panel body and connect the hand shower wand to the hose. Make sure the silicon gaskets are seated properly to prevent water leak. Luxier SP28-SS Rev. A2 092017...

  • Page 10: Operation

    5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 6. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP28-SS Rev. A2 092017...
