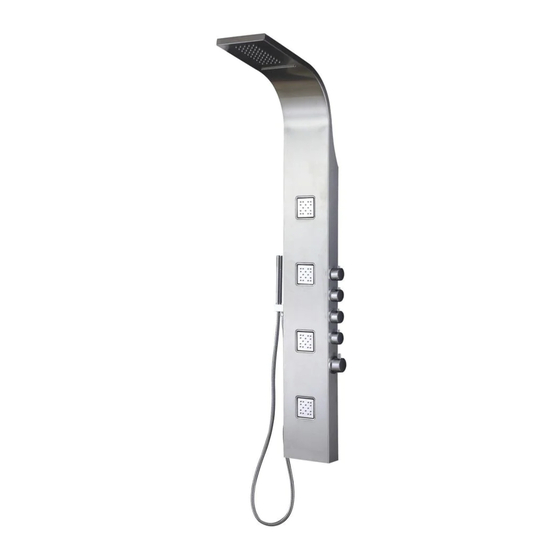

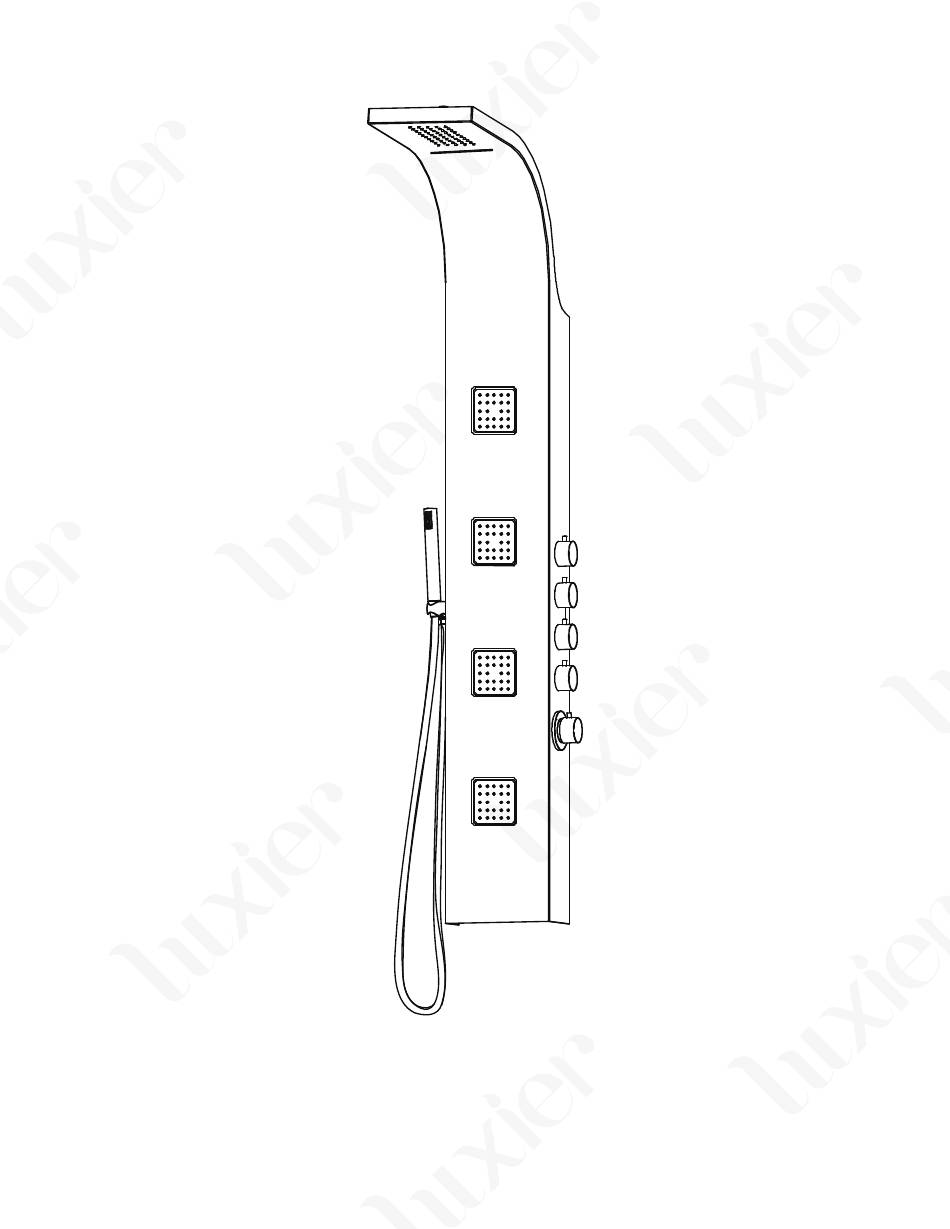

Luxier SP25-SS
Features
•
Stunning stylish European inspired design
•
Elegant & Durable stainless steel frame construction
•
Pressure balanced valve minimize the chance of scalding.
•
4 stage shower functions (Rainfall, Waterfall, Massage Spray, Hand Shower)
•
50 total rainfall nozzles and 4 adjustable horizontal spray massage jet pads with 24 nozzles on each pad
Luxier
1
SP25-SS Rev. A2 112017

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP25-SS and is the answer not in the manual?

Questions and answers

Related Manuals for Luxier SP25-SS

Summary of Contents for Luxier SP25-SS

  • Page 1 Pressure balanced valve minimize the chance of scalding. • 4 stage shower functions (Rainfall, Waterfall, Massage Spray, Hand Shower) • 50 total rainfall nozzles and 4 adjustable horizontal spray massage jet pads with 24 nozzles on each pad Luxier SP25-SS Rev. A2 112017...
  • Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
  • Page 3 Product warranty does not cover any damages caused by water leak due to negligent and improper installation of the shut off valves and the shower panel.) • An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Luxier SP25-SS Rev. A2 112017...
  • Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Luxier SP25-SS Rev. A2 112017...
  • Page 5 Technical / Flow Rate Data Recommended Operating Pressure: 50 - 80 psi 200mm 495mm 7.87” 19.49” 1500mm 59.06” 770mm 30.31” 570mm 22.44” 365mm 14.37” 260mm 10.24” 72.5m *All Measurements are Approximate 2.85 ” Luxier SP25-SS Rev. A2 112017...

  • Page 6: Parts List

    01. Shower Panel Body 02. Hand Shower 03. Hand Shower Cradle 04. O rings 05. Hand Shower Hose 06. Gasket 07. Hand Shower Water Connector 08. Screws X 4 09. Mounting Brackets X 2 10. Wall Anchors X 4 Luxier SP25-SS Rev. A2 112017...

  • Page 7: Installation

    770 mm or 30.31”) 30.31” Using a drill with a tile bit, drill the hole slowly into the tile. Do not drill into any pip- ing or wiring in the wall. Insert the anchors into the wall. 1” Luxier SP25-SS Rev. A2 112017...
  • Page 8 - Before hanging the shower panel on the wall. Turn on both valves and test all functions on the shower panel and check for leaks at this point. You should have good water flow to the shower panel and full temperature control from the knobs. Luxier SP25-SS Rev. A2 112017...
  • Page 9 (NOTE: Do not seal the bottom of the panel.) 7. Connect hand shower hose to the main panel body. Attach the hand shower to the hose. (NOTE: Install the rubber washer to prevent leak.) Luxier SP25-SS Rev. A2 112017...

  • Page 10: Operation

    5. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 6. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP25-SS Rev. A2 112017...
