Luxier SP038-SS
Features

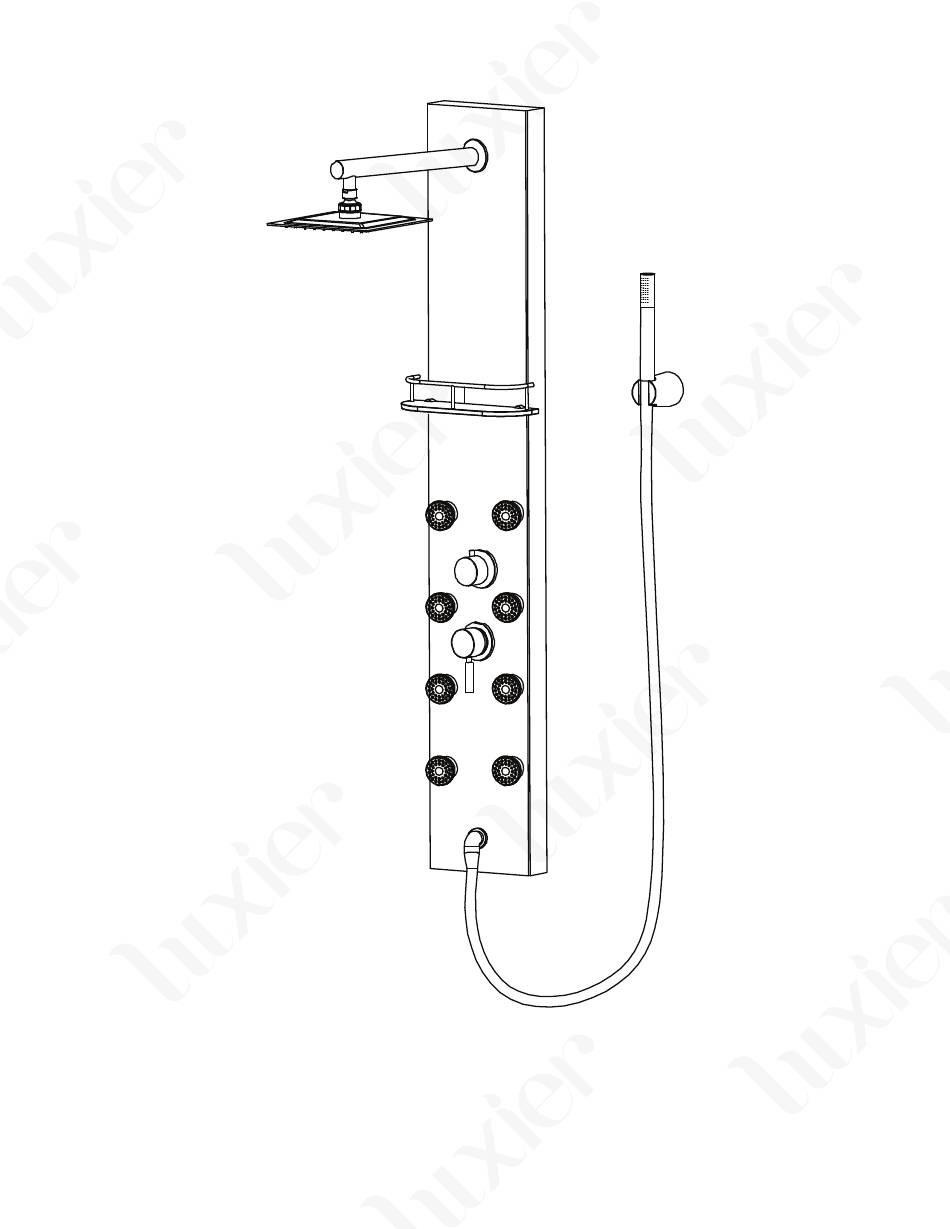

- Stunning stylish European inspired design
- Square thin profile shower head
- 8 swivel massage jets
- 3 stage shower functions (Rainfall, Massage Spray, Hand Shower)
- Contemporary brass hand shower
- Tempered glass shelf
Luxier
1
SP38-SS Rev. A 042018
Advertisement
Related Manuals for Luxier SP038-SS
Summary of Contents for Luxier SP038-SS
- Page 1 Luxier SP038-SS Features - Stunning stylish European inspired design - Square thin profile shower head - 8 swivel massage jets - 3 stage shower functions (Rainfall, Massage Spray, Hand Shower) - Contemporary brass hand shower - Tempered glass shelf Luxier...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
- Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Luxier SP38-SS Rev. A 042018...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Luxier SP38-SS Rev. A 042018...
- Page 5 Technical Data Recommended Operating Pressure: 50-60 PSI 240mm 340mm 9.45” 13.39” 1300mm 51.18” 710mm 27.95” 430mm 16.93” 270mm 10.63” 60mm 2.36” *All Measurements are Approximate Luxier SP38-SS Rev. A 042018...
- Page 6 09. Rubber Washer 10. Rainfall Shower Supply Connector 11. Hand Shower 12. Hand Shower Cradle 13. Rubber Washer 14. Hand Shower Hose 15. Screw x 4 16. Mounting Bracket x2 17. Wall Anchors x 4 Luxier SP38-SS Rev. A 042018...
-
Page 7: Installation
710mm 27.95” 3. Using a drill with a tile bit, drill the hole slowly into the tile. Do not drill into any piping or wiring in the wall. Insert the anchors into the wall. 1” Luxier SP38-SS Rev. A 042018... - Page 8 - Before hanging the shower panel on the wall. Turn on both valves and test all functions on the shower panel and check for leaks. The shower panel should have good water flow and full temperature control at this point. Luxier SP38-SS Rev. A 042018...
- Page 9 8. Connect hand shower hose to the main panel body and connect the hand shower wand to the hose. Make sure the silicon gas- kets are seated properly to prevent water leak. Luxier SP38-SS Rev. A 042018...
- Page 10 Tighten the set screws to secure the glass shelf. (WARNING: Do not place heavy objects on the glass shelf. Do not excess weight limit of 2 pounds when placing objects on the shelf) Luxier SP38-SS Rev. A 042018...
- Page 11 7. When using spray cleaners, spray fi rst onto a soft cloth or sponge. Never spray directly onto the faucet as droplets can enter openings and gaps and cause damage. 8. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. Luxier SP38-SS Rev. A 042018...
