SP26-GS-WHT
(White)
SP26-GS-BLK
(Black)
SP26-GS-SLR
(Sliver)
SP26-GS-AQU
(Aqua Blue)
Features

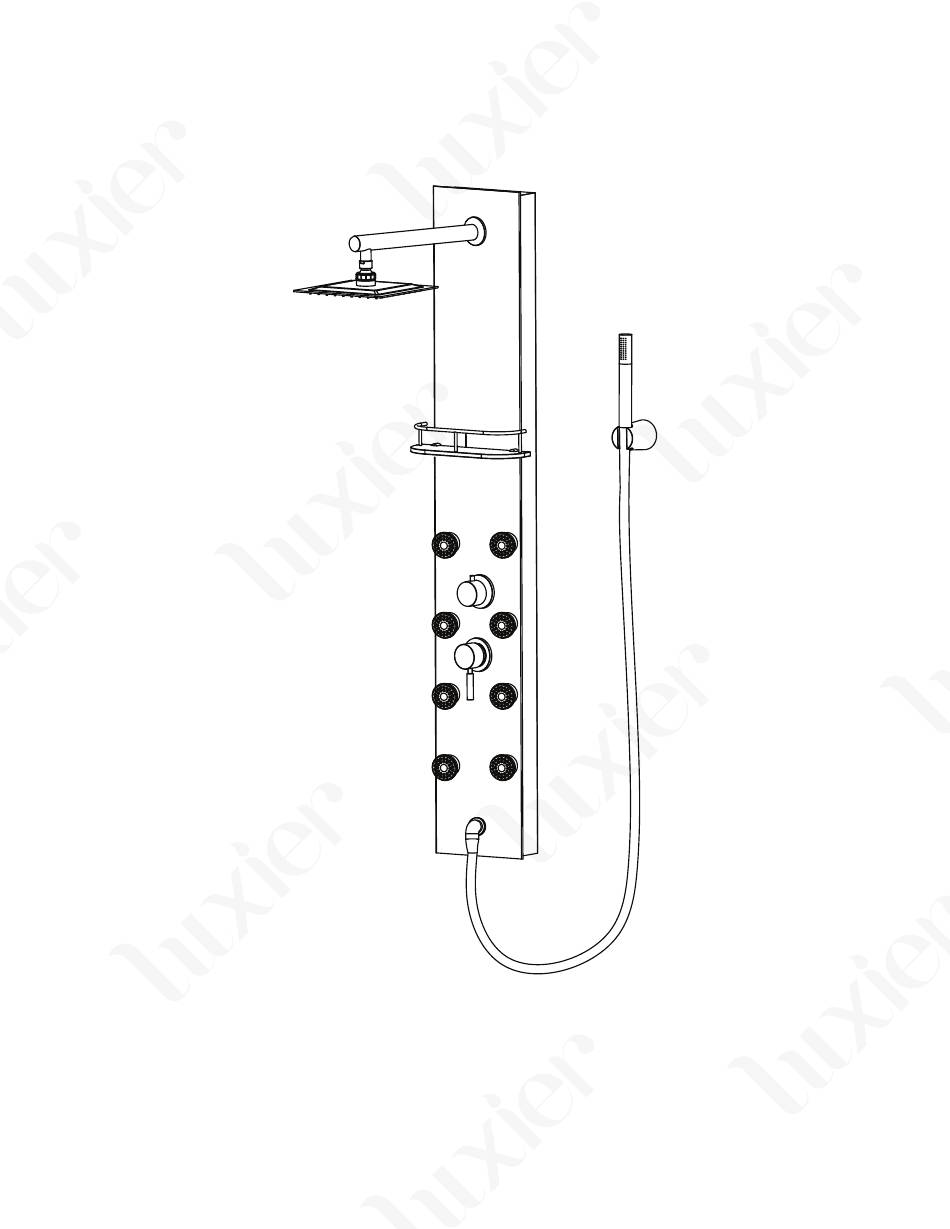

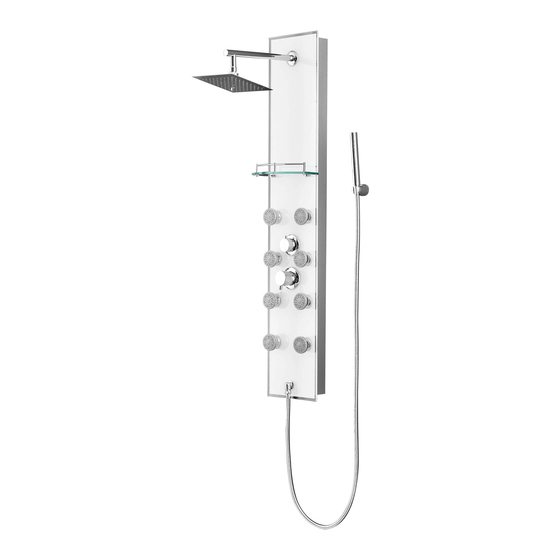

- Stunning stylish European inspired design
- Elegant safety tempered glass panel (Available in white, black, silver, and aqua blue colors)
- Square stainless thin profile shower head
- 8 swivel massage jets
- 3 stage shower functions (Rainfall, Massage Spray, Hand Shower)
- Contemporary brass hand shower
- Tempered glass shelf
Luxier
1
SP26-GS Rev. A3 122017
Advertisement
Related Manuals for Luxier SP26-GS-WHT
Summary of Contents for Luxier SP26-GS-WHT
- Page 1 Luxier SP26-GS-WHT (White) SP26-GS-BLK (Black) SP26-GS-SLR (Sliver) SP26-GS-AQU (Aqua Blue) Features - Stunning stylish European inspired design - Elegant safety tempered glass panel (Available in white, black, silver, and aqua blue colors) - Square stainless thin profile shower head - 8 swivel massage jets...
- Page 2 Should a malfunction occur within the warranty period, Luxier USA will, as its option, (1) repair or replace the defective part(s) or product(s) at no charge; (2) issue a refund of the original purchase price of the product(s) (Valid within 30 days from the date of purchase);...
- Page 3 An outlet box such as the Sioux Chief Ox Box 696-G2001MF, 696-G2303MF, or 696-2403MF is recommended to expedite the installation process of the shut off valves. (NOTE: additional parts such as brass reducer / adapters are required but not included with this product) Luxier SP26-GS Rev. A3 122017...
- Page 4 NOTE: This distance vary by models, always take the actual measurement from the shower panel) (This is the distance from the oor to the bottom edge of the shower panel) Luxier SP26-GS Rev. A3 122017...
- Page 5 Technical Data Recommended Operating Pressure: 50-80 PSI 240mm 340mm 9.45” 13.39” 1300mm 51.18” 710mm 27.95” 430mm 16.93” 270mm 10.63” 70mm 2.76” *All Measurements are Approximate Luxier SP26-GS Rev. A3 122017...
- Page 6 09. Rubber Washer 10. Rainfall Shower Supply Connector 11. Hand Shower 12. Hand Shower Cradle 13. Rubber Washer 14. Hand Shower Hose 15. Screw x 4 16. Mounting Bracket x2 17. Wall Anchors x 4 Luxier SP26-GS Rev. A3 122017...
-
Page 7: Installation
(4) is seated properly inside the connector.) 3. Mark the positions of the 2 brackets on the wall and set a side the panel. (NOTE: The distance between the two brackets should be 710mm or 27.95”) 710mm 27.95” Luxier SP26-GS Rev. A3 122017... - Page 8 6. Apply thread sealant tape to the threading on the shut off valves before connect both hot and cold water supply hoses to the valves. Turn on the valves and check all connections for possible leaks. Luxier SP26-GS Rev. A3 122017...
- Page 9 8. Attache shower head. Apply some (NOTE: PTFE tape on the thread to prevent leaking) 7. Connect hand shower hose to the main panel body. Attach the hand shower to the hose. (NOTE: Install the rubber washer to pre- vent leak.) Luxier SP26-GS Rev. A3 122017...
- Page 10 Tighten the set screws to secure the glass shelf. (WARNING: Do not place heavy objects on the glass shelf. Do not excess weight limit of 2 pounds when placing objects on the shelf) Luxier SP26-GS Rev. A3 122017...
- Page 11 8. After cleaning, rinse thoroughly with clean water to remove any cleaner residue. 9. Wipe dry with soft cloth to keep shower panel surface spot free. Luxier SP26-GS Rev. A3 122017...
