Enwork ALKALIGN TABLE TI0042 Installation Instructions Manual

Conference table

Advertisement

Quick Links

A L K A L I G N
T A B L E
I N S T A L L A T I O N
I N S T R U C T I O N S
C O N F E R E N C E
T A B L E
T I 0 0 4 2
Alkalign Table Base Installation Guide 09.03.20 – Rev. A

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALKALIGN TABLE TI0042 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Enwork ALKALIGN TABLE TI0042

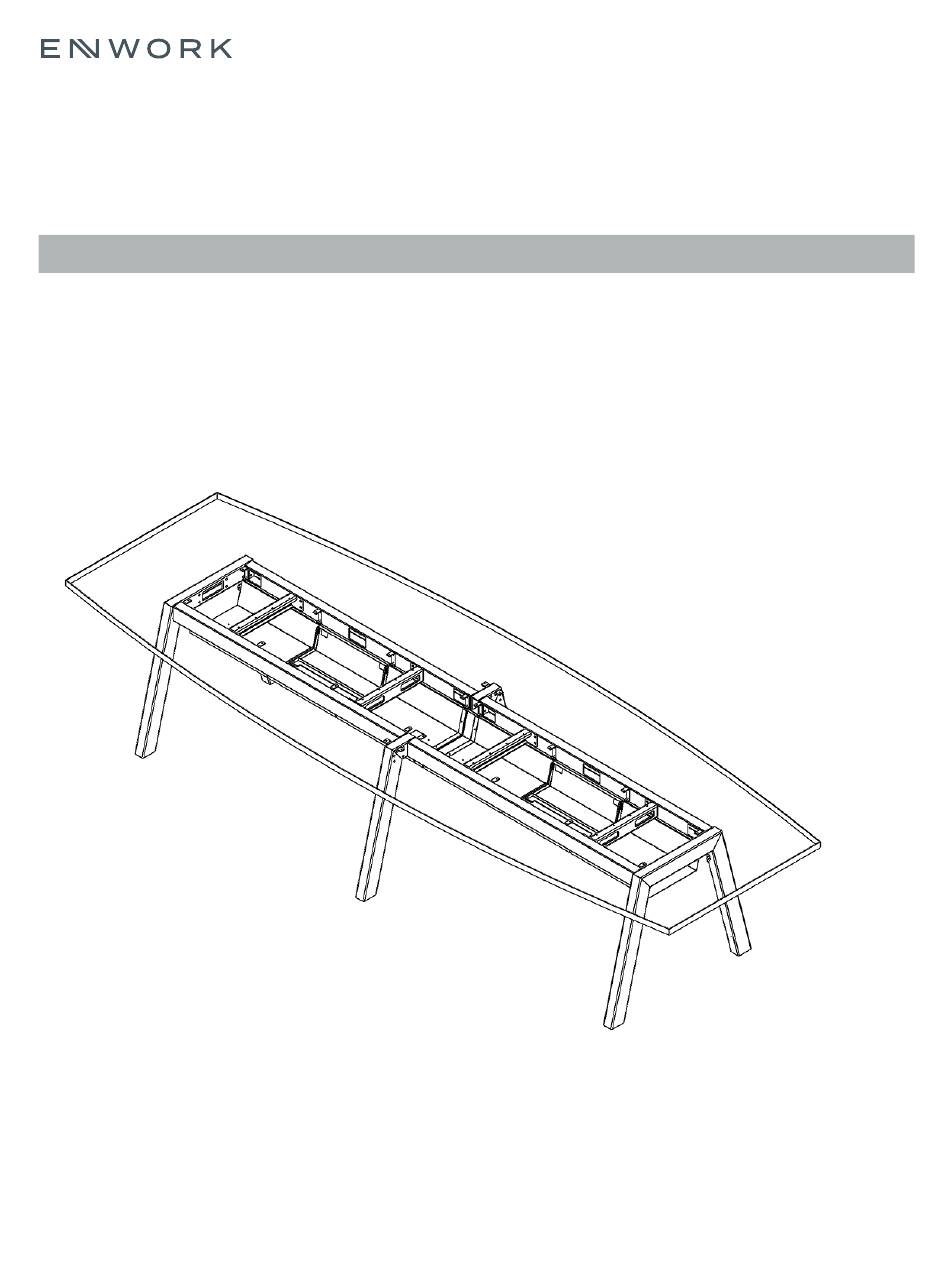

  • Page 1 A L K A L I G N T A B L E I N S T A L L A T I O N I N S T R U C T I O N S C O N F E R E N C E T A B L E T I 0 0 4 2 Alkalign Table Base Installation Guide 09.03.20 –...
  • Page 2: Installation

    I N S T A L L A T I O N G U I D E P A R T S A N D F A S T E N E R S I N C L U D E D Alkalign End Leg Weldment Alkalign Mid Leg Weldment Alkalign Mid Leg Weldment...
  • Page 3 I N S T A L L A T I O N G U I D E P A R T S A N D F A S T E N E R S I N C L U D E D #10-24 x 1/2”...
  • Page 4: Tools And Supplies

    I N S T A L L A T I O N G U I D E T O O L S A N D S U P P L I E S R E Q U I R E D Drill Square Driver Bit Phillips Driver Bit...
  • Page 5 I N S T A L L A T I O N G U I D E A S S E M B L Y : Attach Beam Weldment to End Leg Weldment using 5/16-18 X 1-1/4” Serrated Flange Bolt. Note: Snug fit.
  • Page 6 I N S T A L L A T I O N G U I D E A S S E M B L Y : Tighten all connections. F I G U R E 3 . 4 Install infill. Note: Infill attachment hardware is dependent on infill material option.
  • Page 7 I N S T A L L A T I O N G U I D E A S S E M B L Y : Secure the surface using the supplied #10 X 1” Truss Head Wood Screws. F I G U R E 3 . 7 Attach Formed Trough Panel to Beam Weldment using #10-24 x 1/2”...
  • Page 8 I N S T A L L A T I O N G U I D E A S S E M B L Y : Assemble #8-32 x 3/8 Phillips Pan Head Thread Cutting Screw and #8 Split Lock Washer Trough Door.
  • Page 9 I N S T A L L A T I O N G U I D E A S S E M B L Y : Insert the Trough Door assembly into the Nylon Bushings. F I G U R E 3 . 1 3 Push the Formed Trough Panel together as far as possible and tighten the #10-24 x 1/2”...
  • Page 10 I N S T A L L A T I O N G U I D E A S S E M B L Y : Level the table. Assembly complete. F I G U R E 3 . 1 6...
  • Page 11 I N S T A L L A T I O N G U I D E O P T I O N A L ) P A R T S A N D F A S T E N E R S I N C L U D E D 4 Trac Circuit 1 Duplex 4 Trac Receptacle Connector...
  • Page 12 I N S T A L L A T I O N G U I D E A S S E M B L Y : O P T I O N A L Connect the 4 Trac Circuit modular power receptacles together using the Receptacle Connector.
  • Page 13 1.800.815.7251 www.enwork.com 12900 Christopher Dr. Lowell, MI 49331 Specifications subject to change without notice. Rev 11.2020...
