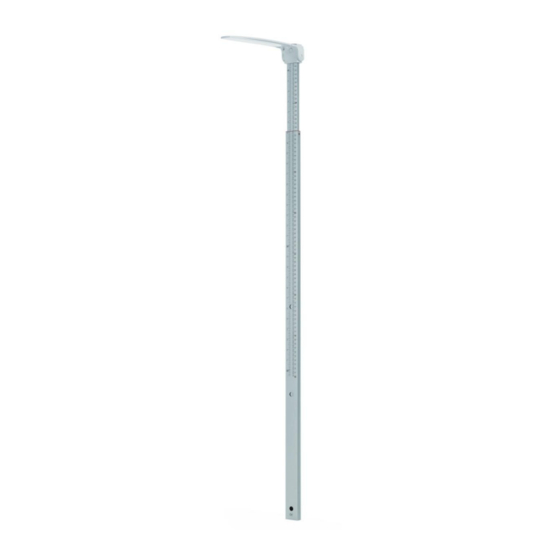

- Page 1 Height Measurement USER MANUAL HM201M Stadiometer Please keep the instruction manual at hand and follow instruction for use.
-
Page 2: Table Of Contents
CONTENTS Explanation of Text/Symbols on Device Label/Packaging ..3 Copyright Notice ................ 5 I. Safety Notes ................6 II. Installation ................9 III. Using Device ..............13 IV. Product Specifications ............15 V. Declaration of Conformity ........... 16... -
Page 3: Explanation Of Text/Symbols On Device Label/Packaging
Explanation of Text/Symbols on Device Label/Packaging Meaning Text/Symbol Caution, consult accompanying documents before use Separate collection for waste of electrical and electronic equipment, in accordance with Directive 2002/96/EC. Do not dispose of device with everyday waste Name and address of device manufacturer, and year/country of manufacture Carefully read user manual before installation and usage, and follow instructions for use. - Page 4 Device complies with EC directives (verified models only) M: Conformity label in compliance with Directive 2014/31/EU for non-automatic weighing instruments 20: Year in which conformity verification was performed and the CE label was applied. (ex: 16=2016) 0122: Identifier for metrology Notified Body Device is a Class III scale in compliance with Directive 2014/31/EU (verified models only) Name and address of entity importing device (if applicable)
-
Page 5: Copyright Notice
Copyright© Charder Electronic Co., Ltd. All rights reserved. This user manual is protected by international copyright law. All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual. -
Page 6: Safety Notes
I. Safety Notes General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner. - Page 7 - Able to read the language of instruction manual and on-screen instructions (d) Qualifications - No special certifications or qualifications required Residual Risk Evaluation (a) All foreseeable risks have been evaluated and considered acceptable. Generally speaking, the most likely risk caused by incorrect usage of the device is less accurate measurement (or inability to use device to acquire measurement), which does not pose imminent physical risk to patient or user.
- Page 8 Charder service partner, using original Charder accessories and spare parts. Charder is not liable for any damages arising from improper maintenance or usage. Dismantlement of the device will void the warranty.
-
Page 9: Installation
II. Installation 1. Make a mark 54 cm off the 2. Align the mark with one hole, ground. and use it and bracket to mark position for second hole. 3. Drill through both markings. 4. Insert plastic nails firmly. 5. Screw bracket to wall 6. - Page 10 Without Bracket 1. Make a mark 51.5 cm off the 2. Extend the height rod fully, and ground. mark the top hole position 3. Drill through both markings to secure HM201M to wall..
- Page 11 Attaching to compatible Charder scales MS39-series 1. Attach bracket 2. Screw height rod to bracket...
- Page 12 MS49-series 1. Attach fixing block using cross 2. Attach HM201M to fixing block head screws using flat head screws Parts Fixing block*2 Flat head screw*2 Cross head screw*2...
-
Page 13: Using Device
III. Using Device Over 121cm 1. Extend rod 2. Raise headpiece to horizontal position 3. Head reading should be taken at point A... - Page 14 Under 120 cm 1. Fold down headpiece and press on buckle 2. While pressing buckle, press down headpiece 3. Height reading should be taken at point B...
-
Page 15: Product Specifications
IV. Product Specifications A. Device Information Model HM201M 60-210 cm Range 24-82 3/4" Height 1 mm Graduation Measurement 1/16 in Accuracy ± 10 mm Overall 40(W) x 30(D) x 1780(H) mm Dimensions Device About 0.7 kg Weight +5℃~+35℃ Operation Environment... -
Page 16: Declaration Of Conformity
V. Declaration of Conformity This product has been manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives: (EU) 2017/745 Regulation on Medical Devices 2014/31/EU Non-automatic Weighing Instruments Directive (OIML models only) RoHS Directive 2011/65/EU and Delegated Directive (EU) 2015/863 Radio Equipment Directive 2014/53/EU (applicable if wireless module is used)
