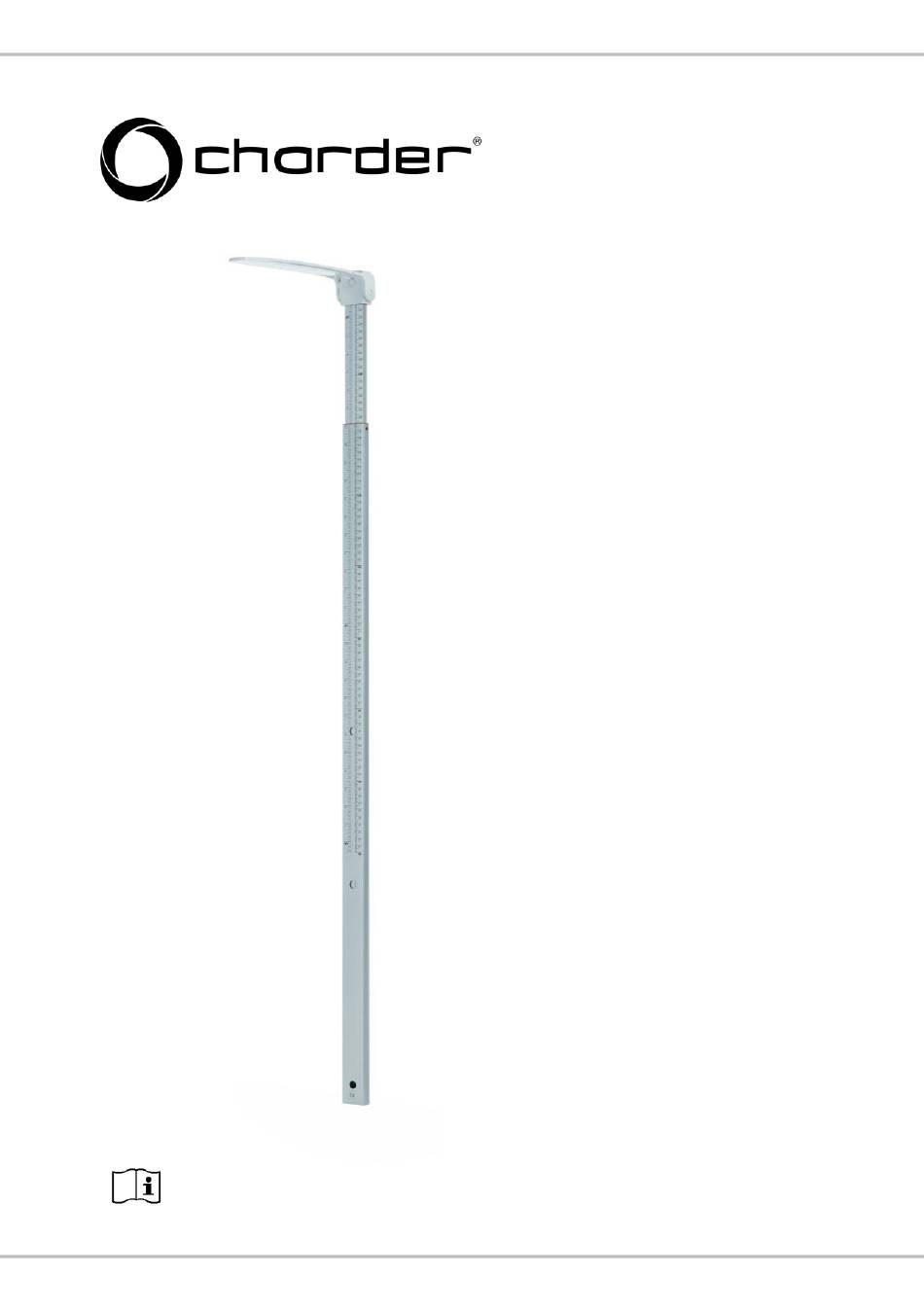

- Page 1 USER MANUAL HM201M Height Meter Please keep the instruction manual at hand all the time for future reference.
- Page 2 Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual. Charder reserves the right to correct misprints in the manual without prior notice, and modify the exterior of the device for quality purposes without customer consent.
-
Page 3: Table Of Contents
I. Safety Notes ................4 A. General Information ............4 II. Installation ................5 With Bracket ................5 Without Bracket ..............6 Attaching to compatible Charder scales ........7 III. Using Device ............... 9 IV. Product Specifications ............11 V. Declaration of Conformity ............12... -
Page 4: Safety Notes
I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner. -
Page 5: Installation
II. Installation With Bracket 1. Make a mark 54 cm off the 2. Align the mark with one hole, ground. and use it and bracket to mark position for second hole. 3. Drill through both markings. 4. Insert plastic nails firmly. 5. -
Page 6: Without Bracket
Without Bracket 1. Make a mark 51.5 cm off the 2. Extend the height rod fully, and ground. mark the top hole position 3. Drill through both markings to secure HM201M to wall.. -
Page 7: Attaching To Compatible Charder Scales
Attaching to compatible Charder scales MS39-series 1. Attach bracket 2. Screw height rod to bracket... - Page 8 MS49-series 1. Attach fixing block using cross 2. Attach HM201M to fixing block head screws using flat head screws Parts Fixing block*2 Flat head screw*2 Cross head screw*2...
-
Page 9: Using Device
III. Using Device Over 121cm 1. Extend rod 2. Raise headpiece to horizontal position 3. Head reading should be taken at point A... - Page 10 Under 120 cm 1. Fold down headpiece and press on buckle 2. While pressing buckle, press down headpiece 3. Height reading should be taken at point B...
-
Page 11: Product Specifications
IV. Product Specifications Model HM201M 60-210 cm Range 24-82 3/4" Height 1 mm Graduation Measurement 1/16 in Accuracy ± 10 mm Dimensions Overall 40(W) x 30(D) x 1780(H) mm Device Weight About 0.7 kg Operation Temperature & 5℃~35℃ Humidity... -
Page 12: Declaration Of Conformity
93/42/EEC as amended by 2007/47/EC Medical Device Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 41262 Taiwan (R.O.C.) CD-IN-1025 7026S 11/2020...
