Height Measurement

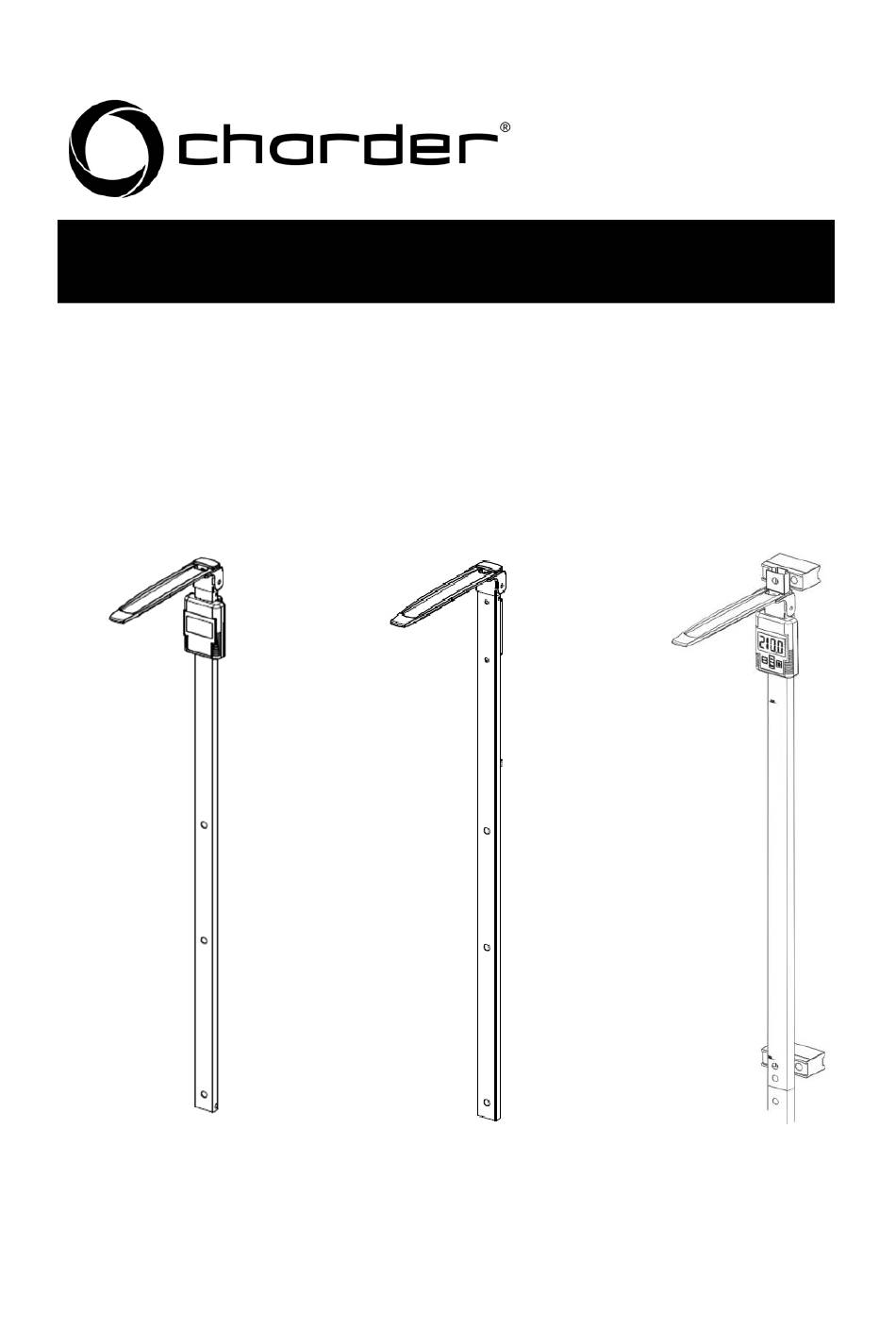

USER MANUAL
HM200D/ HM201D/210D
Digital Stadiometer
Digital Wall-mounted Stadiometer
HM201D
HM210D
HM200D
Please keep the instruction manual at hand and follow instruction for use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HM200D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Charder HM200D

  • Page 1 Height Measurement USER MANUAL HM200D/ HM201D/210D Digital Stadiometer Digital Wall-mounted Stadiometer HM201D HM210D HM200D Please keep the instruction manual at hand and follow instruction for use.
  • Page 3: Table Of Contents

    HM201D ..............16 HM201D ..............17 HM210D ..............17 VII. INSTALLATION INSTRUCTIONS ........18 A、HM200D / HM201D standard accessories ....18 B、HM200D / HM201D/ HM201M standard accessories for scale with castors ............. 18 C、HM210D standard accessories (wall mount parts) ..18 D、HM210D standard accessories (Heel plate parts) ..
  • Page 4: Explanation Of Graphic Symbols On Label/Packaging

    I. Explanation of Graphic Symbols on Label/Packaging Text/Symbol Meaning Caution, consult accompanying documents before use Separate collection for waste of electrical and electronic equipment, in accordance with Directive 2002/96/EC. Do not dispose of device with everyday waste Name and address of device manufacturer, and year/country of manufacture Carefully read user manual before installation and usage, and follow instructions for use.
  • Page 5 Device complies with EC directives (verified models only) M: Conformity label in compliance with Directive 2014/31/EU for non-automatic weighing instruments 20: Year in which conformity verification was performed and the CE label was applied. (ex: 16=2016) 0122: Identifier for metrology Notified Body Device is a Class III scale in compliance with Directive 2014/31/EU (verified models only) Name and address of entity importing device (if...
  • Page 6: Copyright Notice

    All content is licensed, and usage is subject to written authorization from Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual. Charder reserves the right to correct misprints in the manual without prior notice, and modify the exterior of the device for quality purposes without customer consent.
  • Page 7: Safety Notes

    III. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner. Before beginning operation of the device, please read this user manual carefully, and keep it in a safe place for reference.
  • Page 8: Safety Instructions

    Device surface should be cleaned using alcohol-based wipes. Corrosive cleansing liquids should not be used. Maintenance Please contact your local Charder distributor for regular maintenance and calibration, regular checking of accuracy is recommended; frequency to be determined by level of use and...
  • Page 9 Warranty/Liability The period of warranty shall be eighteen (18) months,  beginning on the date of purchase. Please retain your receipt as proof of purchase. No responsibility shall be accepted for damage caused  through any of the following reasons: unsuitable or improper storage or use, incorrect installation or commissioning by the owner or third parties, natural wear and tear, changes or modifications, incorrect or negligent...
  • Page 10: Emc Guidance And Manufacturer's Declaration

    B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration- electromagnetic emissions The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that it is used in such an environment. Electromagnetic Emission test Compliance...
  • Page 11 Guidance and manufacturer’s declaration-electromagnetic immunity The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that it is used in such an environment. Electromagnetic Immunity IEC 60601 Compliance level environment- test level test...
  • Page 12 Guidance and manufacturer’s declaration-electromagnetic immunity The product is intended for use in the electromagnetic environment specified below. The customer or the user of the product should assure that is used in such and environment. Immunity test IEC 60601 test Compliance Electromagnetic level level...
  • Page 13 Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.
  • Page 14 Recommended separation distance between portable and mobile RF communications equipment and the product The product is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the product can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the product as recommended below, according to the maximum output power of the communications equipment.
  • Page 15: Specification

    IV. SPECIFICATION Model HM200D HM201D HM210D Scale mounted digital Wall mounted Type height rod digital height rod Hold, Reset, Keys Reset Button Hold, Reset, Unit Unit 120~200cm (Digital measuring range) Measurement 120~200cm 100-210cm range 60~120cm (Mechanical measuring range) Graduations Accuracy ±1.5mm...
  • Page 16: Key Functions

    V. KEY FUNCTIONS KEYS DESCRIPTION Press to switch on and off. ON/OFF To select the measurement unit between cm, UNIT ft/inch and inch. To enable value store function during measuring. Current height value of user will HOLD be stored and displayed. Press again to disable the function.
  • Page 17: Product Introduction

    VI. PRODUCT INTRODUCTION HM200D HM200D is a digital height rod to be mounted on the Charder Scale with measuring range from (120~200cm). HM 200D have LCD display for convenient, accurate and quick height measurement. It can be connected with the scale indicator to transfer the...
  • Page 18: Hm201D

    After this ask the person to move away from the measurement rod and pull the head piece down. The height result will remain on the display. For Detailed BMI procedure, please refer to any of ‘Charder’s’ weighing scale user manual.
  • Page 19: Installation Instructions

    Item Spec. Qty. Supported WH-8026 black Block Flat head M5*0.8*10 screw Cross head M5*30 screw B、HM200D / HM201D/ HM201M standard accessories for scale with castors Accessories Item Spec. Qty. Bracket for height SS-5721 Fixing block for ST-3331 height rod Screw...
  • Page 20 Accessories Item Spec. Qty. Supported Block 8026 Washer M5*0.8*1 head screw Self tapping M4*30 screw Plastic 1”(white) anchor...
  • Page 21: D、Hm210D Standard Accessories (Heel Plate Parts)

    D、HM210D standard accessories (Heel plate parts) Accessories Item Spec. Qty. Plastic plug 8069 Rubber tub SS-8152 Heel plate SS-8149 Self tapping 4*12 screw...
  • Page 22: E、Assembly Of Hm200D & Hm201D

    E、ASSEMBLY OF HM200D & HM201D Fixing the bracket on the column of the scale using the screws provided with the height rod.
  • Page 23: F、For Measure Height Lower Than 120 Cm

    F、For measure height lower than 120 cm Please use HM 201D as a mechanical scale and press buckle as shown in the picture below and slide the head piece down. Under 120cm...
  • Page 24: G、Assemble Hm200D/201D/201M On The Scale With Wheel Castors

    G、Assemble HM200D/201D/201M on the scale with wheel castors. Step 1. Fix two brackets on the column. Item Name Quantity M5x11L screw Relief Bushing Bracket for height rod *Photo of display for reference only. Please refer to the actual product.
  • Page 25: H、Hm201M Is Mechanical Height Rod Which Has Same Assembly Procedure With Hm200D/201D

    H、HM201M is mechanical height rod which has same assembly procedure with HM200D/201D. HM200D/201D Step 2. Fix HM200D/ 201D/ 201M on the bracket and tight the screw Item Name Quantity HM200D/ 201D/ 201M M5x10L Flat head screw Fixing block for height rod...
  • Page 26: I、Assembly Of Hm 210D

    I、ASSEMBLY OF HM 210D...
  • Page 27: Using Hm200/201/210D

    VIII. USING HM200/201/210D HM210D WALL MOUNTED Read The Height Here!!! For people who wants to use it as mechanical height rod. HM200D SCALE MOUNTED...
  • Page 28 1. HM 200D  Sliding up the measuring rod upward.  Sliding down the head piece until slightly touches head.  When the head piece touches the head of the person, display will show the exact height of the person. ...
  • Page 29 2. HM 201D  Sliding the measuring rod upward.  Sliding down the head piece until slightly touches head.  When the head piece touches the head of the person, display will transfer height data to the scale.  You can use BMI functions of scale to recall and calculate BMI , weight and height.
  • Page 30 3. HM 210D  Sliding up the measuring rod upward.  Sliding down the head piece until slightly touches head.  When the head piece touches the head of the person, display will show the exact height of the person. ...
  • Page 31: A、Librating Height Rod

    A、LIBRATING HEIGHT ROD 1、HM200D  Sliding the measuring rod downward completely (Picture-1)  Turn ON HM 200D using ON/OFF key (Picture-2).  If the height display is not on ‘120cm’, press Reset button to calibrate the height. It will be ‘120cm’(Picture-3).
  • Page 32  Connect HM 201D with indicator (Picture-1)  Turn ON the scale by pressing ON/OFF key(Picture-2).  Press BMI key to check current height.  Sliding the measuring rod downward completely (Picture-3).  If the height display is not ‘120cm’, press Reset button to calibrate the height.
  • Page 33: B、Ttery Installation

    B、TTERY INSTALLATION a. Remove the battery cover at the rear of indicator. b. Install 2-AAA size batteries. c. Put the batter cover back. Note: HM 201D don’t need batteries to operate; it starts working as it is connected with DP3400 or DP37xx indicator.
  • Page 34 Notes ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________...
  • Page 35 Notes ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________...
  • Page 36: Manufacturer's Declaration Of Conformity

    IX. Manufacturer’s Declaration of Conformity This product has been manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives: (EU) 2017/745 Regulation on Medical Devices 2014/31/EU Non-automatic Weighing Instruments Directive (OIML models only) RoHS Directive 2011/65/EU and Delegated Directive (EU) 2015/863 Radio Equipment Directive 2014/53/EU (applicable if wireless module is used)
