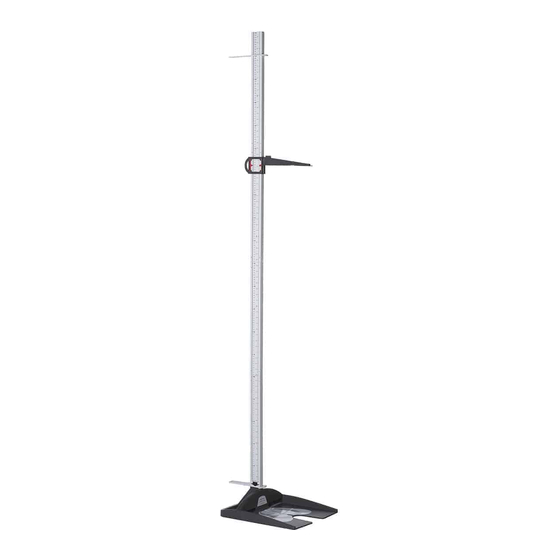

Charder HM200P User Manual

Portable height measurement
Hide thumbs Also See for HM200P:

Advertisement

Quick Links

Download this manual

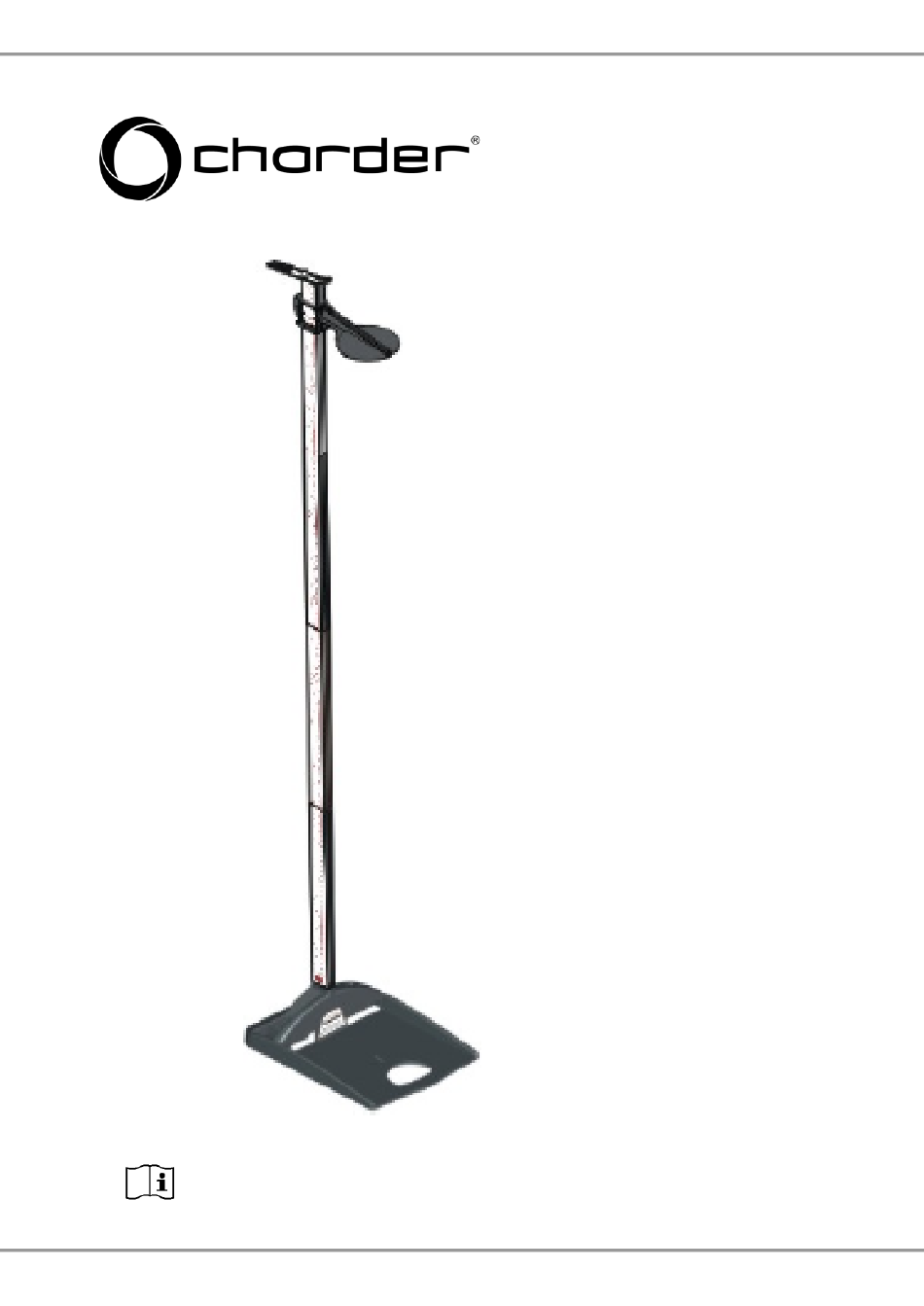

USER MANUAL
HM200P
Portable Height Measurement
Please keep the instruction manual at hand all the time for future reference.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HM200P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Charder HM200P

Summary of Contents for Charder HM200P

  • Page 1 USER MANUAL HM200P Portable Height Measurement Please keep the instruction manual at hand all the time for future reference.
  • Page 2 Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual. Charder reserves the right to correct misprints in the manual without prior notice, and modify the exterior of the device for quality purposes without customer consent.

  • Page 3: Table Of Contents

    CONTENTS I. Safety Notes ................4 A. General Information ..............4 II. Installation ................5 Unpacking the HM200P ..............5 Assembly Instructions ..............6 III. Using Device ............... 8 IV. Product Specifications ............9 V. Declaration of Conformity ............12...

  • Page 4: Safety Notes

    I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner.

  • Page 5: Installation

    II. Installation Unpacking the HM200P Height Rod *4 Head stopper Support plate Base platform...

  • Page 6: Assembly Instructions

    Assembly Instructions 1. Remove support plate 2. Insert Height Rods into base platform in order 3. Ensure that height rods are inserted in the correct order 4. Mount head stopper onto height rod...
  • Page 7 5. Place support plate on top of height rod 6. Place HM200P against the wall for stability.

  • Page 8: Using Device

    III. Using Device 1. Subject should stand up straight with feet within the foot markings 2. Subject's back should tough the height measurement rod slightly. Lower stopper until it touches top of subject's head 3. Read height measurement result in window...

  • Page 9: Product Specifications

    IV. Product Specifications Model HM200P 14-205 cm Range 5.5-81 in Height 1 mm Graduation Measurement 1/16 in Accuracy ± 10 mm Dimensions Overall 350(W) x 400(D) x 2430(H) mm ~1.9 kg (without carry box) Device Weight ~2.3 kg (including carry box) Operation Temperature &...
  • Page 10 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
  • Page 11 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...

  • Page 12: Declaration Of Conformity

    93/42/EEC as amended by 2007/47/EC Medical Device Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 41262 Taiwan (R.O.C.) CD-IN-1046 8039O 03/2021...
