USER MANUAL

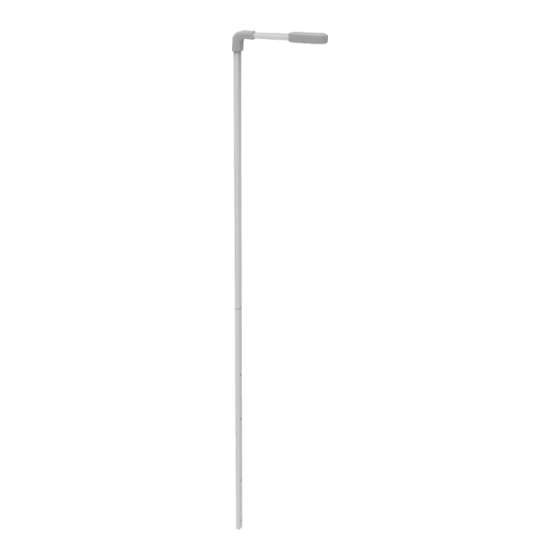

HM200U
Ultrasonic Height Stadiometer
Please keep the instruction manual at hand all the time for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the HM200U and is the answer not in the manual?

Questions and answers

Related Manuals for Charder HM200U

Summary of Contents for Charder HM200U

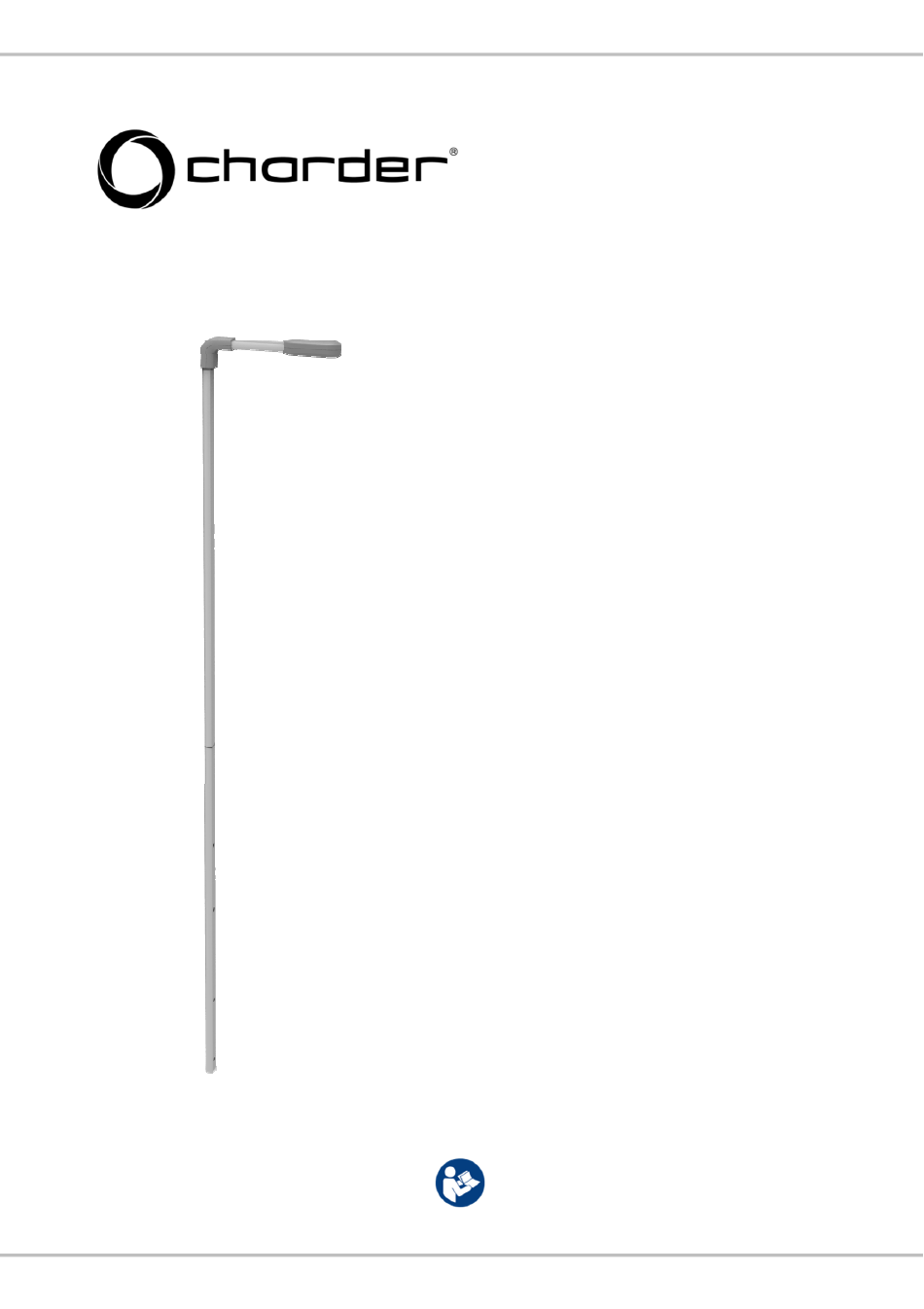

  • Page 1 USER MANUAL HM200U Ultrasonic Height Stadiometer Please keep the instruction manual at hand all the time for future reference.
  • Page 2 Explanation of Text/Symbols on Device Label/Packaging Text/Symbol Meaning Caution, consult accompanying documents before use Separate collection for waste of electrical and electronic equipment, in accordance with Directive 2002/96/EC. Do not dispose of device with everyday waste Name and address of device manufacturer, and year/country of manufacture Carefully read user manual before installation and usage, and follow instructions for use.

  • Page 3: Table Of Contents

    Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual. Charder reserves the right to correct misprints in the manual without prior notice, and modify the exterior of the device for quality purposes without customer consent.

  • Page 4: Safety Notes

    I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner.
  • Page 5 Warranty/Liability The period of warranty shall be eighteen (18) months, beginning on  the date of purchase. Please retain your receipt as proof of purchase. No responsibility shall be accepted for damage caused through any  of the following reasons: unsuitable or improper storage or use, incorrect installation or commissioning by the owner or third parties, natural wear and tear, changes or modifications, incorrect or negligent handling.

  • Page 6: Emc Guidance And Manufacturer's Declaration

    B. EMC Guidance and Manufacturer's Declaration Guidance and manufacturer’s declaration-electromagnetic emissions The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. Electromagnetic Emission test Compliance...
  • Page 7 Guidance and manufacturer’s declaration-electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that is used in such an environment. IEC 60601 test Compliance Electromagnetic Immunity test level level environment-guidance...
  • Page 8 Recommended separation distance between portable and mobile RF communications equipment and the Device The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the communications equipment.

  • Page 9: Assembly

    II. Assembly Parts Ultrasonic Height Stadiometer Rod A Ultrasonic Height Stadiometer Rod B Parts Included Parts Name Diagram Qty. Phillips round combo screw (for attaching headpiece to metal rod) Round-head screw (longer) (for attaching fixing block to column) Fixing block (for attaching stadiometer to column) Round-head screw (shorter)

  • Page 10: Installation

    A. Installation a. Use 4 longer round-head screws [D] to attach fixing blocks [E] to column.
  • Page 11 b. Use longer round-head screws [D] to attach rod [B] to fixing blocks. c. Use Phillips round combo screw [C] to attach headpiece to rod [A].

  • Page 12: Connecting Height Stadiometer Cable

    d. Slide rubber gasket [G] into rod [A]. Insert rod [A] into rod [B] and use round-head screws [F] to secure rods together. B. Connecting Height Stadiometer Cable Locate 6 pin DIN port on bottom of indicator, and connect transfer cable.

  • Page 13: Using Device

    III. Using Device Stand still and look forward to ensure height measurement accuracy. The device will automatically measure height and transfer result to weighing scale. Indicator will display weight, height and BMI.

  • Page 14: Product Specifications

    IV. Product Specifications Model HM200U Range 120-200 cm Height Graduation 0.1 cm Measurement Accuracy ±1.2 cm Overall 500(L) x 61(W) x 2083(H) mm Dimensions (approximate) Device 1.0kg weight Data Transmission Transfer cable to indicator Operation Temperature & 5℃~35℃ Humidity 15%~85% RH...
  • Page 15 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
  • Page 16 Manufacturer’s Declaration of Conformity This product has been manufactured in accordance with the harmonized EU / UK standards, following the provisions of the below stated directives: Electromagnetic Compatibility Directive 2014/30/EU Electromagnetic Compatibility Regulations 2016 Low Voltage Directive 2014/35/EU Electrical Equipment (Safety) Regulations 2016 RoHS Directive 2011/65/EU and Delegated Directive (EU) 2015/863 CD-IN-00415 REV007 02/2023...
