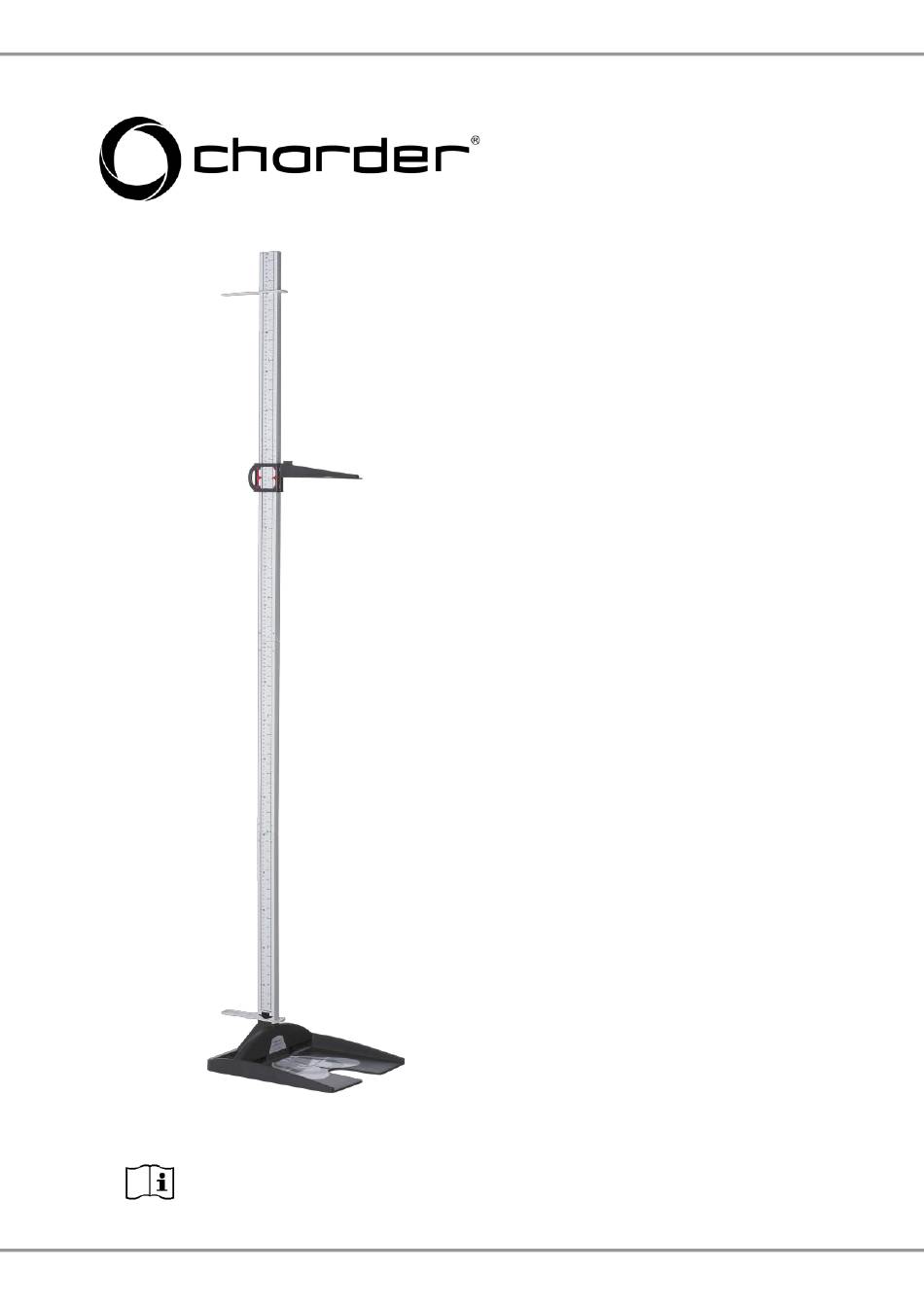

- Page 1 USER MANUAL HM200P Portable Height Stadiometer Please keep the instruction manual at hand all the time for future reference.
- Page 2 Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual. Charder reserves the right to correct misprints in the manual without prior notice, and modify the exterior of the device for quality purposes without customer consent.
-
Page 3: Table Of Contents
CONTENTS I. Safety Notes ................4 A. General Information ..............4 II. Installation ................6 Unpacking the HM200P ..............6 Assembly Instructions ..............7 III. Using Device ............... 9 IV. Product Specifications ............10 V. Declaration of Conformity ............12... -
Page 4: Safety Notes
I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner. - Page 5 Warranty/Liability The period of warranty shall be eighteen (18) months, beginning on the date of purchase. Please retain your receipt as proof of purchase. No responsibility shall be accepted for damage caused through any of the following reasons: unsuitable or improper storage or use, incorrect installation or commissioning by the owner or third parties, natural wear and tear, changes or modifications, incorrect or negligent handling.
-
Page 6: Installation
II. Installation Unpacking the HM200P Height Rod *4 Head stopper Support plate Base platform... -
Page 7: Assembly Instructions
Assembly Instructions 1. Remove support plate 2. Insert Height Rods into base platform in order 3. Ensure that height rods are inserted in the correct order 4. Mount head stopper onto height rod... - Page 8 5. Place support plate on top of height rod 6. Place HM200P against the wall for stability.
-
Page 9: Using Device
III. Using Device 1. Subject should stand up straight with feet within the foot markings 2. Subject's back should tough the height measurement rod slightly. Lower stopper until it touches top of subject's head 3. Read height measurement result in window... -
Page 10: Product Specifications
IV. Product Specifications Model HM200P 14-205 cm Range 5.5-81 in Height 1 mm Graduation Measurement 1/16 in Accuracy ± 10 mm Dimensions Overall 350(W) x 400(D) x 2430(H) mm Device Weight 2.0 kg / 4.4 lb (approximate) (carry case 0.6 kg / 1.3 lb) Operation Temperature &... - Page 11 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
-
Page 12: Declaration Of Conformity
93/42/EEC as amended by 2007/47/EC Medical Device Directive Classification: Class I with measuring function RoHS Directive 2011/65/EU and Delegated Directive (EU) 2015/863 Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 41262 Taiwan (R.O.C.) CD-IN-1046 8039P 2022/06...
