Manufacturer's Declaration of Conformity
This product has been manufactured in accordance with the
harmonized European standards, following the provisions of the
below stated directives:
93/42/EEC as amended by
2007/47/EC
Medical Device Directive
Please see separate document showing on sticker of device for
above CE marking.
Authorized EU Representative:
Manufactured by:
Charder Electronic Co., Ltd.
No.103, Guozhong Rd., Dali Dist.,
Taichung City 412, Taiwan (R.O.C.)
CD-IN-1047 [8040N]
27

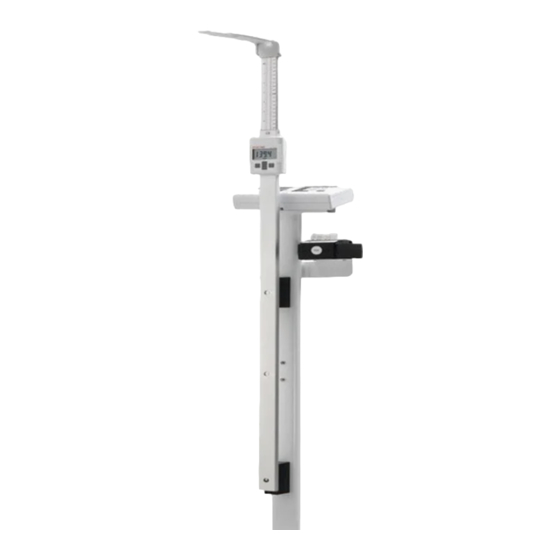

HM200D
HM201D
Please keep the instruction manual at hand all the time for future reference.
HM210D
HM 200/201/210D
Height Measurement
USER MANUAL
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Charder HM200D
Summary of Contents for Charder HM200D
- Page 1 2007/47/EC Medical Device Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City 412, Taiwan (R.O.C.) HM200D HM201D HM210D HM 200/201/210D...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PREFACE ....................2 SAFETY INSTRUCTION ................ 2 CLEANING ....................3 INTENDED USE ..................3 MAINTENANCE ..................3 SAFETY INSTRUCTIONS ..............3 WARRANTY.................... 4 Explanation of Graphic Symbols ............... 5 SPECIFICATION ..................6 KEY FUNCTIONS ................... 7 PRODUCT INTRODUCTION ..............8 INSTALLATION INSTRUCTIONS ............ -
Page 3: Preface
5,000 times during measuring, it might cause sliding off automatically. We suggest changing to a new height rod based on frequencies of use If you have any problem, please contact your local CHARDER MEDICAL service partner. -
Page 4: Cleaning
The devices do not require any routine maintenance. However, we recommend checking the accuracy at regular intervals. The regularity of these checks is dependent on the level of use. If any inaccuracies occur, please contact your local dealer or CHARDER MEDICAL service partner. SAFETY INSTRUCTIONS... -
Page 5: Warranty
Put the batter cover back. A claim under warranty will not be honored it the equipment is opened by persons not expressly authorized by Charder to do so. Note: HM 201D don’t need batteries to operate; it starts working as We would ask our customers abroad to contact their local sales it is connected with DP3400 or DP37xx indicator. -
Page 6: Explanation Of Graphic Symbols
Connect HM 201D with indicator (Picture-1) Turn ON the scale by pressing ON/OFF key(Picture-2). Press BMI key to check current height. Explanation of Graphic Symbols Sliding the measuring rod downward completely (Picture-3). If the height display is not ‘120cm’, press Reset button to calibrate the height. -
Page 7: Specification
CALIBRATING HEIGHT ROD SPECIFICATION 1. HM 200D Model HM 200D HM 201D HM 210D Scale mounted digital Wall mounted Type height rod digital height rod Hold, Keys Reset Button Hold, Reset, Unit Reset, Unit 120~200cm (Digital measuring Sliding the measuring rod downward completely (Picture-1) Measurement range) 120~200cm... -
Page 8: Key Functions
3. HM 210D KEY FUNCTIONS HM-200D HM-210D 120~200cm x 1mm 100~210cm x 1mm UN IT UN IT UN IT RESET RESET RESET OF F H OLD HO LD HO LD KEYS DESCRIPTION ON/OFF Press to switch on and off. To select the measurement unit between cm, UNIT ft/inch and inch. -
Page 9: Product Introduction
BMI results. HM 201D HM 201D is a digital height rod to be mounted on the Charder Scale with measuring range of (120~200cm), HM 201D don’t have LCD display, instead it automatically transfers the height measurement to weighing scale, therefore while Sliding the measuring rod upward. - Page 10 The height result will remain on the display. For Detailed BMI procedure, please refer to any of ‘Charder’s’ weighing scale user manual. Sliding up the measuring rod upward. Sliding down the head piece until slightly touches head.
-
Page 11: Installation Instructions
Flat head screw M5*0.8*10 Read The Height Here!!! Cross head For people who wants to use M5*30 screw it as mechanical height rod. HM200D / HM201D/ HM201M standard accessories for scale with castors Accessories Item Spec. Qty. Bracket for SS-5721... - Page 12 HM210D standard accessories (wall mount parts) ASSEMBLY OF HM 210D Accessories Item Spec. Qty. Supported WH-8026 Block Washer head M5*0.8*11 screw Self tapping M4*30 screw Plastic anchor 1”(white) HM210D standard accessories (Heel plate parts) Accessories Item Spec. Qty. Plastic plug SW-8069 Rubber tub SS-8152...
- Page 13 HM201M is mechanical height rod which has same assembly procedure with HM200D/201D. HM200D/201D Step 2. Fix HM200D/ 201D/ 201M on the bracket and tight the screw ASSEMBLY OF HM 200D & HM201D Fixing the bracket on the column of the scale using the screws provided with the height rod.
- Page 14 For measure height lower than 120 cm Assemble HM200D/201D/201M on the scale with wheel castors. Please use HM 201D as a mechanical scale and press buckle as shown in the picture below and slide the head piece down. Step 1. Fix two brackets on the column.
