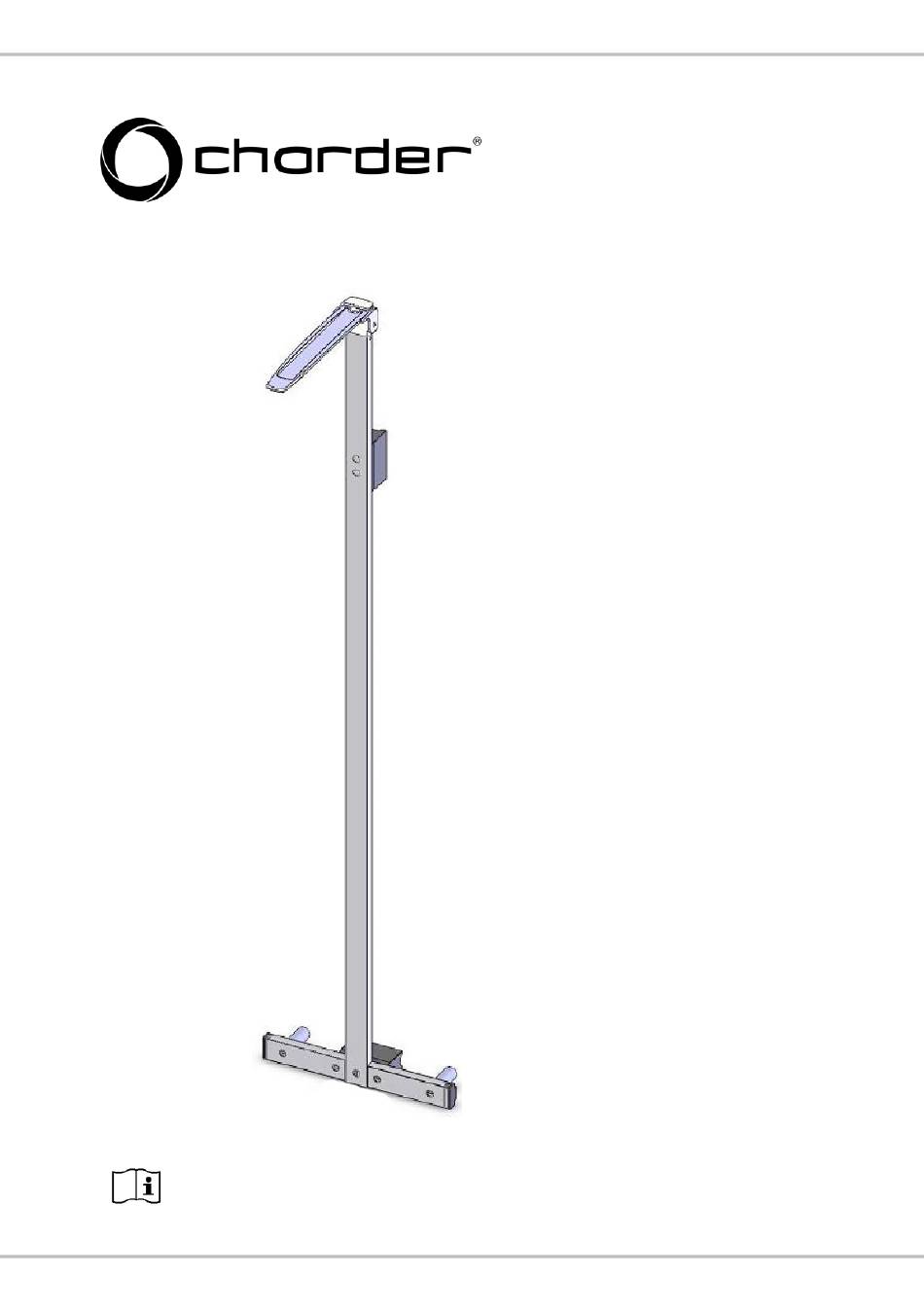

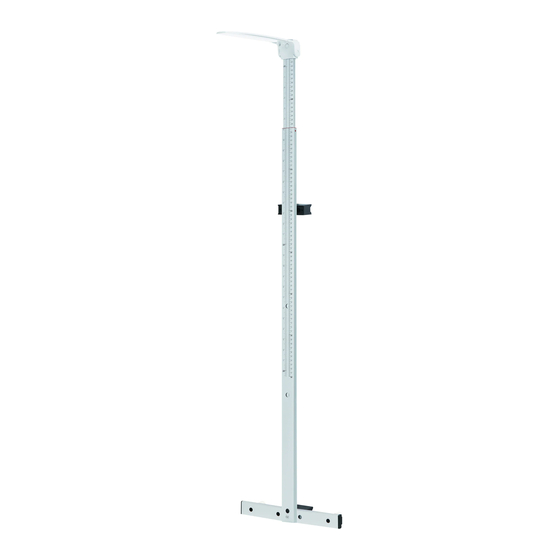

- Page 1 USER MANUAL HM230M Height Meter Please keep the instruction manual at hand all the time for future reference.
- Page 2 Charder Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any damage caused by a failure to adhere to requirements stated in this manual. Charder reserves the right to correct misprints in the manual without prior notice, and modify the exterior of the device for quality purposes without customer consent.
-
Page 3: Table Of Contents
CONTENTS I. Safety Notes ................4 A. General Information ............4 II. Installation ................5 Parts ..................5 Attaching height rod to wall ............. 6 III. Using Device ............... 9 IV. Product Specifications ............10 V. Declaration of Conformity ............12... -
Page 4: Safety Notes
I. Safety Notes A. General Information Thank you for choosing this Charder Medical device. It is designed to be easy and straightforward to operate, but if you encounter any problems not addressed in this manual, please contact your local Charder service partner. -
Page 5: Installation
II. Installation Parts Component Measuring rod Screws to fix heel plate Self-tapping screws for wall-mount block Flat head screws to fix measuring rod on wall-mount block Heel plate Plastic anchor Wall-mount block... -
Page 6: Attaching Height Rod To Wall
Attaching height rod to wall 1. Fully extend height rod 2. Fasten wall mount block using flat head screws Screw Size: M5 x 0.8 x 10... - Page 7 3. Drill holes into wall, and insert 4. Fasten heel plate (continue to plastic anchor into hole. Proceed next section for details) to fasten self-tapping screw into the anchor. Screw Size: Screw Size: M4 x 30 M4 x 12...
- Page 8 Assembling heel plate 1. Drill two holes into wall for wall-mount block 2. Insert plastic anchors into holes 3. Attach height rod to wall-mount block using plastic anchors 4. Attach rubber tub and heel plate with two self-tapping screws 5. Attach heel plate to wall-mount block with two self-tapping screws No.
-
Page 9: Using Device
III. Using Device Buckle Subject height between 130-230 cm Height reading should be taken at point 1. Subject height under 130 cm For subjects shorter than 130 cm, press buckle down, press the buckle and push down on the headpiece. Height reading should be taken at point 3. -
Page 10: Product Specifications
IV. Product Specifications Model HM230M 10-230 cm Range 4-90.5 in Height 1 mm Graduation Measurement 1/16 in Accuracy ± 10 mm Dimensions Overall 310(W) x 50(D) x 2300(H) mm Device Weight About 1.15 kg Operation Temperature & 5℃~35℃ Humidity... - Page 11 Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
-
Page 12: Declaration Of Conformity
93/42/EEC as amended by 2007/47/EC Medical Device Directive Please see separate document showing on sticker of device for above CE marking. Authorized EU Representative: Manufactured by: Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist., Taichung City, 41262 Taiwan (R.O.C.) CD-IN-1235 12189J 04/2021...
