Omtech LYF-20MP User Manual page 42

5 Operation
5.3 Rotary Axis Processing
5.3.1 Installing the Rotary Axis

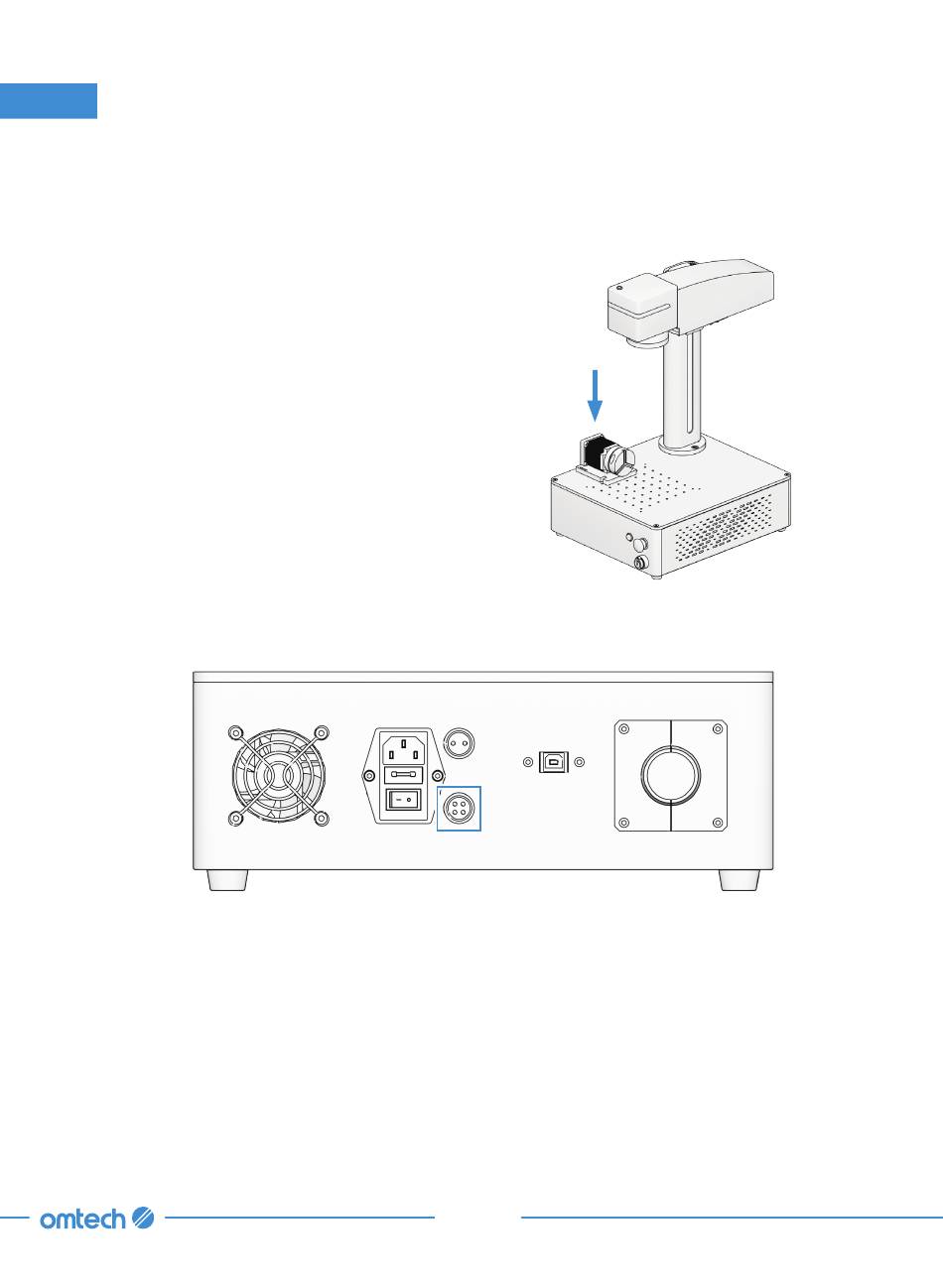

1. Install the rotary axis on the worktable and
place a piece of sample material on the
rotary axis.
2. Connect the 4-receptacle rotary cable to the rotary axis port.
3. Turn on the machine and then the red light guider. (See
4. Focus the laser. (See §5.2.2 Focusing on Page
§5.2.1 Turning on the Machine
29)
37
on Page 27)
