4 Installation
5. (Optional) Install the positioning bars onto the worktable.
They can be left in place for all your projects or can be moved around to suit different projects.
a. Simply place the bars over the holes that will form the outer edge of the target material.
b. Fasten the positioning bars into place
with the provided bolts.

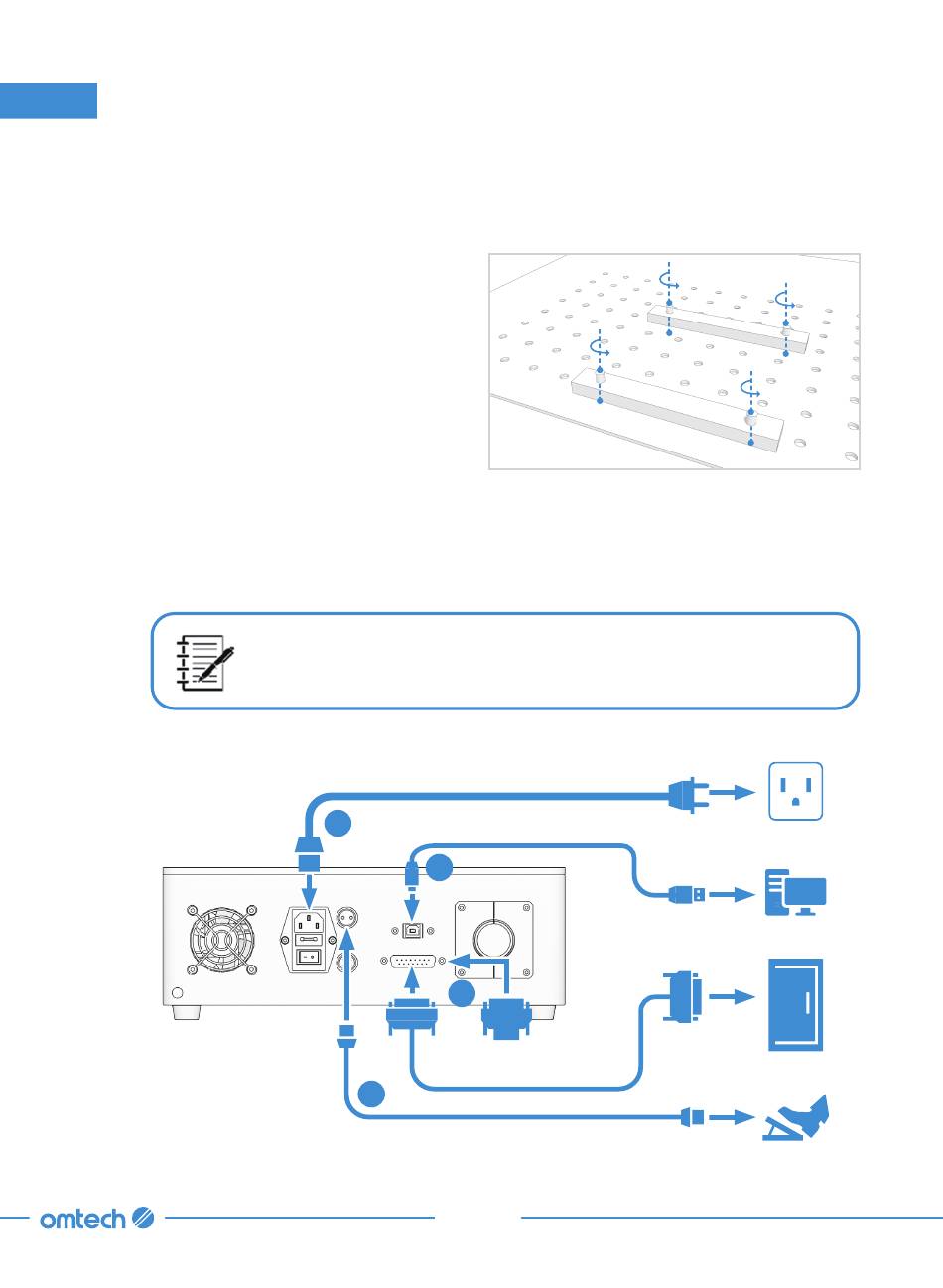

6. Make ALL necessary connections BETWEEN the various components.
a. Connect the machine to the power supply with the provided power cord.
b. Connect the machine to your computer with the provided USB cable.
c. Plug the provided remote control terminal into the remote control port.
If you have your own protective cover, plug in your cover instead.
d. (Optional) Connect the foot pedal cable to the foot pedal port.
a
b
c
or
Remote Control
Terminal
d
19
Power Supply
Computer
Protective Cover
Foot Pedal
