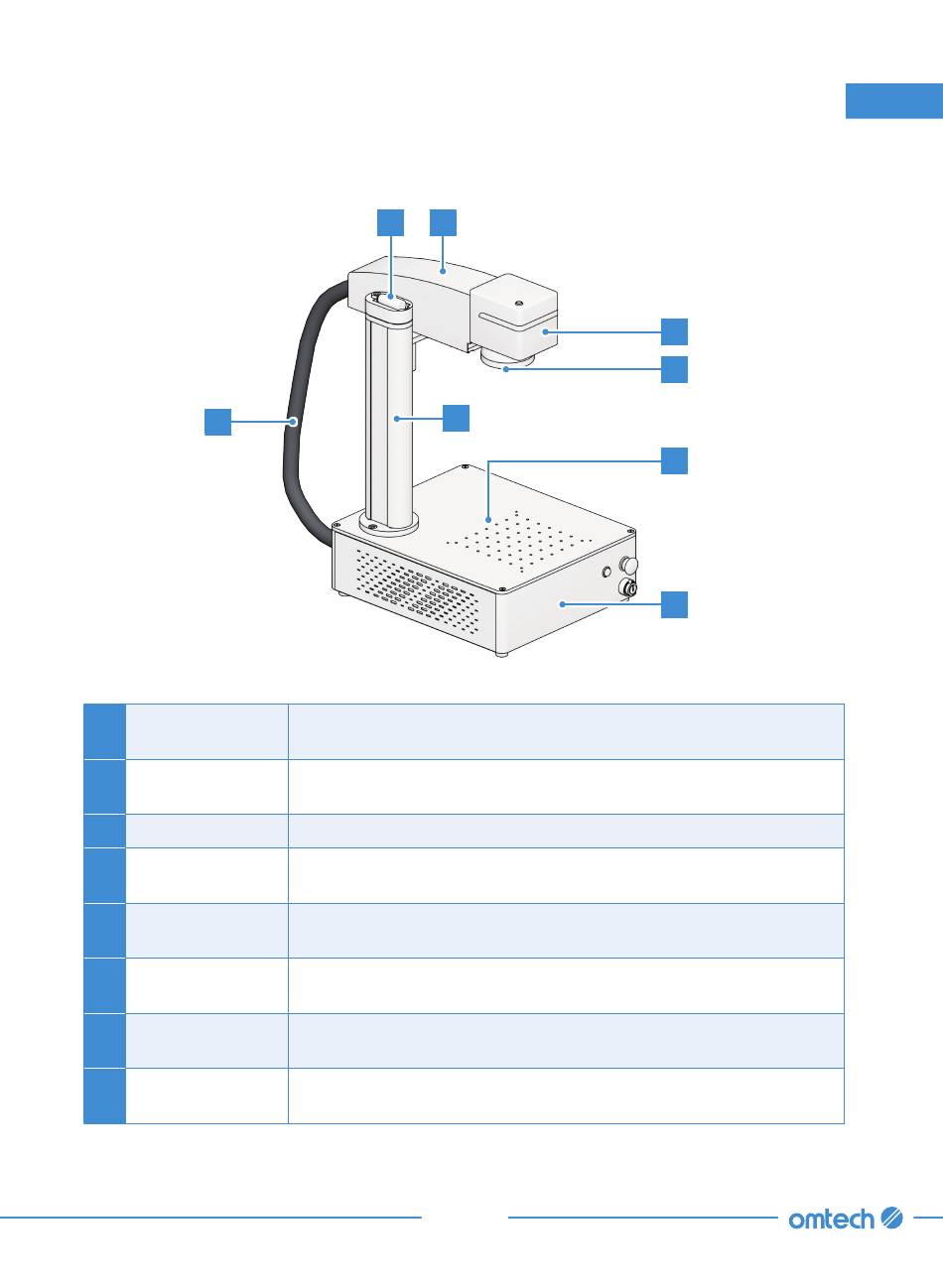

3.1 Main Parts
H
Height
A
Adjustment Wheel
Support Column
B
C Laser Arm
D Galvo Lens Head
E Field Lens
F Worktable
Control Box
G
H Laser Cable
A C
B
Moves the laser arm up and down for the correct alignment across
different materials and thicknesses.
Holds the laser arm and includes a precise graduated ruler for quickly
adjusting the height to work with different materials and thicknesses.
Secures the galvo lens and moves it along the support column.
Focuses the laser beam to a fine point, directing it to proper locations
on the target material during engraving.
Creates vivid markings on flat surfaces by maintaining a consistent,
focused laser spot size across its working area.
Holds the target material. Optionally, use it with positioning bars for
more precise alignment.
Houses the control system and various electronics that are responsible
for controlling and managing the operation of the machine.
Transmits laser beam emitted from the laser source, electrical power,
and control signals between the main tower and the laser arm.
12
3 Components
D
E
F
G
