4.4 Assembly

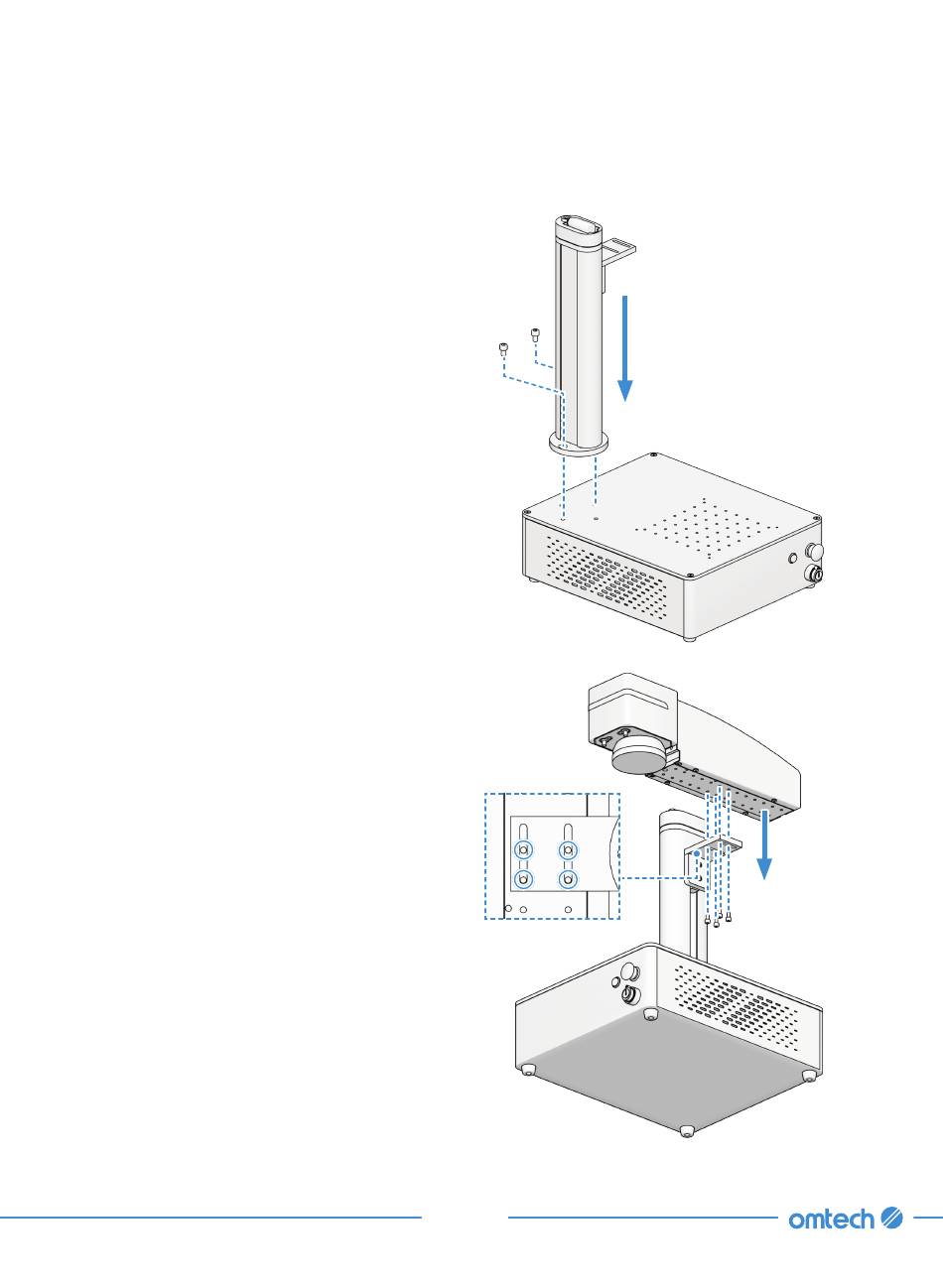

1. Align the two holes on the bottom of the
support column with the corresponding
holes on the worktable.
2. Insert and tighten 2 screws to fix the support
column by using the provided
3. Place the laser arm on the mounting bracket of
the support column and align the holes on the
laser arm with the holes on the bracket while
confirming that the scanning head is above the
center position of the processing area.
4. Insert and tighten 4 screws to fix the laser
arm by using the provided hex wrench.
hex wrench.
