BRONKHORST FLEXI-FLOW Compact Instruction Manual page 8

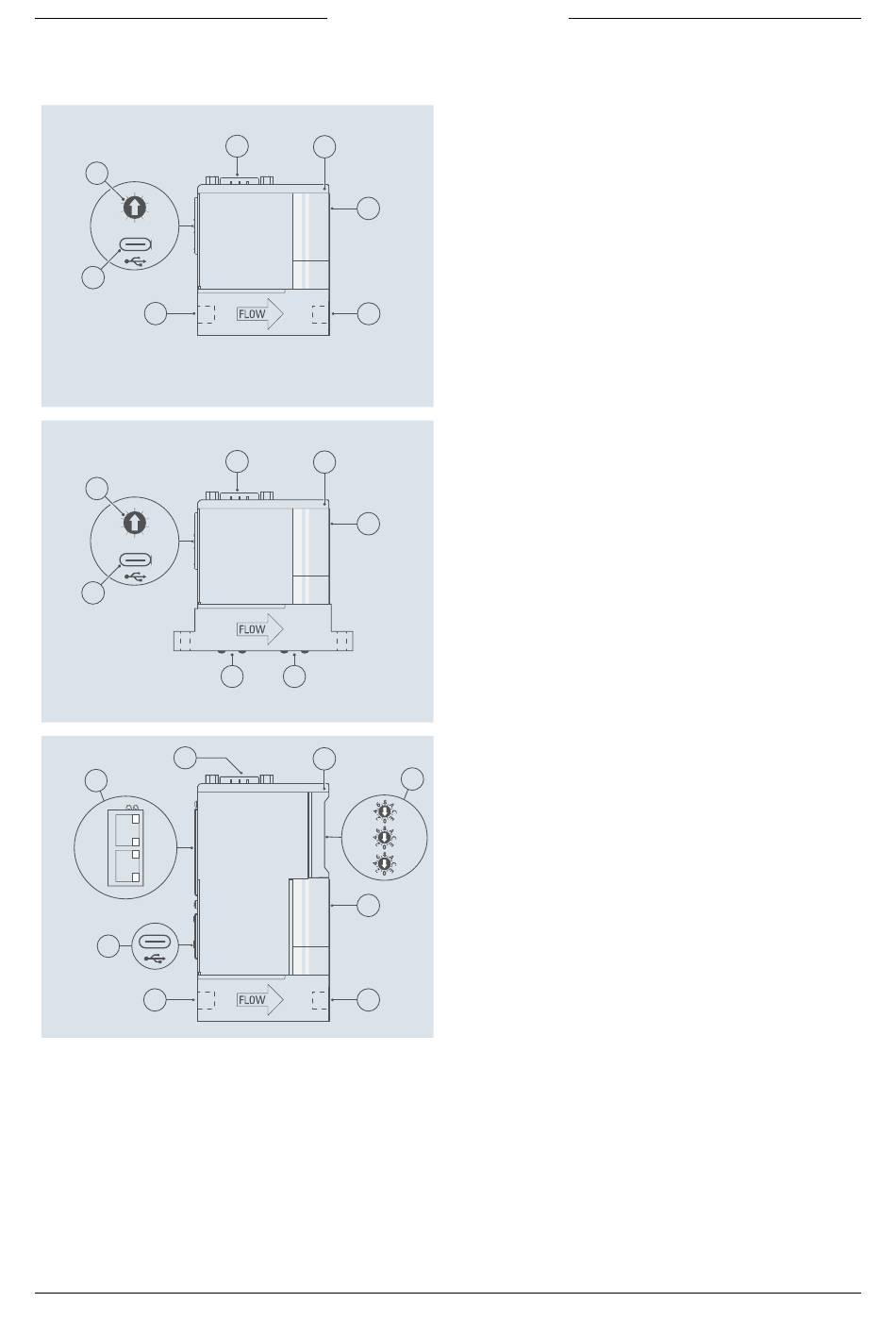

1.4 Product overview
3
0
9 1
2
8
3
7
4
6 5
2
1
3
0
9 1
2
8
3
7
4
6 5
2
4
3
2
1
8
4
5
6
7
4
5
6
1 7
5
7
8
Instruction Manual FLEXI-FLOW™ Compact
Bronkhorst®
FF-ann / FF-Sxxx / FF-Axxx
1. Fluid inlet
2. Support interface (USB-C)
3. Address selector
4. Power and signal connector (9-pin D-sub)
5. Status LED
6. Control valve (only MFC)
7. Fluid outlet
FF-annD (down ported fluid connectors)
1. Fluid inlet
2. Support interface (USB-C)
3. Address selector
4. Power and signal connector (9-pin D-sub)
5. Status LED
6. Control valve (only MFC)
7. Fluid outlet
FF-ann / FF-annD with Ethernet interface
1. Fluid inlet
6
2. Support interface (USB-C)
3. Ethernet interface
4. Power and signal connector (9-pin D-sub)
5. Status LED
6. Address selectors
7. Control valve (only MFC)
8. Fluid outlet
9.17.158G
