4 Installation

4.4 Assembly

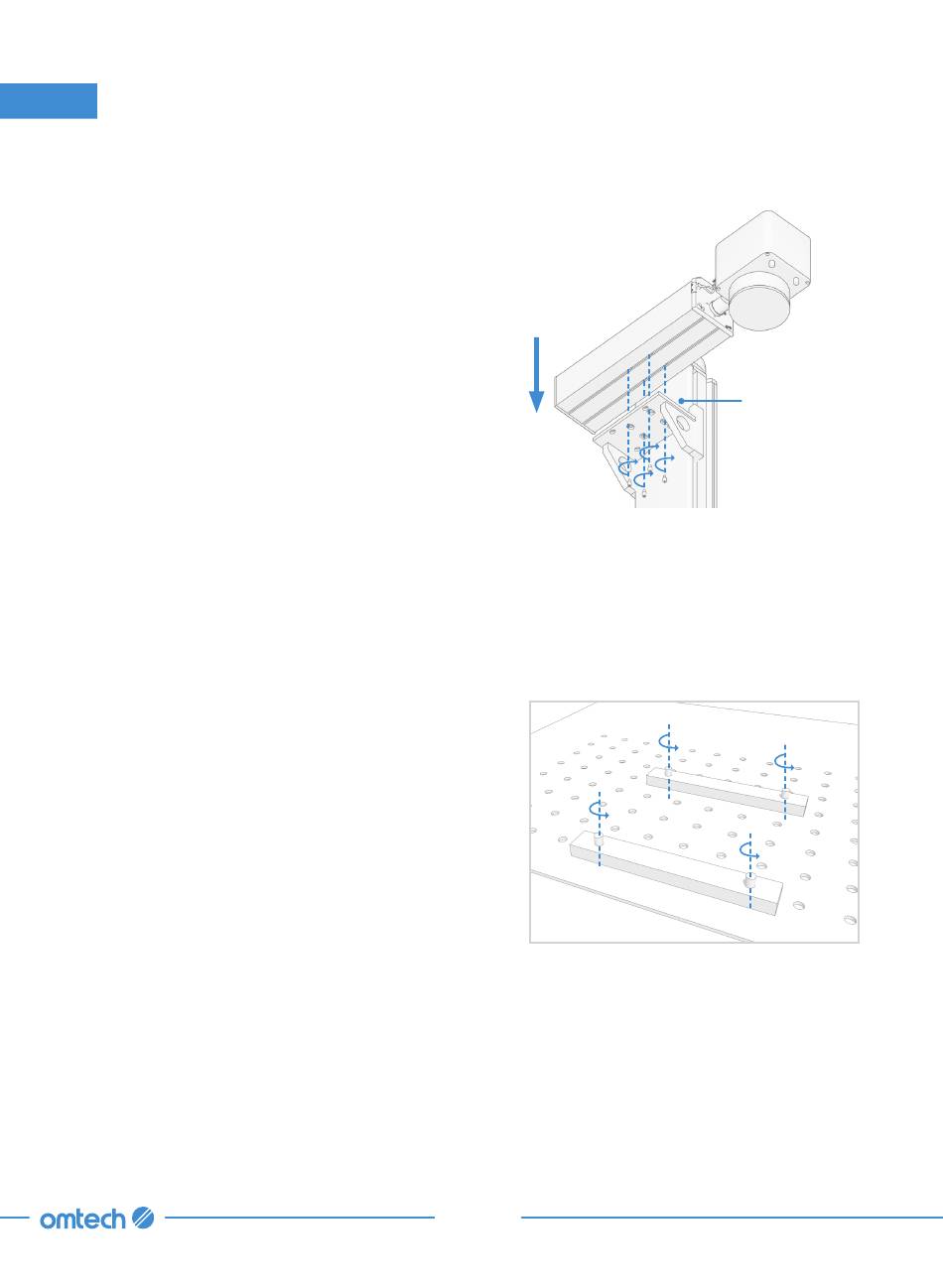

1. Assemble the laser arm onto the support
column.
a. M ove t h e m o u n t i n g b r a c k e t o f t h e
support column to the highest by rotating
the height adjustment knob.
b. Take out the provided four bolts on the
mounting bracket of the support column.
c. Secure the laser arm by aligning the four
holes on the laser arm with the holes in
the mounting bracket and threading the
four bolts into place with the provided
hex wrench.
2. Check that all connections are firm, tightening if necessary.
3. Use the handles to move the main tower to the location you have selected. It is highly
recommended to use two or more people to minimize the risk of dropping the machine.
4. (Optional) Install the positioning bars onto
the worktable.
They can be left in place for all your projects
or can be moved around to suit different
projects.
a. Simply place the bars over the holes that
will form the outer edge of the target
material.
b. Fasten the positioning bars into place
with the provided bolts.
21
Mounting Bracket
