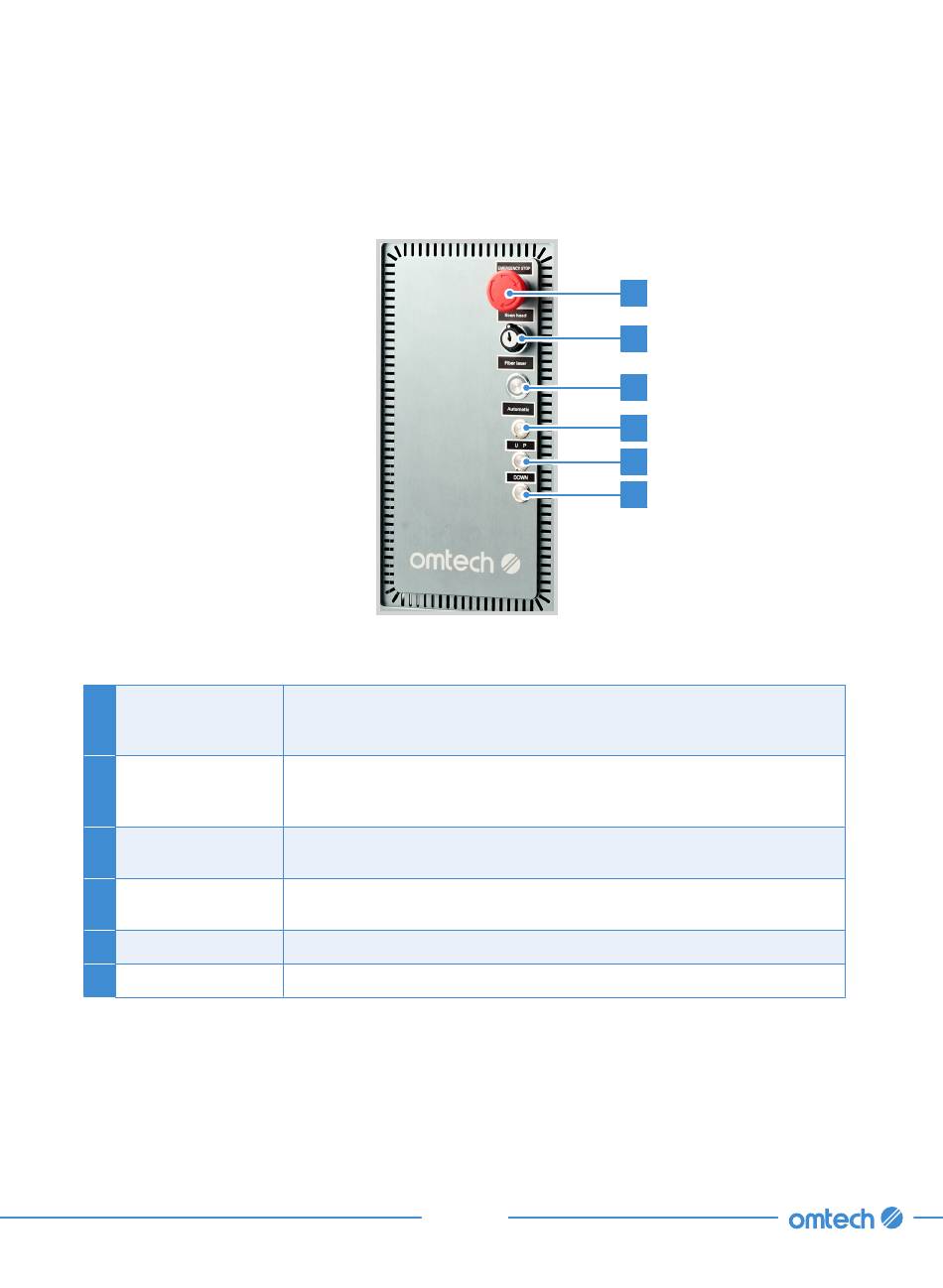

3.3 Control Panel

Emergency Stop
A
B Galvo
C Laser
D Autofocus
E Up
F Down
This button immediately cuts all power to the laser in the event of
an emergency. Rotate it up first during startup and push it down last
during shutdown.
This lock controls power to the motorized mirrors inside the galvo head
on the laser arm. Unlock it second during startup and relock it second
during shutdown.
This button activates the fiber laser source. Press this last during
startup and first during shutdown.
This button activates automatic focusing of the laser. Only use it once
your material has been placed under the laser.
This button moves the laser arm up.
This button moves the laser arm down.
