3 Components

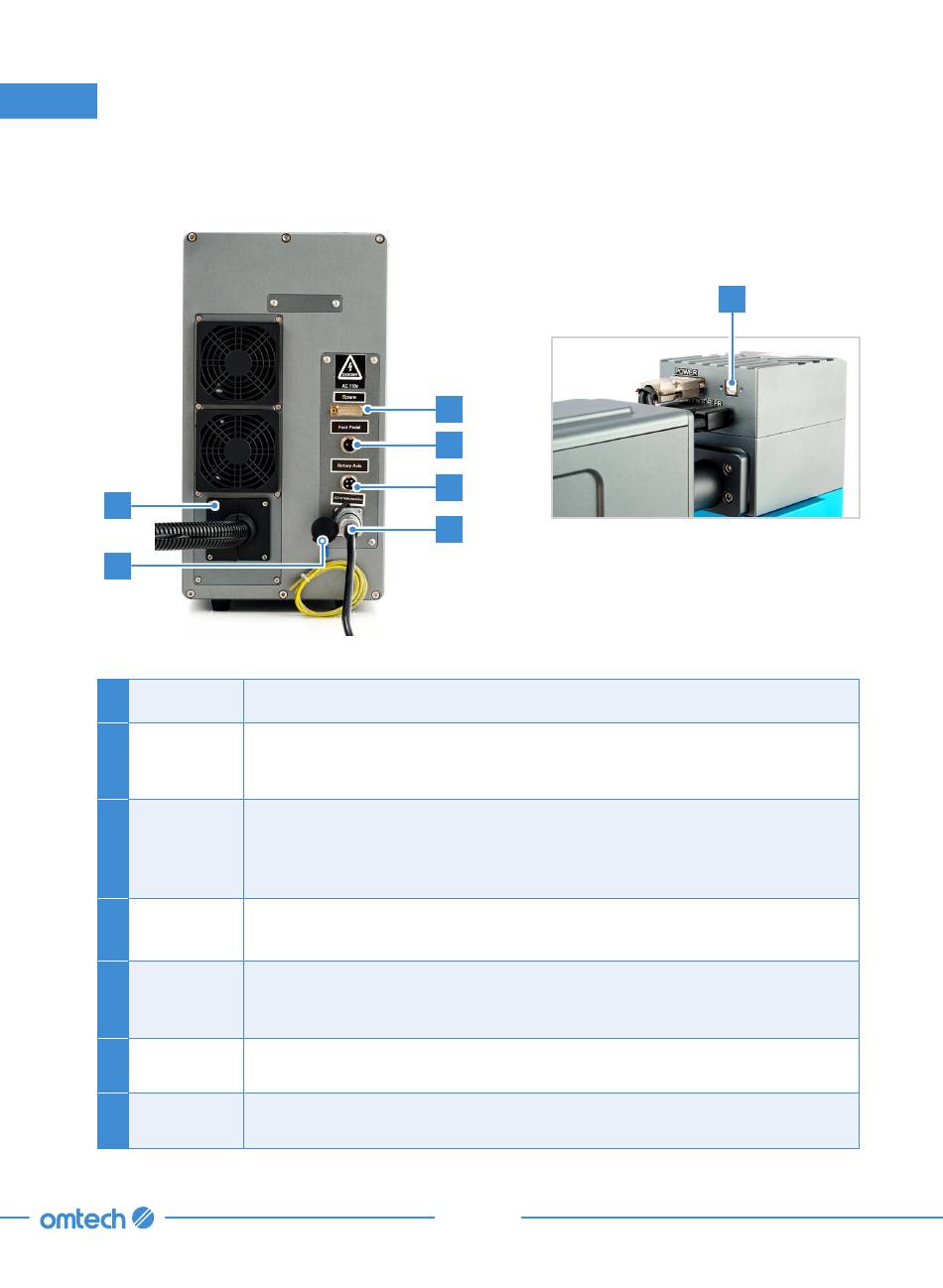

3.4 Connection Inputs

A
B
A
Laser Cable
This transmits the laser beam from its source to the collimator in the laser arm.
This bracket can be used to enable an optional secondary grounding cable or
Grounding
B
the necessary primary grounding cable when well-grounded 3-prong outlets
Cable Input
are unavailable.
This male 15-pin connection should be used to receive interlock signals from
compatible protective enclosures (sold separately). When the enclosure is
C
DB15 Input
opened, the signal will then immediately cut power to the laser to prevent
damage or injury from reflected beams.
Foot Pad
This 2-pin connection should be used to receive firing commands from the
D
Input
provided foot pad trigger.
This 4-pin connection can be used to control compatible rotary axes (sold
Rotary Axis
E
separately). Place the rotary axes on the workbed beneath the galvo head,
Cord Input
connect its cable here, and then enable rotary control through your software.
Power Cord
F
This 3-pin connection connects to the device's standard 3-prong power cord.
Input
USB Cable
The control computer's USB cable connects to a port on the back of the galvo
G
Input
head, which holds the engraver's mainboard.
C
D
E
F
17
G
