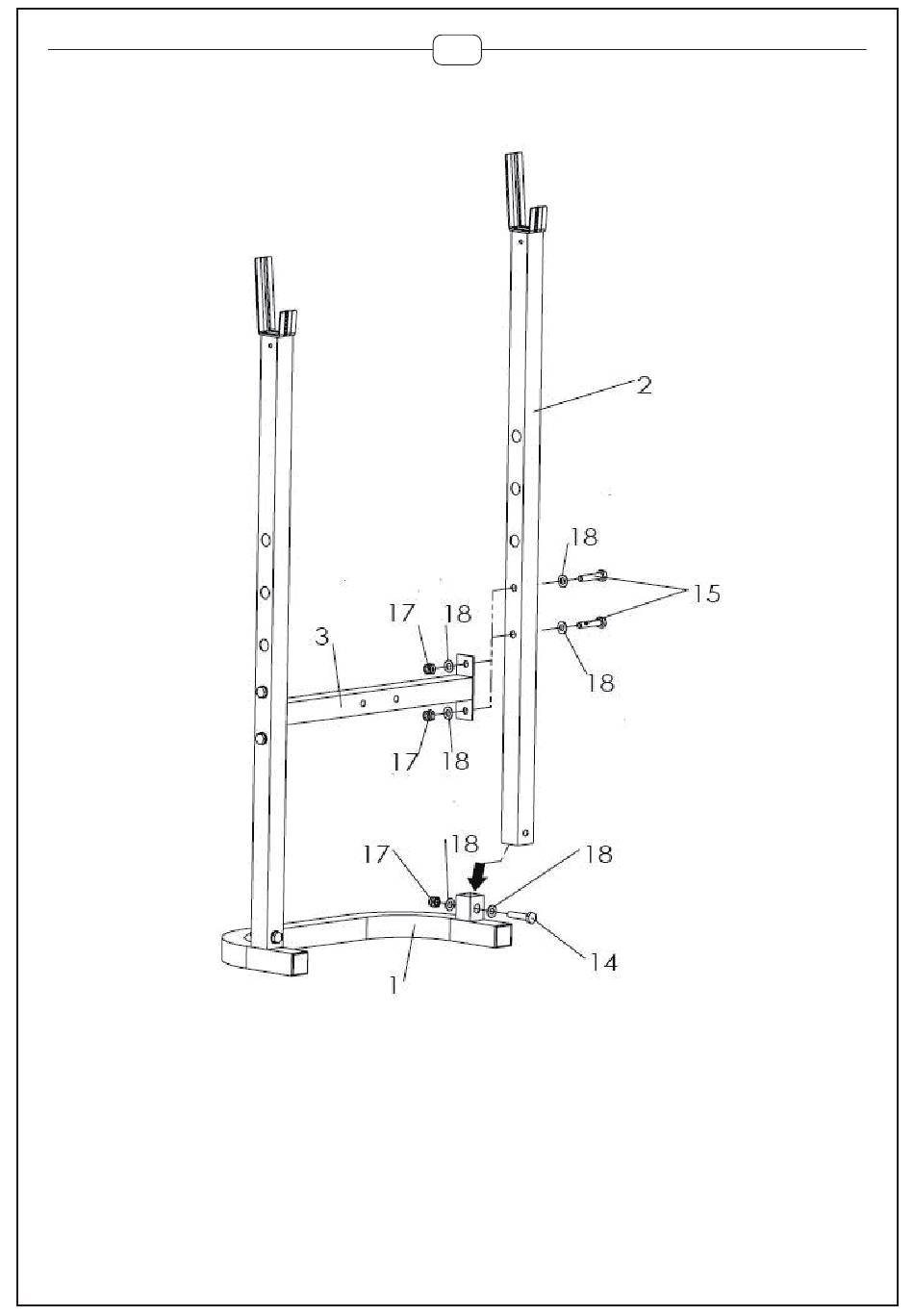

STEP 1
1) Attach one side of Weight Support Tube (02) onto Rear Stabilizer (01), fastened with x
1 Hex head(14), x 2 Washer(18) and x 1 Nylon nut(17).
Use the same way to assembly another Weight Support Tube (02).
2) Attach the Connect tube (03) onto Weight Support Tube (02), fastened with x 2 Hex
Head Bolt (15), x 4 Washer (18) and x 2 Nylon nut (17).
Use the same way to assembly another side of Connect tube (03).
EN
ASSEMBLY STEPS
