5.5 Diode Testing with Constant Current of 1 mA
➭ Disconnect supply power from the electrical circuit of the
device to be measured, and discharge all high-voltage
capacitors.
➭ Make sure that the device under test is voltage-free.
Interference voltages distort measurement results!
Refer to section 5.2.1 regarding testing for the absence of volt-
age with the help of the direct voltage measurement.

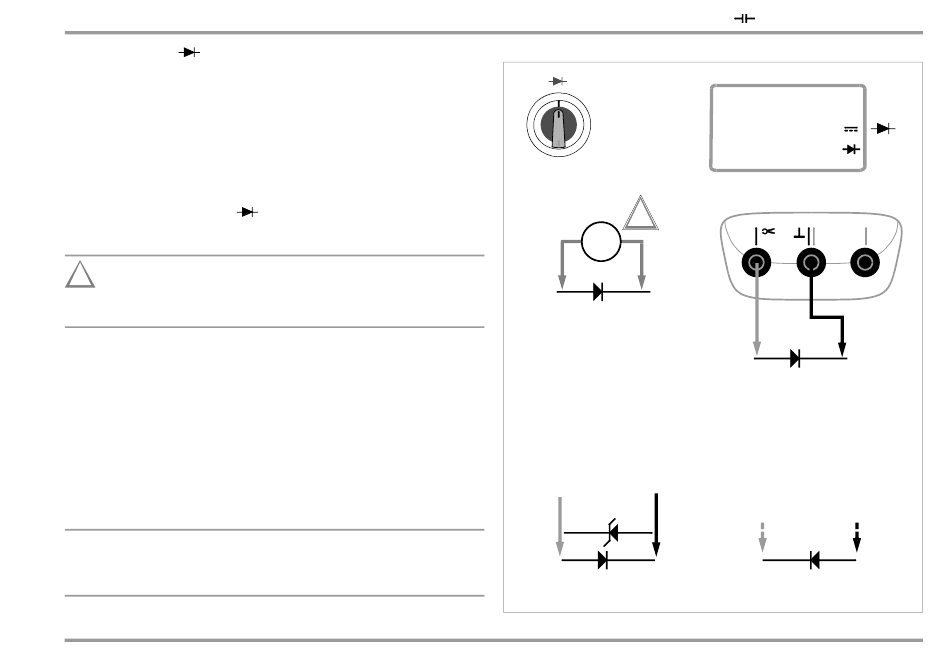

➭ Set the rotary switch to
➭ Connect the device under test as shown.
!
Attention!
Observe open-circuit voltage of 7 V during diode testing.
Circuits must be laid out accordingly.
Forward Direction and Short-Circuit
The instrument displays forward voltage in volts (display:
4 places). As long as voltage drop does not exceed the maximum
display value of 6 V, several series connected components or
reference diodes can be tested with a small reference voltage and
Z-diodes.
Reverse Direction and Interruption
The measuring instrument indicates overload 0L.

Note
Resistors and semiconductor paths connected in parallel to
the diode distort measurement results!
