V/Hz, , Temperature,
and A/Hz Measurements
5.2.1 Direct Voltage Measurement, V DC

Note
Set the CL iP parameter to 0FF in the current clamp setup
menu. Otherwise all measured values are displayed in mA,
corrected by the amount resulting from the selected transfor-
mation ratio for an interconnected current clamp sensor.
MEAS / CAL
1nFo  
...
SETUP
OUT
1 / 10/100/1000 / 0ff
ENTER
➭ In accordance with the voltage to be measured, turn the rotary
switch to V .

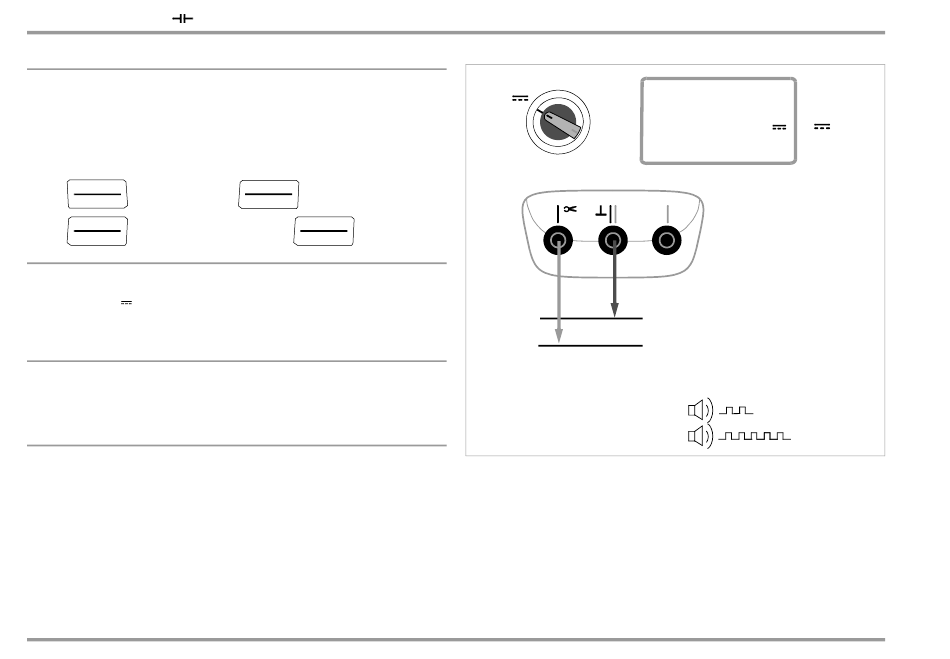

➭ Connect the measurement cables as shown.
The "" connector jack should be grounded.

Note
An intermittent acoustic signal warns the operator if the
measured value exceeds the upper range limit in the
300 V range.
Make sure that a current measuring range ("A") has not been acti-
vated, when the multimeter is connected for voltage measurement!
If the fuse's blowing limits are exceeded as a result of operator
error, both the operator and the instrument are in danger!
With the rotary switch in the V position, the multimeter is always in
the 1 V measuring range immediately after it is switched on. As
soon a the MAN / AUTO key is pressed, and assuming the
measured value is less than 310 mV, the multimeter is switched to
the mV measuring range.
28
OUT
time
SET   CL IP
...
ENTER
OUT

ENTER
V
020.00
+ – +
– (+)
+ (–)
Warnings regarding dangerous voltages:
> 33 V AC or > 70 V DC :
MB 300 V > 310 V:
V
DC
V
Measuring ranges:
V= : 60mV / 30mV /
3 V / 30 V / 300 V
(2x)
...
