Autel MaxiSys MS906 MAX Quick Reference Manual page 2

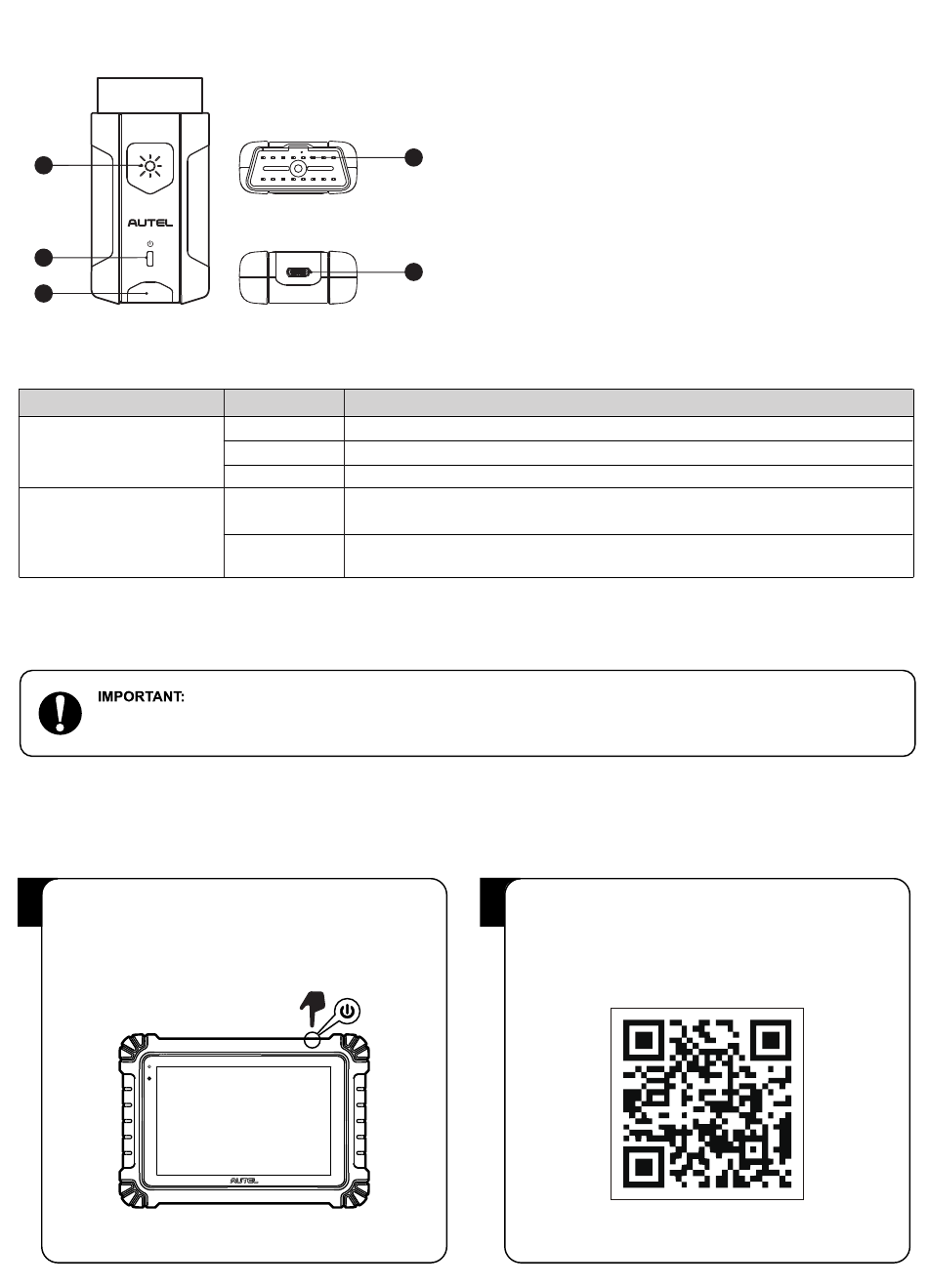

Vehicle Communication Interface — MaxiVCI V200
1
2
3
VCI LED Description
LED
Power LED
Vehicle/
Connection LED
Getting Started
Before operating or maintaining this unit, please read these instructions carefully, paying extra attention to the
safety warnings and precautions. Failure to use this product properly may cause damage and/or personal injury and will void
the product warranty.
1
• Press and hold the Power/Lock button to turn on the tablet.
Ensure the tablet has a charged battery or is connected to
power supply using the supplied power adapter.
4
5
Color
Yellow The VCI is powered on and performing self-check.
Green The VCI is ready for use.
Flashing Red The firmware is updating.
• Solid Green: The VCI is connected via USB cable.
Green
• Flashing Green: The VCI is communicating via USB cable.
• Solid Blue: The VCI is connected via Bluetooth.
Blue
• Flashing Blue: The VCI is communicating via Bluetooth.
1. Flashlight Power Button
2. Power LED — refer to VCI LED Description for details.
3. Vehicle/Connection LED — refer to VCI LED Description
for details.
4. Vehicle Data Connector (16-pin)
5. USB Port
Description
2
• Scan the QR code below to visit our website at
pro.autel.com.
• Create an Autel ID and register the product with its serial
number and password.
