Feature Description
Drives Two 2.5" storage drives
M.2 Slot for M.2 SSD memory card
Chipset Intel C266 chipiset
SATADOM SATA port that supports disk-on-module (DOM)
Add-on Module (MBI-311C-1C2) 3008 SAS controller
Memory DIMM slots
CPU Processors and heatsinks
Service/Asset Tag Pull-out identifier (with BMC ADMIN
Latch Lever

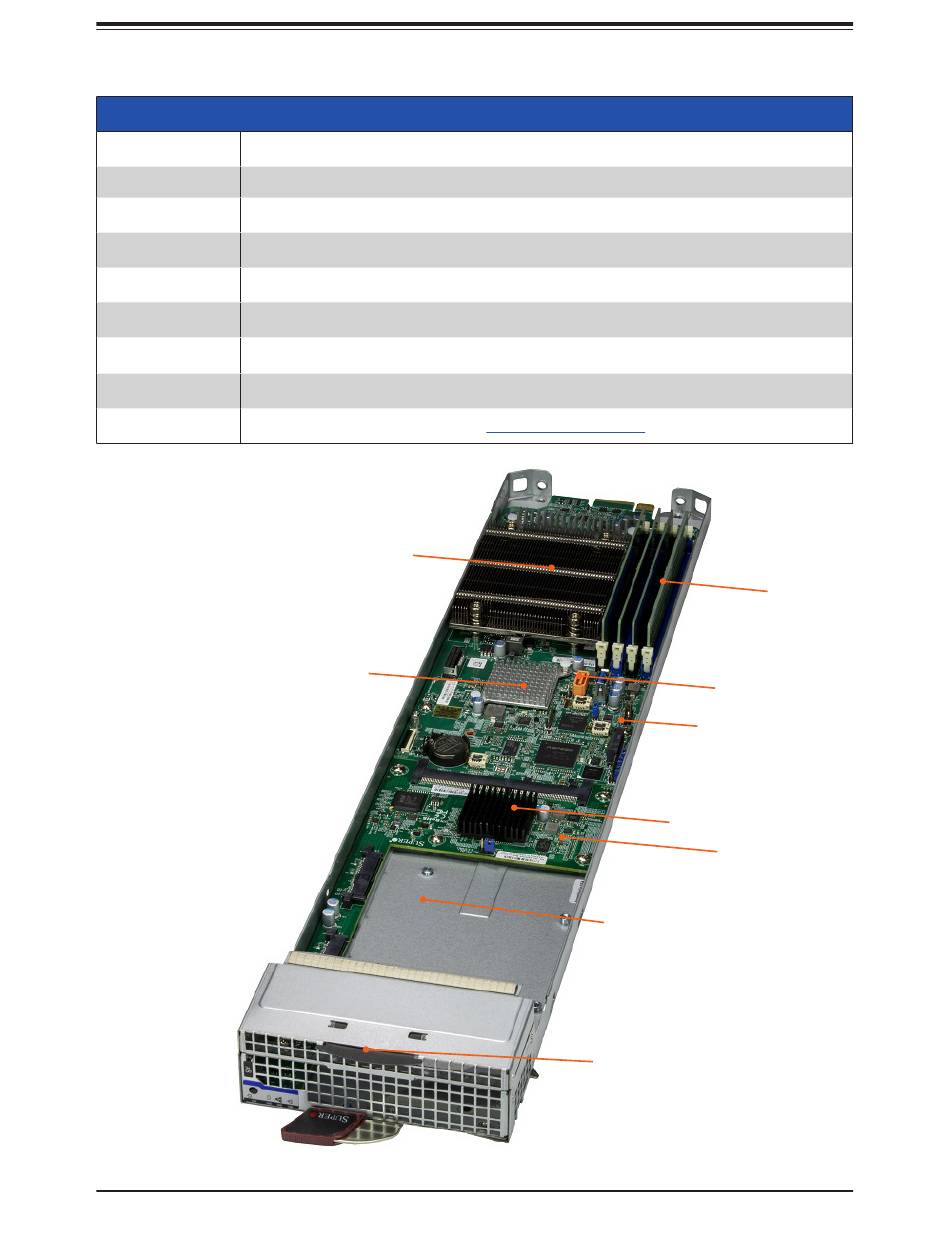

Figure 1-4. Components Labeled (MBI-311C-1C2 model shown)
CPU and Heatsink
Chipset
default password sticker)
Storage Drive
Service/Asset Tag
12
Chapter 1: Introduction
DIMM Slots
SATADOM
M.2 Slot
3008 SAS Controller
Add-on Module
