- Page 2 Het Sterrenbeeld 28, 5215 ML, ‘s-Hertogenbosh, The Netherlands Tel: (408) 503-8000, Fax: (408) 503-8008 Tel: +31-(0)73-640 0390, Fax: +31-(0)73-641 6525 Email: marketing@supermicro.com Email: sales@supermicro.nl ©2008 Super Micro Computer, Inc. Specifications subject to change without notice. All other brands and names are the property of their respective owners.

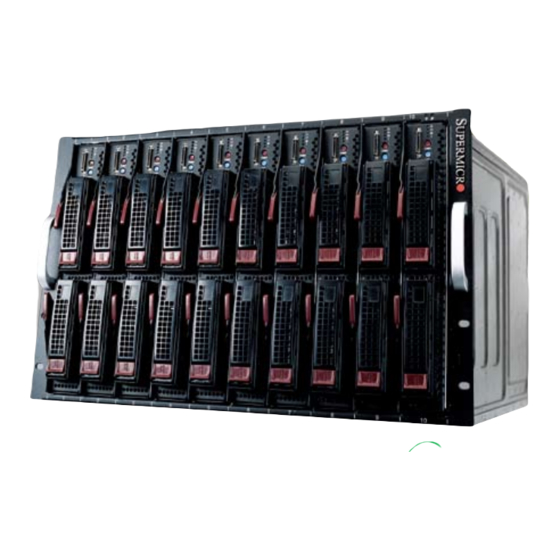

- Page 3 Six enclosures per 42U standard rack High Efficiency N+1 redundant power supplies Chassis management modules Gigabit Ethernet switch modules 4x DDR InfiniBand switch modules (20 Gb/s x2) Application-Optimized for: Enterprises, Financial Services, Databases, Data Centers Research Labs, High Performance Computing, Offices...
- Page 4 Why SuperBlade With advanced product design and uncompromising quality control, Supermicro provides the industry with a wide range of products that feature high-performance, high reliability and cost effective solutions. Supermicro’s first-to-market server platforms offer fully optimized functionality and compatibility for mission-critical applications. All of Supermicro’s technologically advanced server solutions pass a strict validation process, providing our customers with peace of mind so they can focus on growing their business.
- Page 5 For more computation-intensive applications, the SuperBlade Supermicro also offers low-noise blade solutions that are optimized for office and home environments. Both OfficeBlade™ and PersonalBlade™ will take adavantage of the low-noise power supply and cooling fans to minimize noise without sacrificing computing performance. Additionally, the Perso- nalBlade™...
- Page 6 SuperBlade™ Servers Space Optimization Housed within a 19” industry-standard 42U rack, SuperBlade™ servers reduce server footprint in the datacenter. Power, cooling and networking de- vices are removed from each individual server and positioned to the rear of the chassis thereby reducing the required amount of space while increas- ing flexibility to meet changing business demands.
-
Page 7: Specifications
External Uplinks Ten external ports: 4x DDR - copper Bandwidth 4X DDR (20Gbps) non-blocking architecture 960Gbps total switch bandwidth (24-port) Management In-band InfiniBand IBML, Command-Line Interface (CLI) The SuperBlade™ chassis management module (CMM) provides total control managing and monitoring of individual server blades, power supplies, cooling fans, and networking switches remotely. - Page 8 Incorporating Supermicro’s high-efficiency power philosophy into the SuperBlade™ server technology, Supermicro engineers have mastered the power supply design challenge to produce high-quality, high-performance solutions with peak efficiency ratings of 90% or higher. Supermicro solutions continue to outperform and outlast the competition and provide the best technology investment available to customers.
- Page 9 At the current time, the Supermicro® SuperBlade™ is shipping with power supplies of 2000 Watts or larger. In order to supply adequate power for the SuperBlade system, your site should provide 30 Amps of 220V (nominal) power for every pair of power supplies that are installed in your SuperBlade chassis.
