Motherboard Block Diagram

UDIMM UP TO 4400 MT/S
DDR5 (CHA)
DIMMA1
DIMMA2
DDR5 (CHB)
DIMMB1
DIMMB2
SATA-III
1 x SATA-III DOM
6 Gb/s
PCIe 4.0 x4
M.2 PCIe / SATA SSD
16.0 GT/s
SATA-III
6 Gb/s
USB 3.2 Gen1
1 x USB 3.0 for DCI
5.0 Gbps
USB 2.0
2 x USB 2.0 KVM
480 Mbps
IMVP9.1
INTEL LGA1700
PEG60 x4
x8 DMI
8 GT/s
Port [11]
Port [12,15]
Intel
RPL PCH-H
Port [17~20]
C266
USB3.2 G1[1]
USB2[2-3]
USB2[4-5]
Port [21]
SPI
FLASH
SPI 256 Mb
CPLD
RoT 2.0

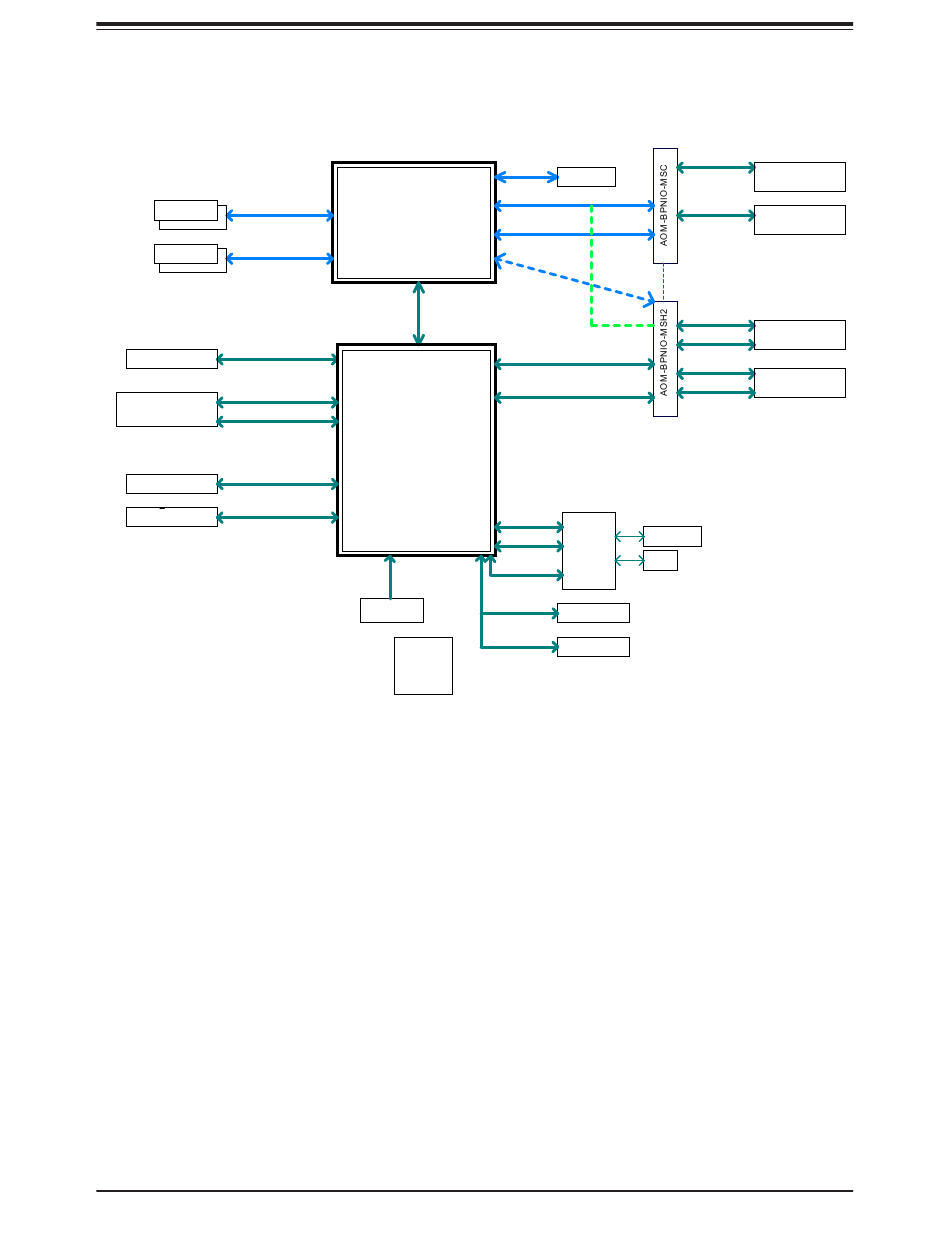

Figure 1-7. Motherboard Block Diagram
16
Chapter 1: Introduction
SVID
IMVP9.1
PCIe 3.0 x8
LSI3008
8.0 GT/s
PCIe 3.0 x4
I350
8.0 GT/s
PCIe 3.0 x4
8.0 GT/s
BCM57414
OR
PCIe 3.0 x4
M.2
SATA-III x2
6 Gb/s
PCIe 4.0 2x4
16 GT/s
SlimSAS Connector
USB 2.0 x2
RGMII
480 Mbps
RTL8211FS
PCIe 3.0 x1
AST2600
8.0 GT/s
VGA
eSPI
SPI
TPM 2.0 Header
TPM 2.0 Chip
SAS3
12 Gb/s
U.2
SAS3
U.2
12 Gb/s
PCIe 4.0
16 Gb/s
U.2
SATA III
6 Gb/s
PCIe 4.0
16 Gb/s
U.2
SATA III
6 Gb/s
