Summary of Contents for UNIS Toy Box Single GMP

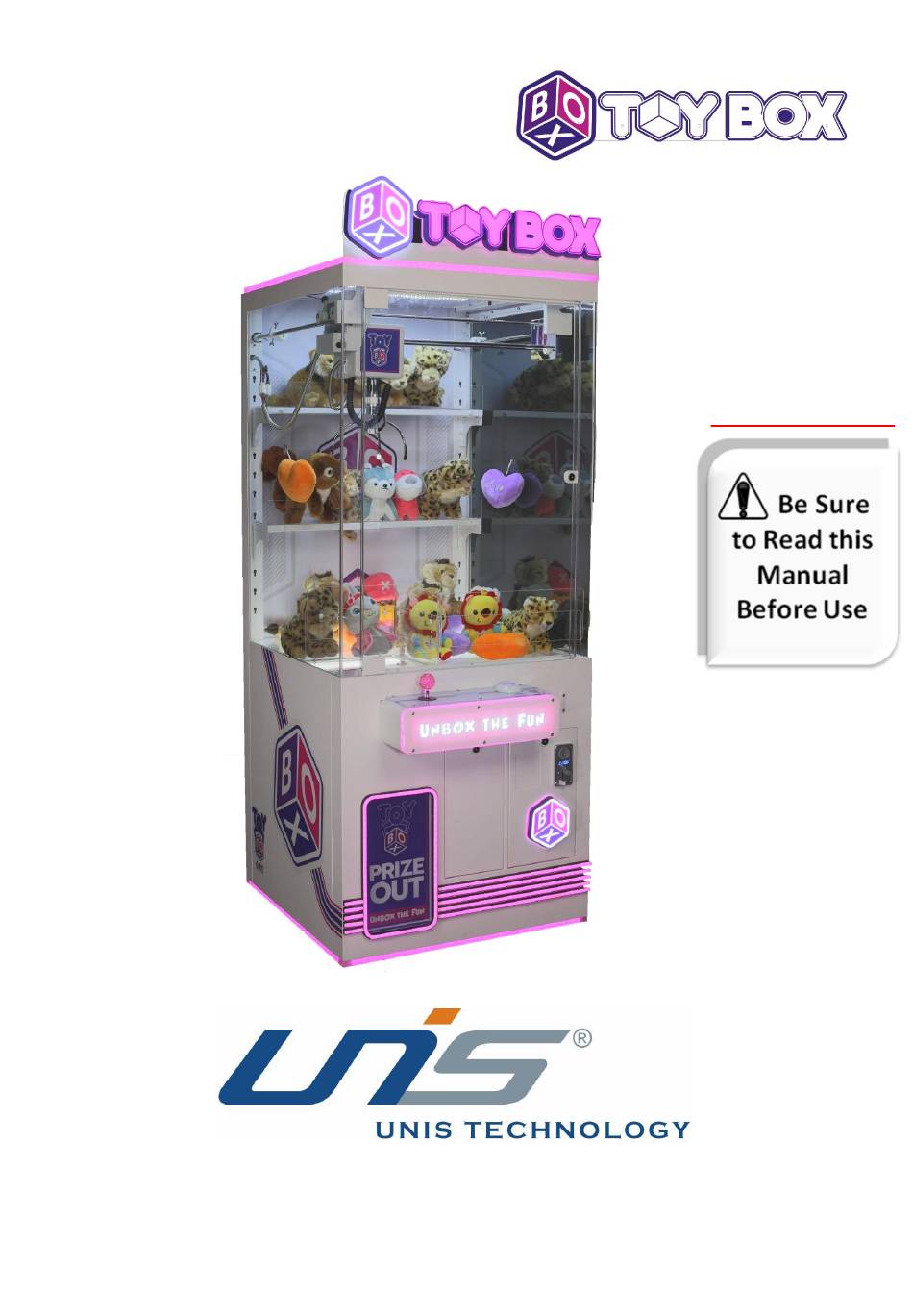

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 SKNJ Toy Box Single GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.
  • Page 3 SKNJ Toy Box Single GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ...................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. LOCATION OPERATION INSTRUCTIONS ..............11 6.
  • Page 4 SKNJ Toy Box Single GMP Manual Thank you for purchasing Toy Box Single GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 SKNJ Toy Box Single GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors.
  • Page 6 SKNJ Toy Box Single GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; Min. Power consumption: 145W Max. Power consumption: 290W Dimension: H88.97×W31.49×D38.11 in H2260×W800 ×D968 mm Weight：Approximately 352.73lb/160 KG Model No: T-387 Part No.: T165 NOTICE : After turning off the game, please wait at least 1 minute before restarting again.
  • Page 7 SKNJ Toy Box Single GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Part No. Code No. Name/SPEC Picture Power cord T165-0205-00 2.33.01.018024 3×18AWG 3M Fuse(T5A) T165-0206-00 2.19.01.000012 Φ5×20mm T5A/250VAC...
  • Page 8 SKNJ Toy Box Single GMP Manual 3. PART NAME Key Components Marquee Assembly Crane Button Joystick Coin mechanism Prize Out Slot 01/02/2024...
  • Page 9 SKNJ Toy Box Single GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 SKNJ Toy Box Single GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 11 SKNJ Toy Box Single GMP Manual 4.4 Machine Installation Step 1 Install LOGO marquee to the top of the cabinet. Utilize screws to secure. Finish! 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader.
  • Page 12 SKNJ Toy Box Single GMP Manual 4.6 Voltage Conversion Step 1 Power off the machine. Locate the Power supply. Step 2 Toggle the Power supply and PC switch to 115V or 230V according to your need. 5. LOCATION OPERATION INSTRUCTIONS 5.1 First Power On Operation...
  • Page 13 SKNJ Toy Box Single GMP Manual 6. HOW TO PLAY 6.1 Insert coins or tap/swipe card to start. 6.2 Use the joystick to move the claw over the desired prize & press “TAP” button to grab within the time limit.
  • Page 14 SKNJ Toy Box Single GMP Manual 7. GAME OPTION 7.1 Adjustment button instruction Open the coin door and there is a meter panel. Long press Service button for 5 seconds to enter the setting menu. Utilize Joystick to control setting menu UP/DOWN/LEFT/RIGHT. Press button to confirm&...
  • Page 15 SKNJ Toy Box Single GMP Manual 7.2.3 Crane Setup Options Adjustable Range Default Description Set the voltage at the bottom of the claw BOM Volt. 0.1-50.0 to grab the prize and when rising. Sets the voltage of the claw claw after MID Volt 0.1-50.0...
  • Page 16 SKNJ Toy Box Single GMP Manual stage OFF: The claw cannot be closed by pressing the button again before it lower to the bottom. Air Grip ON/OFF ON: The claw can be closed by pressing the button again before it lower to the...
  • Page 17 SKNJ Toy Box Single GMP Manual 7.2.5 Light Setup Options Adjustable Range Default Description LED Color 0-255 Standby light color S-MO/E-MO/M-CO/ LED Mode F-RU/F-FL/F-CO/F- STAT Standby light flash mode MO/Start Win Color 0-255 Winning light color FLK/FSG/STA/SLK Win Color Winning light flash mode...
  • Page 18 SKNJ Toy Box Single GMP Manual 7.2.7 Factory Test Options Status Description Intelligt Auto Test: Long press button for 10s to Test exit 1. F-B Test 2. L-R Test Console 3. U-D Test Test 4. Claw Test 5. Back and Exit...
  • Page 19 SKNJ Toy Box Single GMP Manual 7.3 How To Set “Play To Win Every Time” Feature Please change below parameters in “Prize Setup” option Prize Setup Options Parameter Difficulty Prize No. 0000 Disp Win TOK PRIC 0001 WIN PRIC 0001...
  • Page 20 SKNJ Toy Box Single GMP Manual 8. TROUBLESHOOTING 8.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service.
  • Page 21 SKNJ Toy Box Single GMP Manual Display Possible Cause Recommended action Check and reconnect the Crane Connector became loose during transport. connector. Error 02 The crane track is bent and stuck. Fix track. (Check Back Crane motor is faulty. Replace Crane motor.
  • Page 22 SKNJ Toy Box Single GMP Manual 8.2 Mainboard Update Instructions Notice: Please Contact UNIS Service for latest software. Step 1 Power off the machine. Open the back bottom door. Loosen screws to rmeove mainboard. Step 2 Decompress HIDBootloader.zip. Double click to open the software.
  • Page 23 SKNJ Toy Box Single GMP Manual Step 2 Connect cable to the PC. Step 3 Connect cable to the Mainboard MCU port while pressing Test button. Cable port Press button when connect PC 01/02/2024...
  • Page 24 SKNJ Toy Box Single GMP Manual Step 4 Locate PC. Select “打开固件”(Open Software). Select latest software(Bin. format). Note: Picture software is only for reference. 01/02/2024...
  • Page 25 SKNJ Toy Box Single GMP Manual Step 5 Select “升级固件” (Update Software) to update mainboard. Step 6 When you see “” (Success), Update finish! Unplug the mainboard. Step 7 Install Mainboard back to the machine. Power on the machine. Finish!
  • Page 26 SKNJ Toy Box Single GMP Manual 9. MAINTENANCE & INSPECTION 9.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.
  • Page 27 SKNJ Toy Box Single GMP Manual 10. OVERALL CONSTRUCTION 10.1 General Assembly Part No. Code No. Name Version Qty T165-0131-00 203.2.2315.007 Top board T165-0106-00 206.2.2315.025 Top front rear plastic T165-0107-00 206.2.2315.026 Top left rear plastic T165-0111-00 206.2.2315.034 Side glass T165-0122-00 206.2.2315.052...
  • Page 28 SKNJ Toy Box Single GMP Manual Part No. Code No. Name Version Qty T165-0140-00 2.53.00608835 1408B lock T165-0125-00 206.2.2315.009 Placing bracket front plastic T165-0112-00 206.2.2315.048 Placing bracket plastic T165-0110-00 206.2.2315.047 Placing white plastic T165-0124-00 206.2.2315.007 Prize base plastic T165-0127-00 206.2.2315.011...
  • Page 29 SKNJ Toy Box Single GMP Manual Part No. Code No. Name Version Qty T165-0120-00 206.2.2315.002 Glass door pad T165-0128-00 206.2.2315.012 Clear rubber shaft 10.2 Wooden Components Part No. Code No. Name Version Qty T165-0132-00 203.2.2315.008 Electrical mounting board T165-0130-00 203.2.2315.006...
  • Page 30 SKNJ Toy Box Single GMP Manual 10.3 Decals 01/02/2024...
  • Page 31 SKNJ Toy Box Single GMP Manual Part No. Code No. Name Version Qty T165-0309-00 205.2.2315.308 LOGO light character T165-0310-00 205.2.2315.310 Crane decal T165-0312-00 205.2.2315.312 Button decal T165-0302-00 205.2.2315.301 Control panel decal T165-0314-00 205.2.2315.314 Remove warning label T165-0306-00 205.2.2315.305 Front decal T165-0304-00 205.2.2315.303...
  • Page 32 SKNJ Toy Box Single GMP Manual 01/02/2024...
  • Page 33 SKNJ Toy Box Single GMP Manual Part No. Code No. Name Version Qty T165-0329-00 2.56.00.000036 High voltage label(small) T165-0327-00 205.1.1605A.040 Adapter label T165-0321-00 205.2.2315.321 Mainboard cover decal T165-0317-00 205.2.2315.317 Fuse board instructions label T165-0334-00 2.56.00.000095A Service label(large) T165-0332-00 2.56.00.000067A Service label(yellow) T165-0331-00 2.56.00.000042A...
  • Page 34 SKNJ Toy Box Single GMP Manual 10.4 Electrical Components Part No. Code No. Name Version 1 T165-0309-00 205.2.2315.308 LOGO light character 2 T165-0409-00 2.20.02.018002 RX3535RGB light strip 90.55 in (2300mm) 3 T165-0408-00 2.20.02.020029 2835 white light strip 27.55 in (700mm) 4 T165-0411-00 2.66.01.121179...
  • Page 35 SKNJ Toy Box Single GMP Manual Part No. Code No. Name Version Qty T165-0402-00 2.16.02.000117 Power supply(12V) T165-0424-00 2.16.02.000174 Power supply(48V) T165-0415-00 2.16.02.000124 Power supply(5V) T165-0404-00 2.16.03.000076 Adapter T165-0420-00 2.17.14.000148D Fuse board T165-0413-00 2.66.01.121181 Mainboard T165-0425-00 2.33.09.000487 Cable set 01/02/2024...
  • Page 36 SKNJ Toy Box Single GMP Manual Part No. Code No. Name Version Qty T165-0419-00 2.30.00000006 Counter T165-0418-00 2.24.02.050001 Setting menu button(black) T165-0417-00 2.24.02.030002 Setting menu button(green) T165-0421-00 2.26.01.000005 Rocket SW Part No. Code No. Name Version Qty T165-0416-00 4.11.00000002 Tilt alarm...
  • Page 37 SKNJ Toy Box Single GMP Manual Part No. Code No. Name Version 82.67 in 1 T165-0408-00 2.20.02.020029 2835 white light strip (2100mm) 2 T165-0423-00 2.66.01.121183 Sensor set Part No. Code No. Name Version Qty T165-0406-00 2.32.01000005 Filter www.unistechnology.com 01/02/2024...
