Summary of Contents for UNIS TICKET DOME

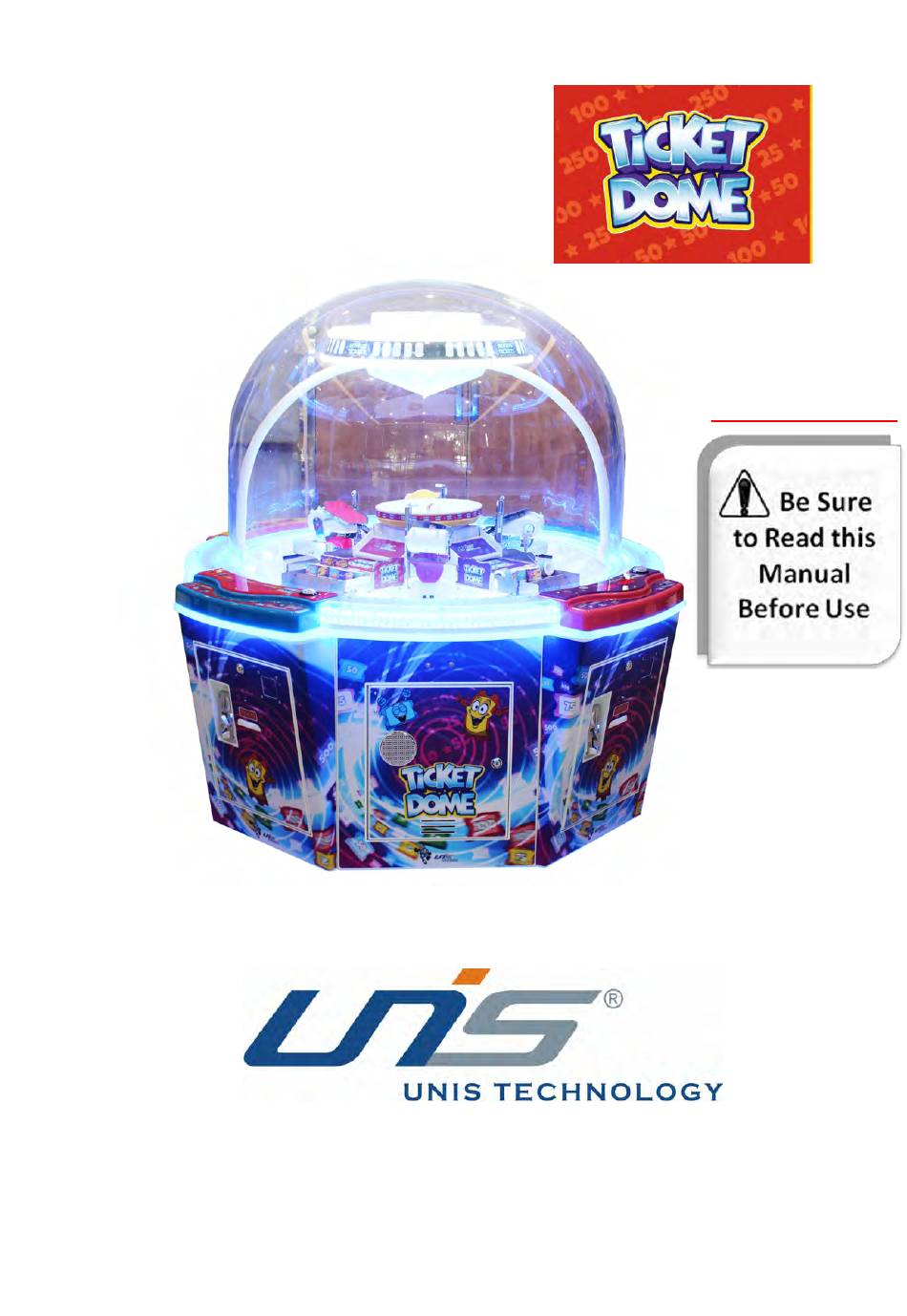

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Treasure Dome RFID Prototype Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com 11/15/2019...

  • Page 3: Table Of Contents

    Treasure Dome RFID Prototype Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ...................... 16 6.

  • Page 4: Important Safety Instructions

    Treasure Dome RFID Prototype Manual Thank you for purchasing Ticket Dome RFID. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Treasure Dome RFID Prototype Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Treasure Dome RFID Prototype Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz Min. Power consumption: 240W Max. Power consumption: 350W Dimension:Width: 58.66’’ (1490mm) Depth: 58.66’’ (1490mm) Height: 56.92’’(1446mm) Weight：Approximately 380.37 lb (345kg) Model No: T-351 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    Treasure Dome RFID Prototype Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Name Spec. Picture Manual English 171A 171B Power cord 1.8M Fuse 6.3A Micro Switch D3V-6G-1C24 7 Optical coupler Extended line 1.2M (Maintenance and use) 1 NOTE: Part models are subject to change without notice.

  • Page 8: Part Name

    Treasure Dome RFID Prototype Manual 3. PART NAME Key Components Marquee Button Scoop Ticket dispenser Speaker Coin mechanism 11/15/2019...

  • Page 9: Set Up & Installation

    Treasure Dome RFID Prototype Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid ...
  • Page 10 Treasure Dome RFID Prototype Manual This procedure requires 4 people assistance. 4.2 Level Adjustment Install this game on a flat surface. If the game is installed on an unsuitable floor, it could cause game malfunction. To secure the game, loosen the nut, utilize wrench to adjust the leveler down until it touches the floor, lifting the casters off the ground by 0.2 in.
  • Page 11 Treasure Dome RFID Prototype Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Play area: 20 in Play area 11/15/2019...
  • Page 12 Treasure Dome RFID Prototype Manual 4.4 Machine Installation Before processing, assure you have the following tools. Name Picture Phillips screwdriver Socket wrench Allen wrench Spanner Marquee Installation Step 1 Utilize Allen wrench to loosen 8 screws to remove Marquee base plate. Screw Marquee base plate Step 2 Place Marquee support plate on the Marquee as indicated.
  • Page 13 Treasure Dome RFID Prototype Manual Step 3 Utilize Phillips screwdriver and Spanner to tighten 4 screws and nuts to the Marquee support plate. Cross recessed pan Name head screw SPEC M5X10 Name Flange nut SPEC Step 4 Place Marquee bracket on the Marquee support plate. Utilize cable tie to tie the cable as indicated.
  • Page 14 Treasure Dome RFID Prototype Manual Step 6 Open the service door between Purple player and Blue player. Power on the machine. Turn the Switch to UP side. Blue player Purple player Cover bracket bracket Step 7 Utilize Phillips screwdriver to loosen 2 screws and cotter pin to remove Cover. Screws cotter pin Step 8 Place Marquee assembly on the machine as indicated.
  • Page 15 Treasure Dome RFID Prototype Manual Connector Connector Step 9 Utilize Phillips screwdriver and Spanner to tighten 4 screws, 4 flange nuts, 4 spring washers, and 4 flat washers to Marquee support bracket. Screw Cross recessed pan Name Flange nut Name head screw SPEC SPEC...
  • Page 16 Treasure Dome RFID Prototype Manual RFID Reader Installation Step 1 Open the service door between Purple player and Blue player.Turn over the RFID reader and install it on the top of the M3 board as indicated. RFID reader front side Step 2 Connect 6 cables to the RFID reader.

  • Page 17: How To Play

    Treasure Dome RFID Prototype Manual 5. HOW TO PLAY 1 Please insert coin(s) /swipe card to play. 2 Aim at prizes and press Button to scoop the prizes on the turn table. 3 Prizes drop down to be collected. This will activate the BONUS feature above. 4 Press Button to stop the spinning feature and try to land on “Win BONUS”...

  • Page 18: Game Option

    Treasure Dome RFID Prototype Manual 6. GAME OPTION 6.1 Ticket Dome I/O chart: Item Value Coin Per Game Scoop Times* Demo Music Normal Free Play Game Mode Bonus Factory Restore Scoop times: When the player win BONUS, the machine will automatically scoop the prizes into the disk.
  • Page 19 Treasure Dome RFID Prototype Manual Controller Item Value Stepping Motor Setting Input: Extend Input: INPUT Content INPUT Content INPUT Content INPUT Content 1P Coin 2P Coin 3P Coin 4P Coin J1-1 (1) J1-9 (9) J7-1 (1) J7-9 (9) mechanism mechanism mechanism mechanism J1-2 (2) 1P Button J1-10 (10) 2P Button J7-2 (2)
  • Page 20 Treasure Dome RFID Prototype Manual Input: Extend Input: INPUT Content INPUT Content INPUT Content INPUT Content 1P Claw 3P Claw depth Turntable J1-1 (1) J1-9 (9) J1-1 (1) J1-9 (9) depth SW zero sensor 1P Scoop 3P Scoop J1-2 (2) J1-10 (10) J1-2 (2) J1-10 (10)
  • Page 21 Treasure Dome RFID Prototype Manual Separate port J5：(Main board 1) Separate port J6： (Main board 1) PROT Content PROT Content Display SCK Display RCK Display SI (Main board 2) Separate port PROT Content LED display: Time LED: 1,2,3 bit X4 Press"TEST"...
  • Page 22 Treasure Dome RFID Prototype Manual 6.2 Ticket Dome RFID I/O Chart Input：J20 INPUT Content INPUT Content INPUT Content INPUT Content 1#Gate motor IN17 Switch DIP1 J25-T1_IN 1#Ticket feedback initial 2#Gate motor IN10 IN18 Switch DIP2 J25-T2_IN 2#Ticket feedback initial 3#Gate motor...
  • Page 23 Treasure Dome RFID Prototype Manual Switch Setting: DIP1 Content Parameters DIP1 DIP2 DIP3 DIP4 DIP5 DIP6 DIP7 DIP8 1 Minimum 1P Power consumption 8 Maximum 1 Minimum 2P Power consumption 8 Maximum 1 Ticket roll OFF OFF 2 Ticket roll on BONUS Prize 3 Ticket roll off 4 Ticket roll on...
  • Page 24 Treasure Dome RFID Prototype Manual Content Parameters DIP1 DIP2 DIP3 DIP4 DIP5 DIP6 DIP7 DIP8 1 Minimum 4P Power consumption 8 Maximum No ticket Ticket Ticket Communication: Item Content COM1 To card reader ADC PART: Separate port: Item Content Content Item Content Content (A/D)0 (J3)
  • Page 25 Treasure Dome RFID Prototype Manual Item Content Content (A/D)5 (J8) (A/D)6 (J9) (A/D)7 (J10) 11/15/2019...

  • Page 26: Troubleshooting

    Turn on power SW again. If appeared Circuit protector make power SW again and again, machine has Power cutting in cutting state anomaly. Please contact with UNIS Service. Coin mechanism fault or sample Change coin mechanism or sample coin not installed.

  • Page 27: Overall Construction

    Treasure Dome RFID Prototype Manual 9. OVERALL CONSTRUCTION 9.1 Electrical Components Part No. Drawing No. Name 1 T151-410-000 PQXS.DQ-10 Coin mechanism 4 Part No. Drawing No. Name Qty T151-439-000 PQXS.DQ-39 Speaker 2 Part No. Drawing No. Name 1 T151-444-000 PQXS.DQ-44 Filter 2 T151-445-000 PQXS.DQ-45 Fuse...
  • Page 28 Treasure Dome RFID Prototype Manual 11/15/2019...
  • Page 29 Treasure Dome RFID Prototype Manual Part No. Drawing No. Name T151-401-000 PQXS.DQ-01 Main board T151-402-000 PQXS.DQ-02 Extension board T151-403-000 PQXS.DQ-03 PCB board T151-405-000 PQXS.DQ-05 Light control board T151-408-000 PQXS.DQ-08 Display T151-409-000 PQXS.DQ-09 Fuse board T151-429-000 PQXS.DQ-29 T151-430-000 PQXS.DQ-30 Fan net T151-431-000 PQXS.DQ-31 T151-432-000...
  • Page 30 Treasure Dome RFID Prototype Manual 11/15/2019...
  • Page 31 Treasure Dome RFID Prototype Manual Part No. Drawing No. Name 1 T151-407-000 PQXS.DQ-07 Light board 2 T151-406-000 PQXS.DQ-06 LED PCB board 3 T151-411-000 PQXS.DQ-11 Inside breath light 4 T151-412-000 PQXS.DQ-12 Outside breath light 5 T151-413-000 PQXS.DQ-13 Bottom breath light 6 T151-414-000 PQXS.DQ-14 Outside line breath light 8 7 T151-415-000 PQXS.DQ-15 Marquee breath light 8 T151-416-000 PQXS.DQ-16...
  • Page 32 Treasure Dome RFID Prototype Manual 9.2 Decals 11/15/2019...
  • Page 33 Treasure Dome RFID Prototype Manual 11/15/2019...
  • Page 34 Treasure Dome RFID Prototype Manual Part No. Drawing No. Name 1 T151-707-000 PQXS.HM-01 Speaker door decal 2 T151-708-000 PQXS.HM-02 Service door decal 3 T151-709-000 PQXS.HM-03 Coin mechanism door decal T151-710-000 PQXS.HM-04 Red player decal T151-711-000 PQXS.HM-05 Yellow player decal T151-712-000 PQXS.HM-06 Blue player decal T151-713-000 PQXS.HM-07 Purple player decal...
  • Page 35 Treasure Dome RFID Prototype Manual Part No. Drawing No. Name T151-730-000 PQXS.HM-24 Pusher side blue decal T151-731-000 PQXS.HM-25 Pusher side purple decal 1 T151-732-000 PQXS.HM-26 Pusher side red decal T151-733-000 PQXS.HM-27 Pusher side yellow decal T151-734-000 PQXS.HM-28 Blue LOGO decal T151-735-000 PQXS.HM-29 Purple LOGO decal T151-736-000 PQXS.HM-30...
  • Page 36 Treasure Dome RFID Prototype Manual 11/15/2019...
  • Page 37 Treasure Dome RFID Prototype Manual Part No. Drawing No. Name T151-744-000 PQXS.HM-38 Counter decal T151-745-000 PQXS.HM-39 Ticket decal T151-746-000 PQXS.HM-40 DBV port decal T151-747-000 PQXS.HM-41 Service label(green) T151-748-000 PQXS.HM-42 High voltage warning decal T151-749-000 PQXS.HM-43 High voltage label T151-750-000 PQXS.HM-44 Inside label T151-751-000 PQXS.HM-45...

  • Page 38: Wiring Diagram

    Treasure Dome RFID Prototype Manual 10. WIRING DIAGRAM 3P lift motor A 3P lift motor B 3P Claw motor A 3P Claw motor B 4P lift motor A 4P lift motor B 4P Claw motor A 4P Claw motor B XH-8A +12V +12V...
  • Page 39 Treasure Dome RFID Prototype Manual 5A Fuse 5A Fuse DM442 5A Fuse 5A Fuse 11/15/2019...
  • Page 40 Treasure Dome RFID Prototype Manual Antenna 4 Antenna 1 Antenna 2 Antenna 3 11/15/2019...
  • Page 41 Treasure Dome RFID Prototype Manual FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
