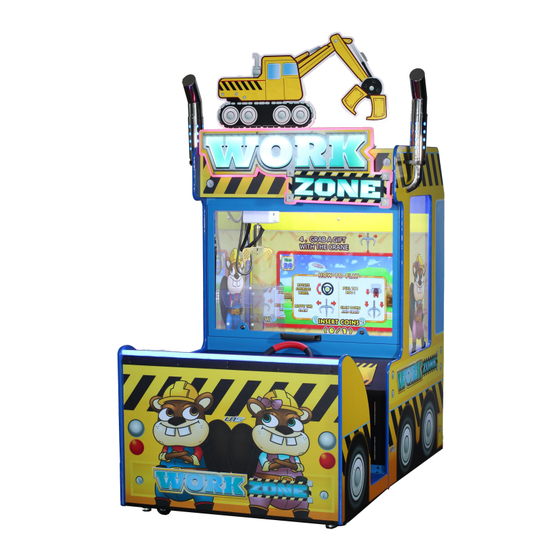

UNIS WORK ZONE Operation Manual
  1. Manuals
  2. Brands
  3. UNIS Manuals
  4. Arcade Game Machines
  5. WORK ZONE
  6. Operation manual

UNIS WORK ZONE Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WORK ZONE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UNIS WORK ZONE

Summary of Contents for UNIS WORK ZONE

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Work Zone GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com 08/25/2022...

  • Page 3: Table Of Contents

    Work Zone GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS...............3 1. SPECIFICATIONS....................5 2. CONTENTS OF THE ACCESSORY KIT..............6 3. PART NAME......................7 4. SET UP & INSTALLATION..................8 5. HOW TO PLAY......................13 6. GAME OPTION..................... 14 7. TROUBLESHOOTING....................20 8. MAINTENANCE & INSPECTION................24...

  • Page 4: Important Safety Instructions

    Work Zone GMP Manual Thank you for purchasing Work Zone GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Work Zone GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Work Zone GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz; Min. Power consumption: 150W Max. Power consumption: 200W Dimension: H84.13×W39.46×D65.75 in H2137 ×W1002.4 ×D1670 mm Weight：Approximately 617.29 lb/ 280kg Model No: T-376 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    Work Zone GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Code No. Name/SPEC Picture Manual Power cord Fuse 2.19.01.000004A Ф5×20mm T5A 250VAC 2.53.00171002 171A key 2.53.00172002 171B key NOTE: Part models are subject to change without notice.

  • Page 8: Part Name

    Work Zone GMP Manual 3. PART NAME Key Components 08/25/2022...

  • Page 9: Set Up & Installation

    Work Zone GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 Work Zone GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 500 mm Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 11 Work Zone GMP Manual 4.4 Machine Installation Step 1 Open the front glass. Glass door Step 2 Install Marquee frame and Marquee plastic to the top of the cabinet. Connect the connectors. Marquee frame Marquee plastic 08/25/2022...
  • Page 12 Work Zone GMP Manual Step 3 Utilize tools to remove Crane cable tie. Close the Glass door. Cable tie Step 4 Install excavator POP board to the back of the Marquee. Excavator POP board 08/25/2022...
  • Page 13 Work Zone GMP Manual Step 5 Align the Seat assembly to the cabinet. Utilize screws to secure. Connect the connectors. Cabinet Seat assembly Finish! 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader.

  • Page 14: How To Play

    Work Zone GMP Manual 5. HOW TO PLAY 1. Insert coins to play. Control the car to collect building block to the destination. 2. Toy tower making after collect building block to the destination. 3. Activate Clawing Game after driving the car to the destination.

  • Page 15: Game Option

    Work Zone GMP Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press Settings button to enter the setting menu. Settings Test Reset 6.1.1 Main menu 6.1.2 Basic Setting Options Status...
  • Page 16 Work Zone GMP Manual 6.1.4 Input Test 6.1.5 Output Test Options Status Options Coin OFF_ON Gift Door Light Pull Rod Down OFF_ON Inside Upper Light Gift infrared OFF_ON Back Wheel ADC 0-255 Back 6.1.6 Game Reset 6.1.7 Date/Time Setting Options...
  • Page 17 Work Zone GMP Manual 6.2 Claw Setting Menu Keyboard instruction Open front door with door key, there is a Keyboard. Press “Enter” button to enter the setting menu. After entering the menu, use the keyboard to control display cursor to up, down, left and right to choose, press “Confirm”...
  • Page 18 Work Zone GMP Manual 6.2.3 Set Up: Basic set up & Advance set up are included as below Basic set up Enter the Advanced settings, enter the password (initial password “80000000”), then press the Confirm button to enter. Options Adjustable value...
  • Page 19 Advance set up (Special for Factory Service Usage) NOTICE Do not recommend to change here without consulting UNIS factory Change settings may cause the machine to be faulty. servicing center. Factory settings already set these data with a proper default, therefore do not recommend.
  • Page 20 Work Zone GMP Manual 6.2.3.1 Claw Strength Options Adjustable value Default Description The power of close the claw after it down C1 Force 1-48 and raised The transitional claw power, starting C2 Force 1-48 shaking prize power. The power of close the claw when the...

  • Page 21: Troubleshooting

    Work Zone GMP Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service. Turn on power SW again. If appeared...
  • Page 22 Work Zone GMP Manual If you see following error signs showing on the Setting panel, please try the recommended action. Display Possible Cause Recommended action Do not shake the machine. Shake the machine or tilts the Do not shake the machine The anti-shake alarm device is machine.
  • Page 23 Work Zone GMP Manual Display Possible Cause Recommended action Replace Rising limited Rising limited sensor is faulty. Claw rising fault sensor. Rising motor is faulty. Replace Rising motor. The claw do not touch the Restart the machine. Lower limited sensor.
  • Page 24 Work Zone GMP Manual 7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove the recovery stick from the holder. (Note: This process may take up to 30s) 2. Turn game on. Insert the recovery stick into the port of the Android board.

  • Page 25: Maintenance & Inspection

    Work Zone GMP Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.
  • Page 26 888888 888888...
  • Page 27 AC IN...
