UNIS T-448 Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-448 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for UNIS T-448

Summary of Contents for UNIS T-448

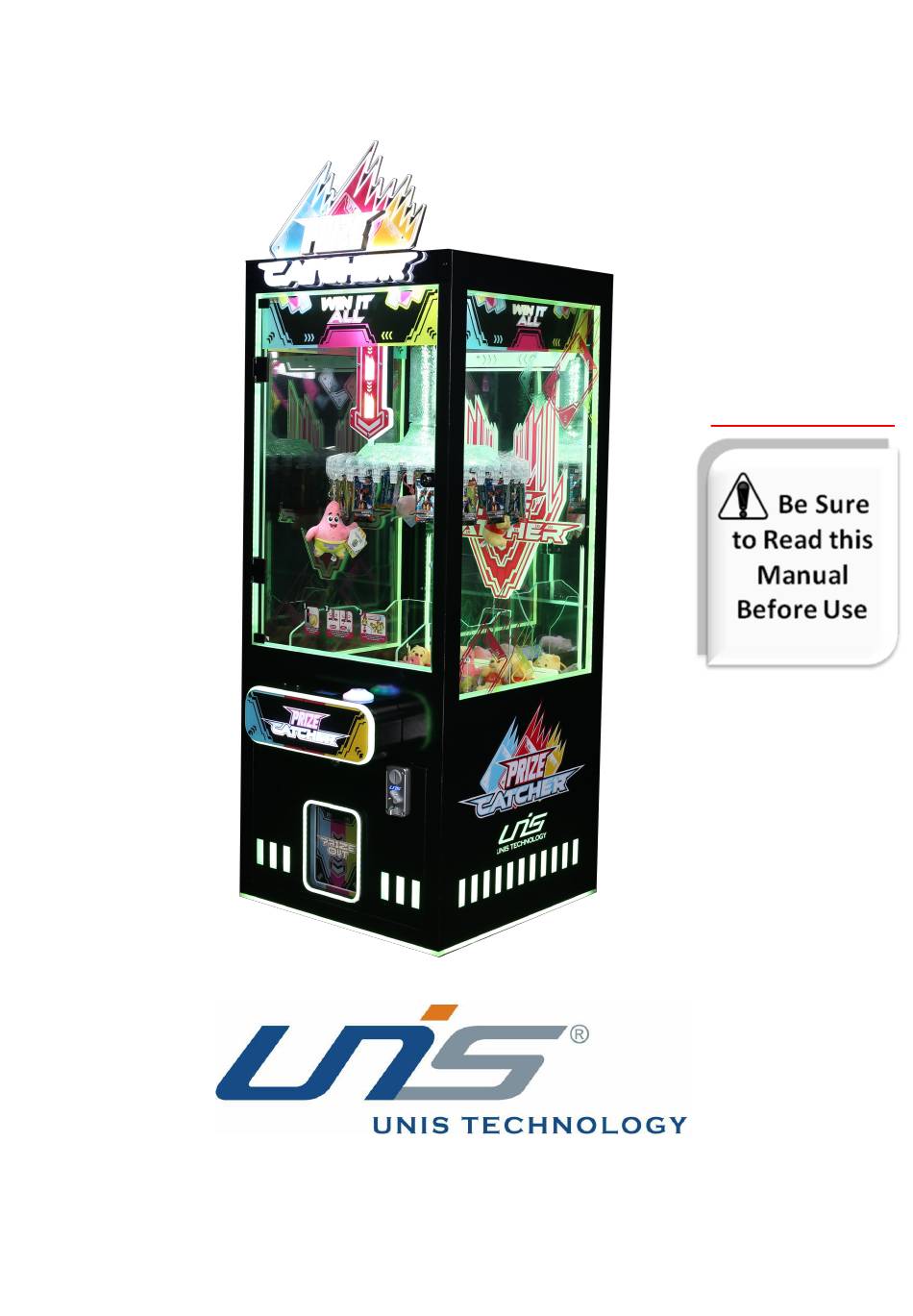

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Prize Catcher GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Prize Catcher GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ...................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ......................12 6. GAME OPTION ......................13 7.

  • Page 4: Important Safety Instructions

    Prize Catcher GMP Manual Thank you for purchasing Prize Catcher GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Prize Catcher GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Max. Power consumption: 220W Dimension: H82.21×W27.55×D32.40 in H2088.35×W700 ×D823 mm Weight：Approximately 361.55 lb/164 KG Model No: T-448 Part No: P171 NOTICE : After turning off the game, please wait at least 1 minute before restarting again. Note: Game specifications are subject to change without notice.

  • Page 7: Contents Of The Accessory Kit

    Prize Catcher GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Part No. Code No. Name/SPEC Picture 1 P171-1401-00 4.14.40000736 Manual Fuse 2 P171-1402-00 2.19.01.000012 Φ5×20mm T5A/250VAC Power cord 3 P171-1403-00 2.33.01.010020 3×16AWG 1.8M 4 P171-1404-00 2.53.00608837...

  • Page 8: Part Name

    Prize Catcher GMP Manual 3. PART NAME Key Components Marquee Assembly Pointer Turntable Button Prize Out Coin mech. 07/03/2024...

  • Page 9: Set Up & Installation

    Prize Catcher GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid. ...
  • Page 10 Prize Catcher GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in NOTICE Your unit must be leveled to operate properly. 07/03/2024...

  • Page 11: Machine Installation

    Prize Catcher GMP Manual 4.4 Machine Installation Step 1 Utilize M4 screws to secure Marquee to the top of the Cabinet. Step 2 Install Control Panel to the cabinet. Utilize screws to secure. Finish! 07/03/2024...
  • Page 12 Prize Catcher GMP Manual 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader. All warranties are void if not properly installed resulting in logic board damage. Important: This game is pre-wired to AAMA standards. It is highly recommended to utilize this wiring for Card reader installation.

  • Page 13: How To Play

    Prize Catcher GMP Manual 5. HOW TO PLAY 5.1 Insert Coins or Tap/Swipe Card to start. 5.2 The Prize holder will begin to spin. Player can time and tap button when the preferred prize is under the center arrow. 5.3 Win any prize that drops into the prize box. Player can collect prize from the prize door. 07/03/2024...

  • Page 14: Game Option

    Prize Catcher GMP Manual 6. GAME OPTION 6.1 Keyboard instruction Open front Prize door with door key, there is a Keyboard near the Coin box. Press “PROGRAM” button to enter the setting menu. After entering the menu, use the keyboard to control mini screen cursor to up, down, left and right to choose, press “Confirm”...
  • Page 15 Prize Catcher GMP Manual 6.2.2 Accounts: operation records are included as below Options Description Coin The total number of coins inserted. Game The total number of game plays. The total number of prize out. 6.2.3 Set Up: Game settings up are included as below Options Adjustable value Default...
  • Page 16 Prize Catcher GMP Manual 6.2.4.1 Led Color Options Adjustable value Default Description Demo Led Color 0-30 The different led color in Demo mode Game Led Color 0-30 The different led color in Game mode Win Led Color 0-30 The different led color while Winning Back 6.2.5 Test Options...

  • Page 17: Troubleshooting

    Contact with UNIS Service. Turn on power SW again. If appeared Circuit protector make power SW again and again, machine has Power off in off state. anomaly. Please contact with UNIS Service. Card reader not The connector is loose. Check connector. working Card reader fault.
  • Page 18 Prize Catcher GMP Manual 7.2 System Update Operation Step 1. Power off the game. Step 2. Insert the SD card with new program into the SD card socket of the mainboard. Step 3. Power on and the system will automatically start update. Step 4.

  • Page 19: Maintenance & Inspection

    Prize Catcher GMP Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.

  • Page 20: Overall Construction

    Prize Catcher GMP Manual 9. OVERALL CONSTRUCTION 9.1 Overall Assembly Part No. Code No. Name Version Qty P171-0700-00 299.2.2417.008 Marquee assy P171-1300-00 299.2.2417.014 L glass assy. P171-0400-00 299.2.2417.005 R glass assy. P171-0300-00 299.2.2417.004 Glass door assy P171-0200-00 299.2.2417.003 Control panel assy. P171-1200-00 299.2.2417.013 Door board assy.
  • Page 21 Prize Catcher GMP Manual 9.2 Catcher Assembly Part No. Code No. Name Version Qty P171-0900-00 299.2.2417.010 Rotation motor assy. P171-0800-00 299.2.2417.009 Long axle assy P171-1000-00 299.2.2417.011 Catcher buckle assy P171-1100-00 299.2.2417.012 Pointer assy. 07/03/2024...
  • Page 22 Prize Catcher GMP Manual 9.3 Cabinet Assembly Part No. Code No. Name Version Qty P171-0130-00 202.2.2417.036 Top plate P171-0169-00 2.53.00608834 1408a lock P171-0132-00 202.2.2417.037 Back door P171-0119-00 206.2.2417.038 Cabinet side light plastic P171-0120-00 206.2.2417.039 Side light cover PVC P171-0131-00 206.2.2417.043 LOGO light PVC P171-0117-00 206.2.2417.036...
  • Page 23 Prize Catcher GMP Manual Part No. Code No. Name Version Qty 16 P171-0121-00 206.2.2417.040 Glass door L plastic 17 P171-0122-00 206.2.2417.041 Glass door R plastic 18 P171-0163-00 2.63.01.000024 Chain 19 P171-0123-00 206.2.2417.042 Glass door up&down plastic 20 P171-0165-00 2.55.01.000136 2.5'' caster 21 P171-0162-00 2.60.00008000 Leveller...
  • Page 24 Prize Catcher GMP Manual Part No. Code No. Name Version Qty 1 P171-0127-00 202.2.2417.033 Counter 2 P171-0125-00 202.2.2417.031 Coin box frame 3 P171-0148-00 202.2.2417.042 Power supply fixing plate 4 P171-0167-00 202.4.2002.044 Power supply fixing plate(s) 5 P171-0151-00 202.2.2417.045 Power supply plate 6 P171-0145-00 203.2.2417.004 Electrical components mounting board 7 P171-0140-00 202.2.2417.040 Block fixing plate...
  • Page 25 Prize Catcher GMP Manual 9.4 Marquee Part No. Code No. Name Version Qty P171-0702-00 202.2.2417.067 Marquee fixing plate P171-0704-00 206.2.2417.057 Mid plastic P171-0703-00 202.2.2417.068 Marquee fixing plate 2 P171-0705-00 205.2.2417.110 Marquee plastic decal P171-0701-00 206.2.2417.056 LOGO character 07/03/2024...
  • Page 26 Prize Catcher GMP Manual 9.5 L Glass Part No. Code No. Name Version Qty P171-0401-00 206.2.2417.052 Side up&down light plastic P171-0405-00 202.2.2417.062 Side glass upper cover plate P171-1306-00 205.2.2417.104 L side glass P171-0403-00 202.2.2417.060 Side glass cover plate P171-0402-00 206.2.2417.053 Side L&R light plastic P171-0404-00 202.2.2417.061...
  • Page 27 Prize Catcher GMP Manual 9.6 R Glass Part No. Code No. Name Version Qty P171-0401-00 206.2.2417.052 Side up&down light plastic P171-0405-00 202.2.2417.062 Side glass upper cover plate P171-0406-00 205.2.2417.102 R side glass P171-0403-00 202.2.2417.060 Side glass cover plate P171-0402-00 206.2.2417.053 Side L&R light plastic P171-0404-00 202.2.2417.061...
  • Page 28 Prize Catcher GMP Manual 9.7 Glass Door Part No. Code No. Name Version Qty P171-0311-00 202.2.2417.059 Upper limit plate P171-0305-00 206.2.2417.050 Glass door pad PVC P171-0306-00 202.2.2417.054 Limit fixing plate P171-0301-00 206.2.2417.048 Glass door P171-0303-00 202.2.2417.053 Hinge fixing plate 2 P171-0304-00 206.2.2417.049 Hinge pad PVC...
  • Page 29 Prize Catcher GMP Manual 9.8 Control Panel Part No. Code No. Name Version Qty 1 P171-0207-00 206.2.2417.047 Card reader blanking plate 2 P171-0205-00 206.2.2417.046 Mini screen pad plastic 3 P171-0201-00 202.2.2417.049 Control panel bracket 4 P171-0203-00 202.2.2417.050 Control panel pad plate 5 P171-0206-00 202.2.2417.051 Speaker mounting plate 6 P171-0204-00 206.2.2417.045...
  • Page 30 Prize Catcher GMP Manual 9.9 Door Board Part No. Code No. Name Version Qty P171-1208-00 206.2.2417.066 Door light cover PVC P171-1211-00 202.2.2417.090 DBV blanking plate P171-1203-00 206.2.2417.063 Door board light plastic P171-1209-00 202.2.2417.088 L hook P171-1205-00 202.2.2417.087 Flip hinge P171-1212-00 202.2.2417.091 Coin mech.
  • Page 31 Prize Catcher GMP Manual 9.10 Rotation Motor Part No. Code No. Name Version Qty P171-0902-00 202.2.2417.074 Driving wheel P171-0904-00 2.65.04.000137 Synchronization belt P171-0901-00 202.2.2417.073 Brush-less DC motor plate P171-0903-00 2.34.04.010144 Brush-less DC motor 07/03/2024...
  • Page 32 Prize Catcher GMP Manual 9.11 Long Axle Part No. Code No. Name Version Qty P171-0803-00 202.2.2417.071 Driven wheel P171-0801-00 202.2.2417.069 Bearing plate P171-0807-00 201.06.000057 Bearing P171-0805-00 202.2.2417.072 Round PC tube fixing plate P171-0804-00 206.2.2417.058 Round PC tube P171-0802-00 202.2.2417.070 Rolling axle P171-0806-00 206.2.2417.059 Light board PVC...
  • Page 33 Prize Catcher GMP Manual 9.12 Catcher Buckle Part No. Code No. Name Version Qty P171-1004-00 206.2.2417.060 Catcher turning cover P171-1003-00 202.2.2417.076 Flange fixing plate P171-1002-00 203.2.2417.005 Catcher turning strengthen board P171-1005-00 206.2.2417.061 Bottom plastic P171-1001-00 202.2.2417.075 Catcher turning base plate P171-1006-00 4.11.04.050015 Buckle...
  • Page 34 Prize Catcher GMP Manual 9.13 Pointer Assembly Part No. Code No. Name Version Qty P171-1121-00 2.34.04.000102 DC motor P171-1102-00 202.2.2417.078 Pointer motor fixing plate P171-1103-00 202.2.2417.079 Axle plate P171-1113-00 201.06.000013 Bearing(608) P171-1108-00 202.2.2417.083 Side mounting plate P171-1120-00 2.33.13.000266 Wiring cover P171-1101-00 202.2.2417.077 Mechanism base bracket...
  • Page 35 Prize Catcher GMP Manual 9.14 L Prize Block Plate Part No. Code No. Name Version Qty P171-0502-00 202.2.2417.063 L block fixing plate P171-0501-00 206.2.2417.054 L block plate P171-0503-00 202.2.2417.064 L block strengthen plate 9.15 R Prize Block Plate Part No. Code No.
  • Page 36 Prize Catcher GMP Manual 9.16 Decals 07/03/2024...
  • Page 37 10 P171-1324-00 205.2.2417.108 Side top PVC 11 P171-1306-00 205.2.2417.104 L side glass 12 P171-0173-00 205.2.2417.103 Back board plastic 13 P171-0406-00 205.2.2417.102 R side glass 14 P171-1213-00 205.2.2417.101 Flip decal 15 P171-0208-00 205.2.2417.105 Control panel plastic 16 P171-1323-00 205.2.2417.107 UNIS plastic 07/03/2024...
  • Page 38 Prize Catcher GMP Manual 07/03/2024...
  • Page 39 Prize Catcher GMP Manual Part No. Code No. Name Version Qty P171-1622-00 2.56.00.000036 High voltage label(s) P171-1603-00 205.1.1605A.040 Adapter decal P171-1619-00 205.2.2417.119 Fuse board Instruction decal P171-1623-00 2.56.00.000037 High voltage label(l) P171-1624-00 2.56.00.000117 DBV warning decal P171-1618-00 205.2.2417.118 Setting panel decal P171-1625-00 2.56.00.000127A Power SW label...
  • Page 40 Prize Catcher GMP Manual 9.17 Electrical Components Part No. Code No. Name Version 129.92 in 1 P171-1511-00 2.20.02.020007 3535 RGB light strip (3300mm) 39.37 in 2 P171-1511-00 2.20.02.020007 3535 RGB light strip (1000mm) 3 P171-1522-00 2.23.06000022 Coin mechanism 32.48 in 4 P171-1507-00 2.20.02.020066 5050 RGB light strip (825mm)
  • Page 41 Prize Catcher GMP Manual Part No. Code No. Name Version 76.77 in 6 P171-1511-00 2.20.02.020007 3535 RGB light strip (1950mm) 129.92 in 7 P171-1511-00 2.20.02.020007 3535 RGB light strip (3300mm) 28.14 in 8 P171-1501-00 2.20.02.020046 2835 white light strip (715mm) 9 P171-1518-00 2.24.04.050029 Button 10 P171-1554-00 208.2.2417.005...
  • Page 42 Prize Catcher GMP Manual Part No. Code No. Name Version 129.92 in 1 P171-1511-00 2.20.02.020007 3535 RGB light strip (3300mm) 78.74 in 2 P171-1511-00 2.20.02.020007 3535 RGB light strip (2000mm) 23.62 in 3 P171-1511-00 2.20.02.020007 3535 RGB light strip (600*2mm) Part No.
  • Page 43 Prize Catcher GMP Manual Part No. Code No. Name Version Qty P171-1525-00 2.24.03.000001 Knob P171-1526-00 297.9.1400001 Knob board P171-1517-00 2.30.00000006 Counter P171-1524-00 2.26.01.000005 Rocket sw P171-1548-00 208.2.2417.001 Prizing sensor 07/03/2024...
  • Page 44 Prize Catcher GMP Manual Part No. Code No. Name Version Qty P171-1519-00 2.16.02.000117 Power supply(12V) P171-1514-00 2.16.02.000124 Power supply(5V) P171-0172-00 2.34.07.030004 Driver P171-1516-00 2.16.03.000076 Adapter P171-1532-00 2.17.14.000244 Fuse board P171-1515-00 4.11.00000002 Tilt alarm P171-1552-00 208.2.2417.004 Mainboard P171-1534-00 297.1.1208002 Mos drive board P171-1513-00 2.27.02.050017 P171-1506-00...
