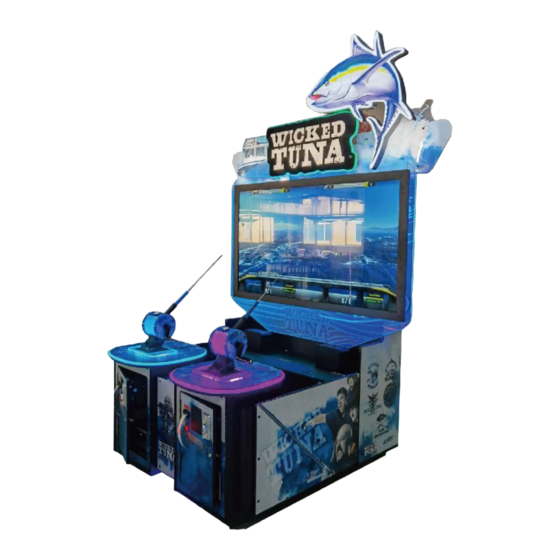

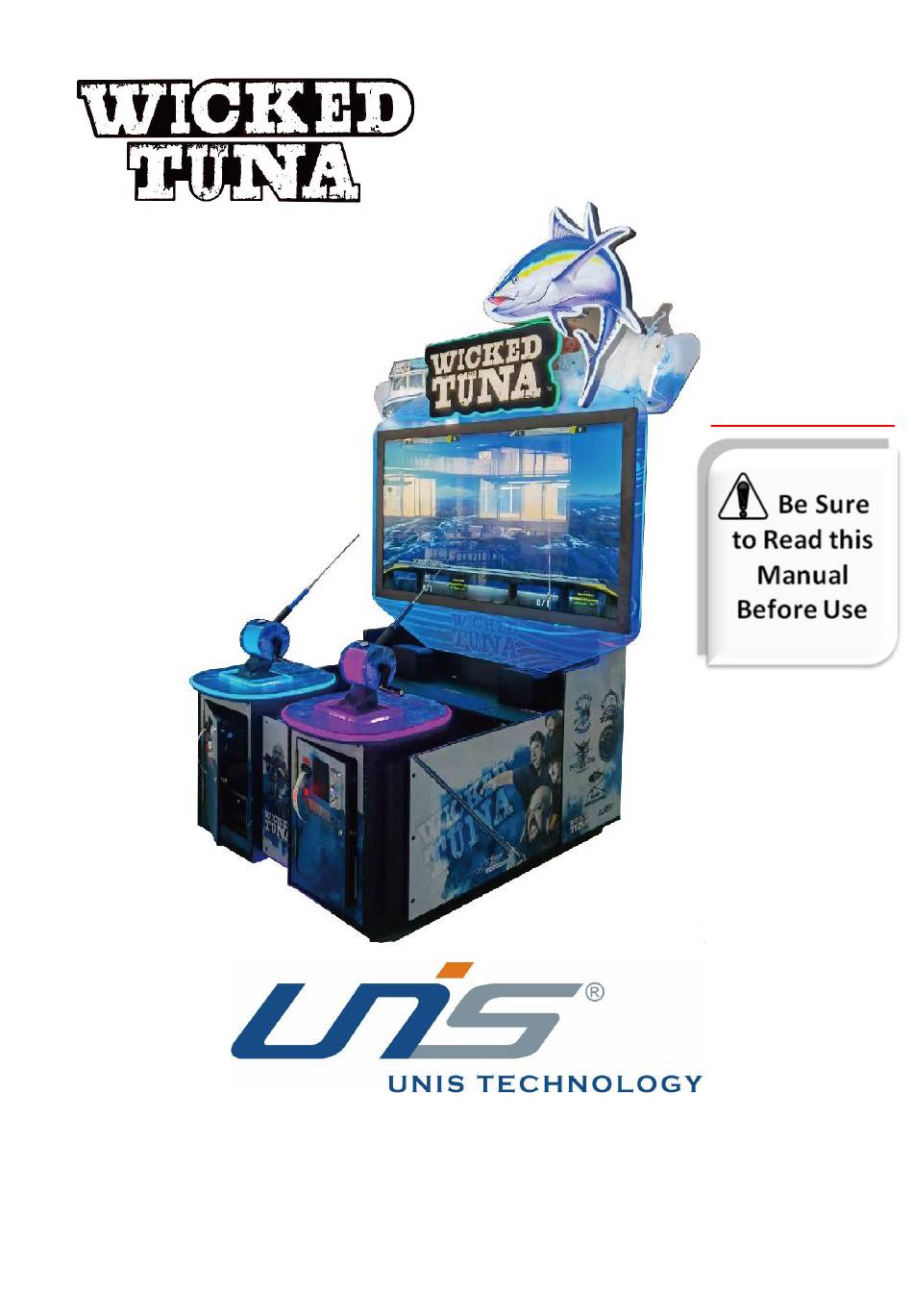

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Wicked Tuna 2P GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Wicked Tuna 2P GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ...................... 16 6.

  • Page 4: Important Safety Instructions

    Wicked Tuna 2P GMP Manual Thank you for purchasing Wicked Tuna 2P GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Wicked Tuna 2P GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors.

  • Page 6: Specifications

    Wicked Tuna 2P GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz; Min. Power consumption: 580W Max. Power consumption: 650W Dimension: H106.47 ×W48.52 ×D61.22 in H2704.3× W1232.4 ×D1555mm Model No: C-725 Part No: W122 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    Wicked Tuna 2P GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Part No. Code No. Name/SPEC Picture Power cord 1 W122-1002-00 2.33.01.010020 3×16AWG 1.8M Fuse(T10A) 2 W122-1003-00 2.19.01.000030B Ф5×20mm T10A 250VAC (PSE...

  • Page 8: Part Name

    Wicked Tuna 2P GMP Manual 3. PART NAME Key Components Marquee Assembly Monitor Fishing rod assembly Speaker Ticket dispenser Coin mechanism 04/22/2022...

  • Page 9: Set Up & Installation

    Wicked Tuna 2P GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 Wicked Tuna 2P GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 11 Wicked Tuna 2P GMP Manual 4.4 Machine Installation Before processing with assembly assure you have the following tools. Name Picture Phillips screwdriver Allen wrench Step 1 Utilize Phillips screwdriver to loosen the screws to remove all the assembly on the Wooden base.
  • Page 12 Wicked Tuna 2P GMP Manual Step 4 Install Fish marquee to the bracket. Fish marquee Bracket Cross recessed Name hexagon screw set Spec. M4×16 Step 5 Install Fish bracket to the back of the LOGO marquee. Utilize screws to secure the Fish bracket to the back of the LOGO marquee.
  • Page 13 Wicked Tuna 2P GMP Manual Step 7 Locate Cabinet front side. Loosen screws to turn up the Wiring box mounting plate. Install Fixing plate to the Wiring box mounting plate. Wiring box mounting plate Fixing plate Fixing plate Cross recessed...
  • Page 14 Wicked Tuna 2P GMP Manual Step 9 Install Cloth fixing board to the Base assembly. Cloth fixing board Cross recessed Name hexagon screw set Spec. M5×30 Step 10 Place Cloth to the Wiring box mounting plate and Control panel assembly. Utilize screws to secure the Cloth.
  • Page 15 Wicked Tuna 2P GMP Manual Step 9 Locate Control panel fishing rod. Loosen the nut and insert the Rod in. Install the nut back. Install the other side of rod to the Wiring box. Step 10 Install L&R fence to the Cabinet. Utilize screw to secure the L&R fence to the Cabinet.
  • Page 16 Wicked Tuna 2P GMP Manual Step 12 Install Connect board to the Control panel. Name Hexagon screw Spec. M5×30 Connect board Finish! 4.6 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader.

  • Page 17: How To Play

    Wicked Tuna 2P GMP Manual 5. HOW TO PLAY 5.1 Insert coins to play. Select game mode. 5.2 Select game level and captain. There are 5 captains to choose, each with different attribute. Strength(STR)：Affect line speed Experience(EXP)：Affect fish biting rate Speed (SPD)：Affect line speed...
  • Page 18 Wicked Tuna 2P GMP Manual 5.3 Press the CAST button to launch the rod. 5.4 Watch the Radar area. The fish icon in the Radar area represents different qualities of fish. The left color bar represents the quality of fish in the corresponding area. The color bar can be divided into blue, green and yellow.
  • Page 19 Wicked Tuna 2P GMP Manual 5.6 Catch the fish success will show the size and weight of the fish. If catch Tuna will be rated for meat quality. 04/22/2022...

  • Page 20: Game Option

    Wicked Tuna 2P GMP Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press Settings button to enter the setting menu. Settings Test Reset 6.2 Setting menu 6.2.1 Main menu Options...
  • Page 21 Wicked Tuna 2P GMP Manual Options Status Description Voice Over Volume P1 0-200 Alarm Sound Volume P1 0-200 Sound Effect Volume P2 0-200 Voice Over Volume P2 0-200 Alarm Sound Volume P2 0-200 Demo BGM ON/OFF Coins/Tap card/Coin&Tap Pay Mode...
  • Page 22 Wicked Tuna 2P GMP Manual 6.2.3 Input Test Coin in: Coin in: Cast: Cast: Rod: Rod: Rolling: Rolling: Back 6.2.4 Output Test Resistance: P1 Shake: P2 Shake: P1 Rod Power: P2 Rod Power: P1 Btn Light: P2 Btn Light: P1 Out Ticket:...
  • Page 23 Wicked Tuna 2P GMP Manual 6.2.8 Game Reset Options Reset Game Factory Clear Records Clear Tickets Clear Coins Clear Rod Calibration Back 6.2.9 Bookkeeping Player Coins Out Tickets Return Rate(Tickets/Pay) Back 04/22/2022...

  • Page 24: Troubleshooting

    Wicked Tuna 2P GMP Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service.
  • Page 25 Wicked Tuna 2P GMP Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action Rod is not calibrate. Re-calibrate the Rod. The connection part of Check and reconnect the loose the IO board and PC ports of the PC or IO board.
  • Page 26 Wicked Tuna 2P GMP Manual 7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove the recovery stick from the machine. (Note: This process may take up to 60 minutes) Insert the recovery stick into the port at the back of the computer.

  • Page 27: Maintenance & Inspection

    Wicked Tuna 2P GMP Manual 8.MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.
  • Page 28 Wicked Tuna 2P GMP Manual Step 2 Locate Sensor. Unplug the connector. Loosen the sensor screw to remove Senor. Replace it with new Sensor and install it in reversed order. Sensor Screw 8.4 Fish Rod Assembly Shaking Motor Replacement Instruction Step 1 Loosen the screw to remove L cover plate.
  • Page 29 Wicked Tuna 2P GMP Manual Step 3 Loosen nuts to remove Shaking motor. Shaking motor Shaking motor plate Step 4 Replace it with new Motor and install it in reversed order. 8.5 Rod Replacement Instruction Step 1 Locate Control panel fishing rod. Loosen the nut and remove the Rod.
  • Page 30 Wicked Tuna 2P GMP Manual 8.6 Speaker Replacement Instruction Step 1 Locate Speaker. Loosen the side nut to remove Speaker. Unplug the connectors. Speaker Connector Step 2 Replace it with new Speaker and install it in reversed order. 8.7 Fishing Rod Assembly Replacement Instruction Step 1 Locate Control panel fishing rod.
  • Page 31 Wicked Tuna 2P GMP Manual Step 3 Loosen screws on the Rubber fixing plate. Lift the Leather up. Step 4 Loosen screws on the Upper light plastic. Remove Ctrl.panel plate. 04/22/2022...
  • Page 32 Wicked Tuna 2P GMP Manual Step 5 Loosen screws on the Rotation plate. Open the service door and unplug Fishing rod assembly connector. Take Fishing rod assembly out. Control panel Fishing rod assembly assembly Fishing rod assembly Rotation plate Step 6 Replace it with new control panel assembly and install it in reversed order.
  • Page 33 Wicked Tuna 2P GMP Manual Screw Step 3 Remove screws to remove motor plate. Remove Driving wheel nut to remove motor. Motor Driving wheel Motor 04/22/2022...
  • Page 34 Wicked Tuna 2P GMP Manual Step 4 Replace it with new motor and install it in Step 3 reversed order. Step 5 Install Motor assembly back to the Fishing rod assembly. Utilize screw to secure Motor assembly a bit(DO NOT TIGHTEN).
  • Page 35 Wicked Tuna 2P GMP Manual Step 7 After adjusting, tighten the screws back. Screw Step 8 The rest installation please refer to step 1-3 in reversed order. 8.9 Light Strip Replacement Instruction Step 1 Loosen screws to remove connect board.
  • Page 36 Wicked Tuna 2P GMP Manual Step 2 Open service door and unplug the light strip connector. Loosen screws to remove the Connect plate with light strip. Connect plate Connect plate with light strip Step 3 Loosen screws to remove Base light plastic. Remove light strip.

  • Page 37: Overall Construction

    Wicked Tuna 2P GMP Manual 9. OVERALL CONSTRUCTION 9.1 General Assembly Part No. Code No. Name Version Qty W122-0001-00 202.4.2170.001 Ctrl. panel connect plate W122-0002-00 203.4.2170.006 Front cover board W122-0003-00 202.4.2170.002 Side connect plate W122-0004-00 202.4.2170.003 Wiring box plate W122-0005-00 2.51.08.070009...
  • Page 38 Wicked Tuna 2P GMP Manual 9.2 Monitor Assembly Part No. Code No. Name Version Qty W122-0602-00 202.4.2170.030 Monitor bottom light plastic W122-0603-00 202.4.2170.008 Up&Down plate W122-0604-00 202.4.2170.009 L&R plate W122-0605-00 202.4.2170.031 Monitor L light plastic W122-0606-00 206.4.2170.008 Monitor protect glass W122-0607-00 202.4.2170.029...
  • Page 39 Wicked Tuna 2P GMP Manual 9.3 LOGO Marquee Part No. Code No. Name Version Qty 1 W122-0802-00 206.4.2170.006 LOGO marquee bottom light plastic 2 W122-0803-00 206.4.2170.007 LOGO marquee L light plastic 3 W122-0804-00 205.4.2170.001/1 LOGO marquee plastic 4 W122-0805-00 206.4.2170.014...
  • Page 40 Wicked Tuna 2P GMP Manual 9.4 L&R Marquee Part No. Code No. Name Version Qty W122-0702-00 205.4.2170.003/1 L Andy board W122-0703-00 205.4.2170.005/1 Boat plastic W122-0704-00 205.4.2170.006/1 Water drop PVC W122-0705-00 205.4.2170.004/1 R Andy board W122-0706-00 201.08.04.4008 Isolation column W122-0707-00 202.4.2170.027...
  • Page 41 Wicked Tuna 2P GMP Manual 9.6 Cabinet Assembly Part No. Code No. Name Version Qty W122-0902-00 203.4.2170.002 Cloth bottom board W122-0903-00 203.4.2170.022 Wiring box mounting plate W122-0508-00 2.63.00.000001 4'' hinge W122-0904-00 203.4.2170.016 Speaker bottom board W122-0905-00 203.4.2170.018 Top board W122-0906-00 202.4.2170.006...
  • Page 42 Wicked Tuna 2P GMP Manual Part No. Code No. Name Version Qty W122-0914-00 203.4.2170.015 Monitor support board W122-0915-00 203.4.2170.020 Back bottom door W122-0916-00 203.4.2170.011 Back base board W122-0917-00 2.60.00010000 Caster plate W122-0512-00 2.60.00008000 Leveller W122-0511-00 2.55.01.000047 2.5'' caster W122-0919-00 203.4.2170.001...
  • Page 43 Wicked Tuna 2P GMP Manual 9.8 Control Panel Assembly Part No. Code No. Name Version Qty W122-0102-00 202.4.2142.013 Ctrl. panel bottom plate W122-0103-00 205.4.2142A.009 Ctrl. panel upper light plastic W122-0104-00 202.4.2142.015 Rubber fixing plate W122-0105-00 202.4.2142.012 Ctrl. panel upper plate W122-0106-00 202.4.2142.016...
  • Page 44 Wicked Tuna 2P GMP Manual Part No. Code No. Name Version Qty W122-0111-00 202.4.2142.010 Front&back protective plate W122-0112-00 2.60.00006000 Ticket box W122-0113-00 2.60.00044000 Counter bracket W122-0114-00 2.60.00065000 Out of ticket light cover W122-0115-00 2.60.00051000 Ticket cover W122-0116-00 206.4.2142.007 Reflection PVC W122-0117-00 202.4.2002.028...
  • Page 45 Wicked Tuna 2P GMP Manual 9.9 Fishing Rod Assembly Part No. Code No. Name Version Qty W122-0202-00 202.4.2142.017 Fishing base plate W122-0203-00 201.06.16.0005 Toothless slewing bearing W122-0214-00 202.4.2142.054 R cover plate W122-0215-00 2.51.00.080028 Hole cover ABS W122-0216-00 206.4.2142.011 Gum cover W122-0218-00 202.4.2142.053...
  • Page 46 Wicked Tuna 2P GMP Manual Part No. Code No. Name Version Qty W122-0251-00 202.4.2142.055 L cover plate W122-0252-00 202.4.2142.061 POT mounting plate B W122-0253-00 202.4.2142.050 POT mounting plate A W122-0254-00 206.4.2142.019 Anti-shake pad W122-0255-00 202.4.2142.056 Shaking motor plate W122-0256-00 2.34.04.000246...
  • Page 47 Wicked Tuna 2P GMP Manual 9.11 Fishing Rod Clutch Assembly Part No. Code No. Name Version Qty W122-0237-00 202.4.2142.033 Fishing rod mounting plate W122-0238-00 202.4.2142.040 L side mounting plate W122-0239-00 202.4.2142.038 Support rod W122-0240-00 202.4.2142.039 Flat key C W122-0241-00 2.34.13.000002A...
  • Page 48 Wicked Tuna 2P GMP Manual 9.12 Fishing Rod Rolling Wheel Assembly Part No. Code No. Name Version Qty W122-0225-00 202.4.2142.027 Bearing plate B W122-0226-00 201.06.000083 Deep groove ball bearing W122-0227-00 202.4.2142.028 Transit axle W122-0228-00 202.4.2142.029 Transit large wheel W122-0229-00 202.4.2142.112...
  • Page 49 Wicked Tuna 2P GMP Manual 9.13 Fishing Rod Motor Assembly Part No. Code No. Name Version Qty W122-0221-00 2.34.04.000249 DC motor W122-0222-00 202.4.2142.031 Motor plate W122-0223-00 202.4.2142.032 Driving wheel 04/22/2022...
  • Page 50 Wicked Tuna 2P GMP Manual 9.14 Decal Part 04/22/2022...
  • Page 51 Wicked Tuna 2P GMP Manual Part No. Code No. Name Version Qty W122-0703-00 205.4.2170.005/1 Boat plastic W122-0702-00 205.4.2170.003/1 L Andy board W122-0804-00 205.4.2170.001/1 LOGO marquee plastic W122-1241-00 2.56.00.000034A Ticket decal W122-1219-00 205.4.2142A.021 R side rotation PVC W122-1231-00 205.4.2170.012/1 L back side PVC W122-1229-00 205.4.2170.010/1...
  • Page 52 Wicked Tuna 2P GMP Manual 04/22/2022...
  • Page 53 Wicked Tuna 2P GMP Manual Part No. Code No. Name Version Qty W122-1221-00 2.56.00.000001 Coin counter W122-1222-00 2.56.00.000002 Ticket counter W122-1224-00 2.56.00.000009 Test button decal W122-1223-00 2.56.00.000006 Reset button decal W122-1225-00 2.56.00.000092 Settings button decal W122-1216-00 2.56.00.000093 Dongle decal W122-1218-00 2.56.00.000096...
  • Page 54 Wicked Tuna 2P GMP Manual 9.15 Electrical Component Part No. Code No. Name Version W122-0008-00 205.4.2170.002/1 Fish marquee W122-1135-00 2.20.02.020029 2835 white light strip 106.29in (2700mm) W122-1134-00 2.20.02.020031 5050 RGB light strip 82.67in (2100mm) W122-1135-00 2.20.02.020029 2835 white light strip 47.44in (1205mm)
  • Page 55 Wicked Tuna 2P GMP Manual Part No. Code No. Name Version Qty W122-1132-00 2.27.02.000010 Fan net W122-1133-00 2.27.02.020006 W122-1136-00 2.33.01.018002 Power cord W122-1111-00 2.33.07.050011 DP-DVI video cable Part No. Code No. Name Version Qty W122-1165-00 2.16.02.000160 Chassis kit of 86'' monitor W122-1162-00 2.17.14.000261...
  • Page 56 Wicked Tuna 2P GMP Manual Part No. Code No. Name Version Qty W122-1141-00 2.16.02.000105 24V power supply W122-1142-00 2.17.14.000243 Fuse board(24V) W122-1140-00 2.16.02.000106 12V power supply W122-1143-00 2.17.14.000244 Fuse board(12V) W122-1139-00 297.9.0300007A U6 mainboard W122-1128-00 4.13.00000008 Recovery stick W122-1148-00 2.11.09.000014...
  • Page 57 Wicked Tuna 2P GMP Manual Part No. Code No. Name Version W122-1131-00 2.23.01000002 Coin mechanism W122-1130-00 2.31.00000005 Ticket dispenser W122-1129-00 2.20.03.000003 Out of ticket light W122-1152-00 2.22.01.000028 Light socket W122-0221-00 2.34.04.000249 DC motor W122-1112-00 2.30.00000006 Counter W122-1107-00 2.24.02.010002 Button(red) W122-1108-00 2.24.02.030002...
  • Page 58 Wicked Tuna 2P GMP Manual Fishing Rod Rolling Wheel Assembly Part No. Code No. Name Version W122-0221-00 2.34.04.000249 DC motor W122-1118-00 2.25.01000030 Part No. Code No. Name Version Qty W122-1104-00 2.26.01.000005 Rocket SW W122-1102-00 2.19.02.000006 Fuse W122-1103-00 2.32.01000001A Filter W122-1119-00 2.33.02.000001...
  • Page 59 Wicked Tuna 2P GMP Manual Part No. Code No. Name Version Qty W122-1126-00 2.11.02000094 W122-1153-00 2.66.01.120315 Mainboard W122-1154-00 2.11.07.190017 W122-1155-00 2.11.07.070003 CPU fan W122-1156-00 2.66.01.090508 Hard disk W122-1157-00 2.11.07.030102 Video card W122-1158-00 2.11.07.170012 PC power supply W122-1159-00 2.66.01.120236 PC case W122-1160-00 2.66.01.120235...
  • Page 60 Wicked Tuna 2P GMP Manual Part No. Code No. Name Version Qty W122-0005-00 2.51.08.070009 Wiring box W122-1122-00 2.28.06.010007 Speaker W122-0012-00 206.4.2002.026 www.unistechnology.com 04/22/2022...

  • Page 61: Wiring Diagram

    Wicked Tuna 2P GMP Manual 10. WIRING DIAGRAM 04/22/2022...
  • Page 62 Wicked Tuna 2P GMP Manual 04/22/2022...
