UNIS TOY BOX Operation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
IMPORTANT
Operation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the TOY BOX and is the answer not in the manual?

Questions and answers

Related Manuals for UNIS TOY BOX

Summary of Contents for UNIS TOY BOX

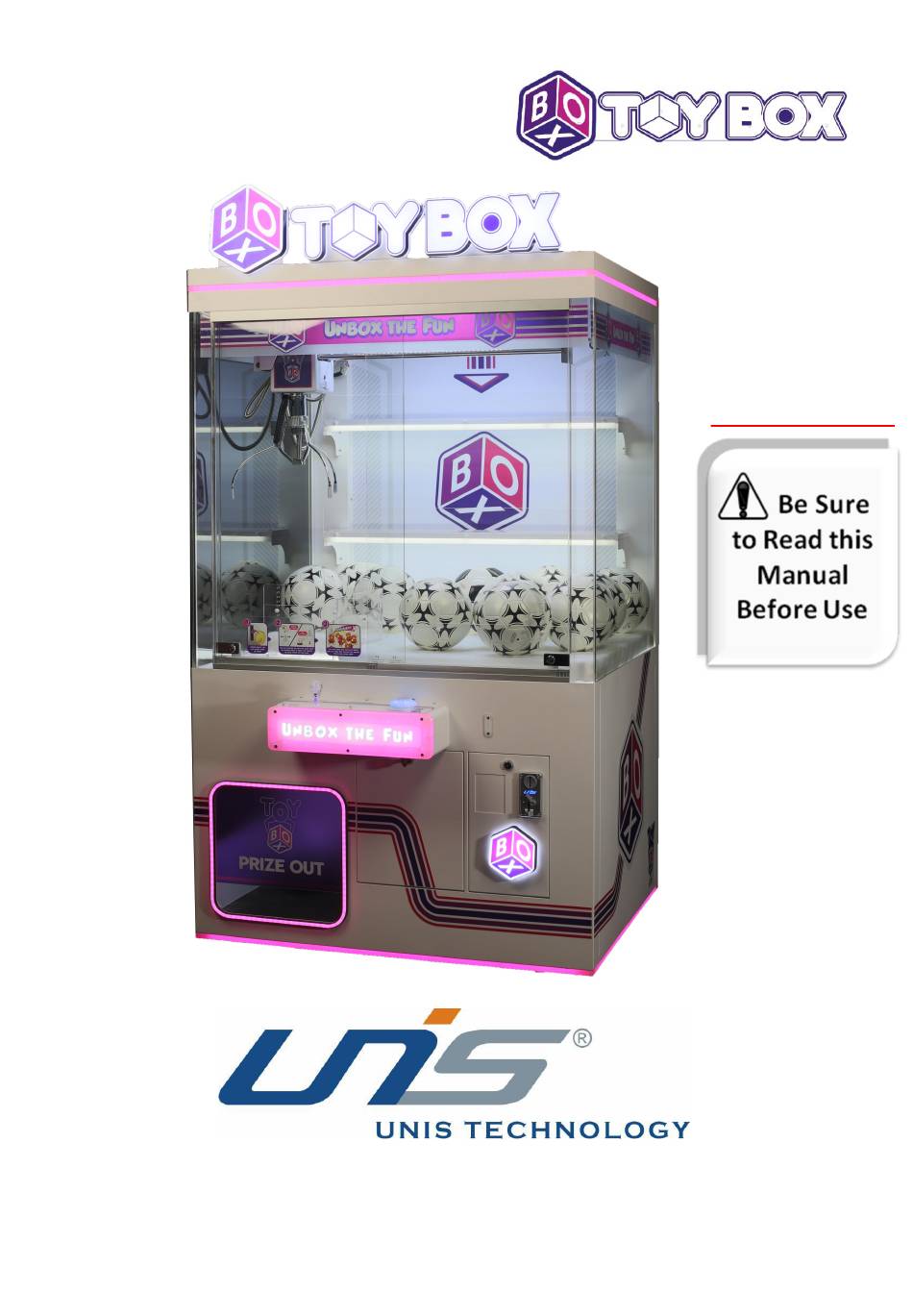

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Toy Box XL GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Toy Box XL GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ...................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. LOCATION OPERATION INSTRUCTIONS ..............11 6. HOW TO PLAY ......................12 7.

  • Page 4: Important Safety Instructions

    Toy Box XL GMP Manual Thank you for purchasing Toy Box XL GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Toy Box XL GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors.

  • Page 6: Specifications

    Toy Box XL GMP Manual 1. SPECIFICATIONS Rated power supply: AC 110V 50/60Hz; AC 220V 50/60Hz; Min. Power consumption: 145W Max. Power consumption: 290W Dimension: H90.45×W47.20×D44.40 in H2297×W1199 ×D1128mm Weight：Approximately 352.73lb/160 KG Model No: T-411 Part No.: T170 NOTICE : After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    Toy Box XL GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Part No. Code No. Name/SPEC Picture Power cord T170-0304-00 2.33.01.018024 3×18AWG 3M Fuse(T5A) T170-0305-00 2.19.01.000012 Φ5×20mm T5A/250VAC T170-0301-00 2.53.00608837...

  • Page 8: Part Name

    Toy Box XL GMP Manual 3. PART NAME Key Components Marquee Assembly Crane Joystick Button Coin mechanism Prize Out Slot 03/29/2024...

  • Page 9: Set Up & Installation

    Toy Box XL GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 Toy Box XL GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in NOTICE Your unit must be leveled to operate properly.

  • Page 11: Machine Installation

    Toy Box XL GMP Manual 4.4 Machine Installation Step 1 Install LOGO marquee to the top of the cabinet. Utilize screws to secure. Finish! 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader.

  • Page 12: Location Operation Instructions

    Toy Box XL GMP Manual 4.6 Voltage Conversion Step 1 Power off the machine. Locate the Power supply. Step 2 Toggle the Power supply and PC switch to 115V or 230V according to your need. 5. LOCATION OPERATION INSTRUCTIONS 5.1 First Power On Operation Step 1.

  • Page 13: How To Play

    Toy Box XL GMP Manual 6. HOW TO PLAY 6.1 Insert coins or tap/swipe card to start. 6.2 Use the joystick to move the claw over the desired prize & press “TAP” button to grab within the time limit. 6.3 Win any prize that the claw drops into the prize box player can collect prize from prize door.

  • Page 14: Game Option

    Toy Box XL GMP Manual 7. GAME OPTION 7.1 Adjustment button instruction Open the coin door and there is a meter panel. Long press Service button for 5 seconds to enter the setting menu. Utilize Joystick to control setting menu UP/DOWN/LEFT/RIGHT. Press button to confirm&...
  • Page 15 Toy Box XL GMP Manual 7.2.3 Crane Setup Options Adjustable Range Default Description Set the voltage at the bottom of the claw BOM Volt. 0.1-50.0 to grab the prize and when rising. Sets the voltage of the claw claw after MID Volt 0.1-50.0...
  • Page 16 Toy Box XL GMP Manual Options Adjustable Range Default Description OFF: The claw cannot be closed by pressing the button again before it lower to the bottom. Air Grip ON/OFF ON: The claw can be closed by pressing the button again before it lower to the...
  • Page 17 Toy Box XL GMP Manual 7.2.5 Light Setup Options Adjustable Range Default Description LED Color 0-255 Standby light color S-MO/E-MO/M-CO/ LED Mode F-RU/F-FL/F-CO/F- STAT Standby light flash mode MO/Start Win Color 0-255 Winning light color FLK/FSG/STA/SLK Win Color Winning light flash mode...
  • Page 18 Toy Box XL GMP Manual 7.2.7 Factory Test Options Status Description Intelligt Auto Test: Long press button for 10s to Test exit 1. F-B Test 2. L-R Test Console 3. U-D Test Test 4. Claw Test 5. Back and Exit...
  • Page 19 Toy Box XL GMP Manual 7.3 How To Set “Play To Win Every Time” Feature Please change below parameters in “Prize Setup” option Prize Setup Options Parameter Prize Payout Finish! 03/29/2024...

  • Page 20: Troubleshooting

    Toy Box XL GMP Manual 8. TROUBLESHOOTING 8.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service.
  • Page 21 Toy Box XL GMP Manual Display Possible Cause Recommended action Check and reconnect the Crane Connector became loose during transport. connector. Error 02 The crane track is bent and stuck. Fix track. (Check Back Crane motor is faulty. Replace Crane motor.
  • Page 22 Toy Box XL GMP Manual 8.2 Mainboard Update Instructions Notice: Please Contact UNIS Service for latest software. Step 1 Power off the machine. Open the back bottom door. Loosen screws to rmeove mainboard. Step 2 Decompress HIDBootloader.zip. Double click to open the software.
  • Page 23 Toy Box XL GMP Manual Step 2 Connect Type-C cable to the PC. Step 3 Connect Type-C cable to the Mainboard MCU port while pressing Test button. Cable port Press button when connect PC 03/29/2024...
  • Page 24 Toy Box XL GMP Manual Step 4 Locate PC. Select “打开固件”(Open Software). Select latest software(Bin. format). Note: Picture software is only for reference. 03/29/2024...
  • Page 25 Toy Box XL GMP Manual Step 5 Select “升级固件” (Update Software) to update mainboard. Step 6 When you see “ (Success)”, Update finish! Unplug the mainboard. Step 7 Install Mainboard back to the machine. Power on the machine. Finish! 03/29/2024...
  • Page 26 Toy Box XL GMP Manual 8.3 Claw Adjustment Instructions Step 1 Power off the machine. Open glass door. Step 2 Locate Crane claw. Lift up the claw. Press the button and turn the wheel plate to adjust claw width. Button...

  • Page 27: Maintenance & Inspection

    Toy Box XL GMP Manual 9.MAINTENANCE & INSPECTION 9.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.

  • Page 28: Overall Construction

    Toy Box XL GMP Manual 10.OVERALL CONSTRUCTION 10.1 General Assembly 03/29/2024...
  • Page 29 Toy Box XL GMP Manual Part No. Code No. Name Version Qty T170-0225-00 205.2.2382.001 LOGO light character T170-0028-00 203.2.2315.012 Top board T170-0011-00 206.2.2315.131 Top front rear plastic T170-0016-00 206.2.2315.136 Top left rear plastic T170-0012-00 206.2.2315.132 Side glass T170-0019-00 206.2.2315.137 Positioning plastic T170-0048-00 206.2.2315.130...
  • Page 30 Toy Box XL GMP Manual Part No. Code No. Name Version Qty T170-0010-00 206.2.2315.068 Placing bracket front plastic T170-0008-00 206.2.2315.066 Placing bracket plastic T170-0009-00 206.2.2315.067 Placing white plastic T170-0025-00 206.2.2315.155 Prize area pad board T170-0004-00 206.2.2315.126 Prize base plastic T170-0003-00 206.2.2315.125...
  • Page 31 Toy Box XL GMP Manual 10.2 Decals 03/29/2024...
  • Page 32 Toy Box XL GMP Manual Part No. Code No. Name Version Qty T170-0225-00 205.2.2382.001 LOGO light character T170-0214-00 205.2.2315.310 Crane decal T170-0216-00 205.2.2315.312 Button decal T170-0227-00 205.2.2382.003 Back board PVC T170-0201-00 205.2.2315.301 Control panel plastic T170-0218-00 205.2.2315.314 Remove warning label T170-0230-00 205.2.2382.006...
  • Page 33 Toy Box XL GMP Manual 03/29/2024...
  • Page 34 Toy Box XL GMP Manual Part No. Code No. Name Version Qty T170-0205-00 2.56.00.000036 High voltage label(s) T170-0203-00 205.1.1605A.040 Adapter decal T170-0223-00 205.2.2315.321 Mainboard cover decal T170-0221-00 205.2.2382.012 Fuse board instructions label T170-0220-00 205.2.2382.011 Wiring decal T170-0237-00 2.56.00.000127A Power SW label T170-0236-00 2.56.00.000126A...

  • Page 35: Electrical Components

    Toy Box XL GMP Manual 10.3 Electrical Components 03/29/2024...
  • Page 36 Toy Box XL GMP Manual Part No. Code No. Name Version 1 T170-0225-00 205.2.2382.001 LOGO light character 2 T170-0108-00 2.20.02.020007 3535 RGB light strip 118.11 in (3000mm) 3 T170-0107-00 2.20.02.020029 2835 white light strip 37.40 in (950mm) 4 T170-0110-00 2.24.04.050047 Crane set 5 T170-0102-00 2.17.04.000260...
  • Page 37 Toy Box XL GMP Manual Part No. Code No. Name Version 1 T170-0121-00 2.24.04.050029 Tap button 2 T170-0111-00 2.66.01.121180 Mini screen set 3 T170-0124-00 2.24.04.050035 Joystick 4 T170-0104-00 2.23.06000022 Coin mechanism 5 T170-0213-00 205.2.2315.307 Front square light UNBOX THE FUN Character 6 T170-0212-00 205.2.2315.306...
  • Page 38 Toy Box XL GMP Manual Part No. Code No. Name Version 1 T170-0109-00 2.66.01.121183 Sensor set 2 T170-0114-00 4.11.00000002 Tilt alarm T170-0128-00 2.27.02.050017 T170-0129-00 2.27.02.000010 Fan net 4 T170-0107-00 2.20.02.020029 2835 white light strip 1.1 (3700mm) 03/29/2024...
  • Page 39 Toy Box XL GMP Manual Part No. Code No. Name Version 1 T170-0117-00 2.30.00000006 Counter 2 T170-0119-00 2.26.01.000005 Rocket switch T170-0115-00 2.24.02.030002 Button(green) T170-0116-00 2.24.02.050001 Button(black) 4 T170-0112-00 2.17.01.000040 Mainboard 5 T170-0118-00 2.17.14.000243 Fuse board 6 T170-0103-00 2.16.03.000076 Adapter 03/29/2024...
  • Page 40 Toy Box XL GMP Manual Part No. Code No. Name Version 1 T170-0113-00 2.16.02.000124 Power supply(5V) 2 T170-0122-00 2.16.02.000174 Power supply(48V) 3 T170-0101-00 2.16.02.000117 Power supply(12V) Part No. Code No. Name Version 1 T170-0105-00 2.32.01000005 Filter 2 T170-0131-00 2.33.02.000001 Network port www.unistechnology.com...

This manual is also suitable for:

T-411
